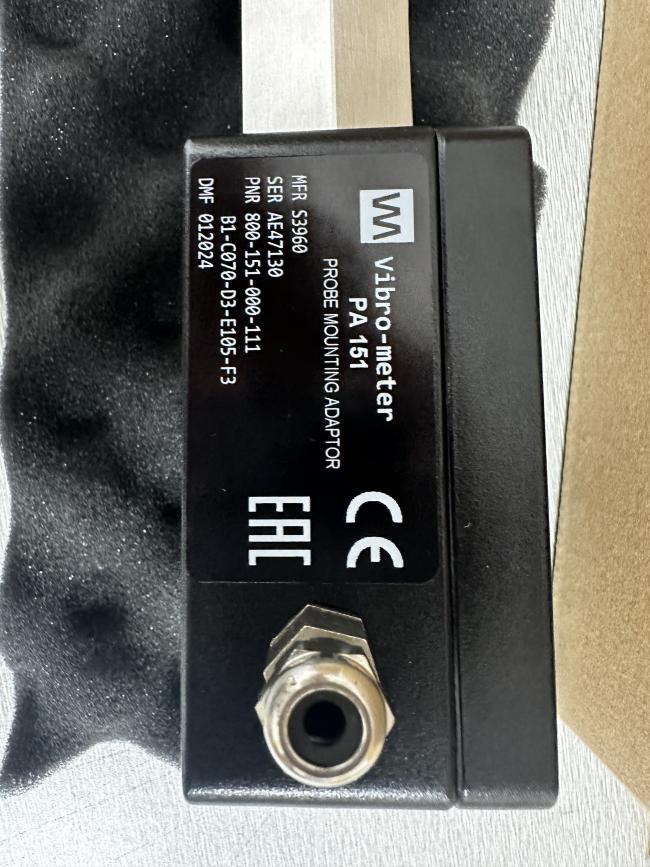

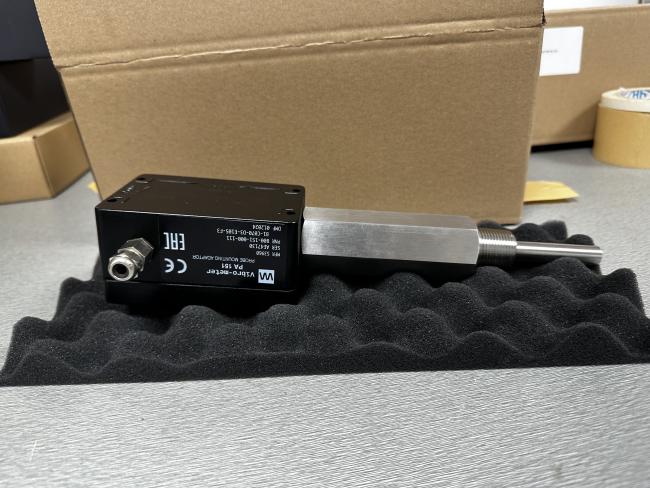

PA151 800-151-000-111 B1-C070-D3-E105-F3 Probe Mounting Adaptor
PA151 800-151-000-111 B1-C070-D3-E105-F3 probe mounting adaptor
Product Details:
The PA151 probe mounting adaptor is designed for use with TQxxx proximity measurement chains/ systems, from Meggitt’s vibro-meter® product line.

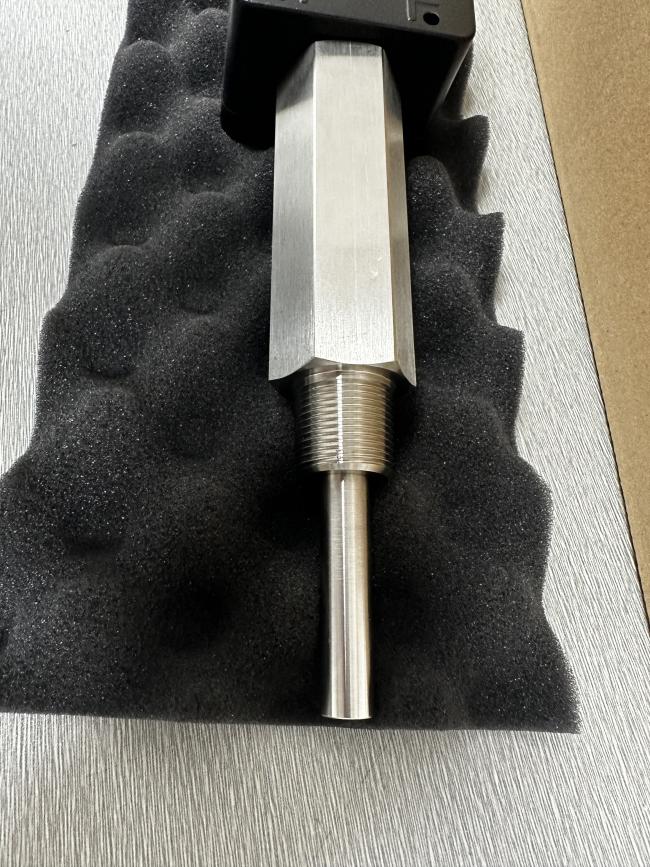

This configuration features an M10 × 1 sensor thread and a 70 mm rod length, providing compact and precise installation.
The adaptor thread is 3/4" NPT, commonly used in North American instrumentation systems.
It includes a 105 mm adaptor length, suitable for deeper sensor insertion in protective housings.
The left and right cable fittings use combination M12 × 1.5 glands, supporting Ø2 to 4 mm cables with Ø6 to 8 mm protection hose, ensuring environmental sealing and strain relief.
Note:For detailed information, please refer to the PDF document.

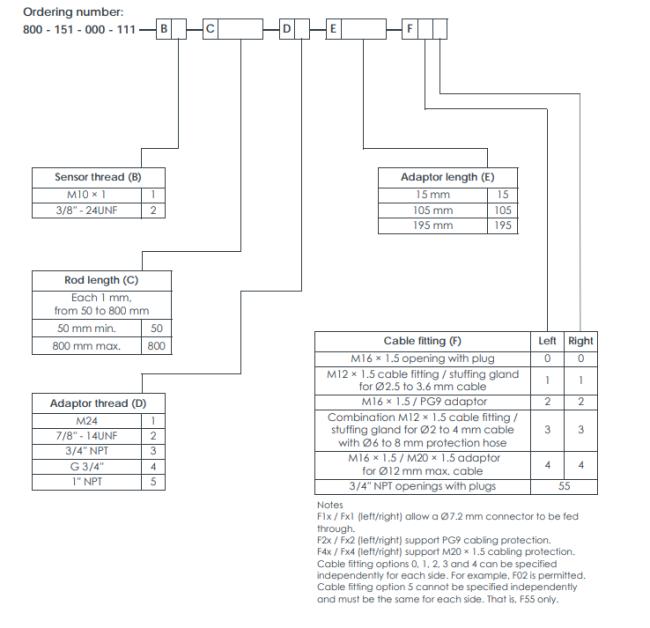

| Field | Description | Code | Specification |
|---|---|---|---|
| B | Sensor Thread | 1 | M10 × 1 |
| C | Rod Length | 070 | 70 mm |
| D | Adaptor Thread | 3 | 3/4" NPT |
| E | Adaptor Length | 105 | 105 mm |
| F | Cable Fitting (Left/Right) | 3 | Combination M12 × 1.5 cable fitting / stuffing gland for Ø2–4 mm cable with Ø6–8 mm protection hose |
