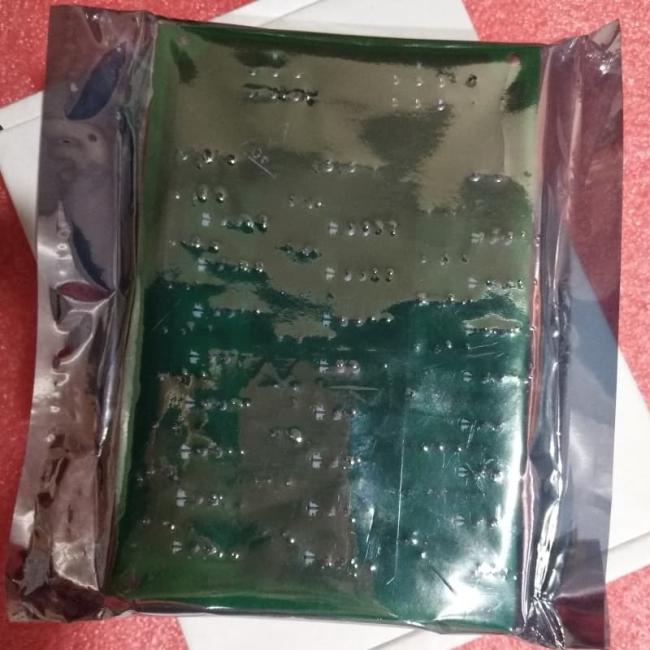

The GE IS200JPDHG1AAA is a High-Density Power Distribution Card, part of the Mark VI Turbine Control System used in wind, gas, and steam turbine control. It distributes 28V DC power, supplying up to 24 Mark VIe I/O packs and 3 Ethernet switches. Multiple units can connect in a daisy-chain for expanded power.

Compatible with products like IS210SAMBH1A, it works in hazardous and non-hazardous locations, complying with UL 508A, CSA 22.2 No. 14, and EN 61010-1. It features 29 female pin connectors, with inputs via a 6-pin Mate-N-Lok and outputs for switches and I/O packs.

Features:
1.Power Distribution: Delivers 28V DC to 24 I/O packs and 3 Ethernet switches; expandable via daisy-chained multiple units.

2.Circuit Protection: Each I/O pack connector has a PTC fuse to limit overcurrent, safeguarding connected devices.

3.Installation: Mounts on vertical surfaces with #6 screws; uses Mate-N-Lok connectors as specified.

4.Connector Ratings: 6-pin and larger 2-pin connectors handle 600V/13A; smaller 2-pin ones (I/O packs) handle 600V/0.8A.

5.Safety Compliance: Meets UL 508A, CSA 22.2 No. 14, and EN 61010-1 standards for industrial safety.

6.Compatibility: Works with Mark VI series products like IS210SAMBH1A, IS42yPDASH1A, and IS42yYDASS1A.
