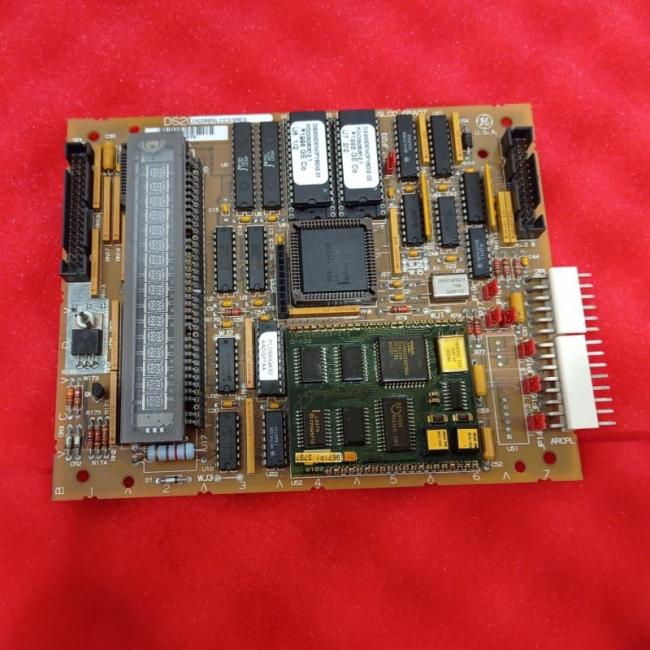

GE DS200SLCCG3A LAN Communication Card 330mm x 200mm

GE DS200SLCCG3A LAN Communication Card

Product Details:

The GE DS200SLCCG3A is a LAN (Local Area Network) Communication Board belonging to GE’s Mark V Turbine Control System—a legacy series now obsolete due to manufacturing discontinuation post-launch, but notable as one of the final GE Mark lines to integrate patented Speedtronic control technology. Designed for wind, steam, and gas turbine drive control systems, it is a revised variant of the original DS200SLCCG3 parent board, incorporating an A-rated functional revision that distinguishes it from the base model.

Functionally, it serves as a universal LAN interface for a wide range of GE drives and exciters, providing both isolated and non-isolated communication circuits to process incoming/outgoing LAN signals. At its core is a LAN Control Processor, whose software is stored in two replaceable EPROMs; it also includes dedicated LCP RAM and dual-ported RAM for seamless communication with the Drive Control Processor on the DS215SDCC Drive Control Card via the 3PL connector. It connects to other key boards through a 2PL connector and features an attachable programmer module with a 16-position alphanumeric display and keypad—enabling users to adjust software settings, perform diagnostic tests, and read fault codes.

Key Features:
Dual-System Compatibility: Works with GE’s Mark V Turbine Control System and EX2000 gas turbine control systems, leveraging Speedtronic technology for reliable turbine drive communication.

Dual-Circuit Communication: Offers both isolated and non-isolated circuits, ensuring signal integrity across diverse drive/exciter setups.

Integrated Processing & Memory: LCP (U1) with replaceable EPROMs (software storage) and dedicated RAM ensures smooth LAN signal processing; dual-ported RAM enables seamless data exchange with the DCP.

User-Friendly Diagnostics: Attachable programmer module with alphanumeric display and keypad simplifies software adjustments, diagnostics, and fault code reading.
