GE DS200UCPBG5AFB PC Board Mark V Turbine Control with 7-Switch Block 34-Pin Connector and COM1 Terminal Interface

GE DS200UCPBG5AFB PC Board Mark V Ge Turbine Control

Product Details:

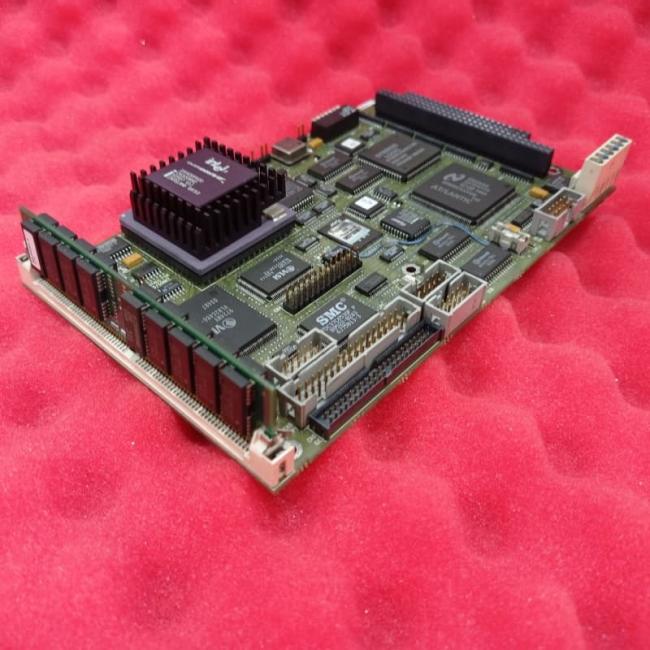

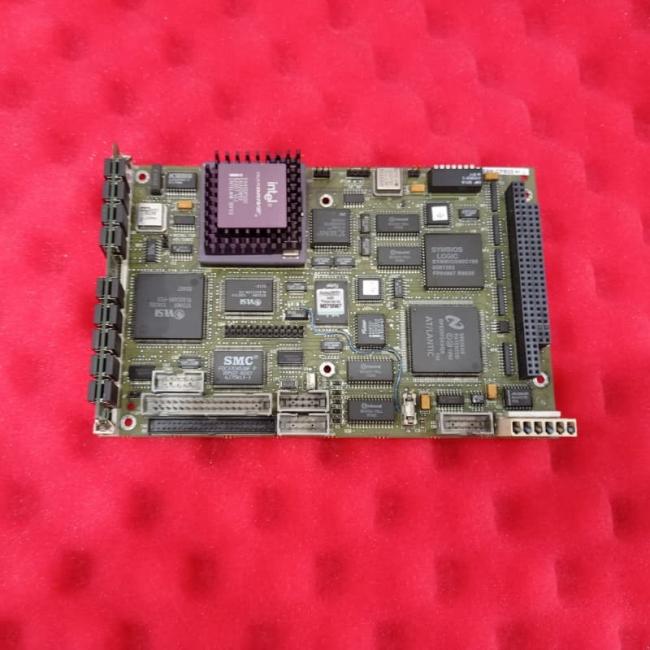

The GE DS200UCPBG5AFB is a key PCB for the Mark V Series, featuring a microprocessor, multiple PROM modules, 1 DIMM connector, 1 7-switch block, and 1 34-pin connector, along with another board-attachment connector and microprocessor-accessible RAM.

It has three hardware jumpers (JP1, JP2, JP3) – JP1 and JP3 are vestigial for factory testing, while JP2 is customizable for 486 local bus speed selection. Various connectors include ARCNET COREBUS, COM1 Terminal Interface Monitor, J1/J3 STCA Board Bus, IDE, and COM2; IDE and COM2 are unused in normal function. The DIMM connector is empty in replacements, requiring careful DIMM transfer from old boards (per GE manuals). It integrates a PCM daughterboard solely for communicating with FMVED motor controllers, without gaining special modular status. Identifiable by functional components, it ensures reliable operation in Mark V systems.
