Woodward 5464-545 Discrete I/O Module with 48 Discrete Inputs 24 Discrete Outputs for Redundant Configurations
Price:
$1500
MOQ:
1
Delivery Time:
5-7days
Brand:
Woodward
Product Description
Woodward 5464-545 Discrete I/O Module
The Woodward 5464-545 is a discrete input/output module belonging to the MicroNet digital control series and is also compatible with the Vertex Pro chassis. Built on MicroNet Plus hardware, the module can operate in both simplex and redundant configurations, and fits eight‑slot or fourteen‑slot chassis installations. It is designed for use in non‑hazardous areas or Class I, Zone 2, Groups A‑D environments.
The module provides 48 discrete inputs and 24 discrete outputs. It supports two configurations: one with two 24/12 discrete FTMs connected via high‑density discrete/analog cables, and the other with optically isolated discrete inputs accessible through 24/12 FTMs.
Technical Specifications
| Function | Smart Analog I/O Module |
|---|---|
| Input Channels | 24 channels |
| Resolution | 16-bit ADC / 12-bit DAC |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 250mm × 245mm × 261mm |

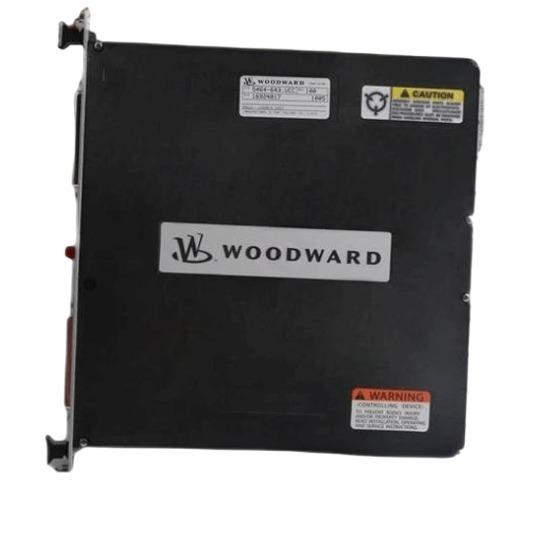

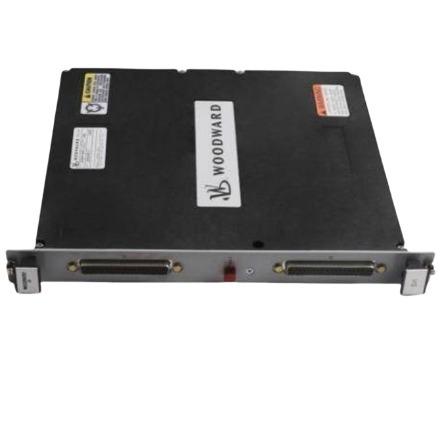

Product Images
Installation Requirements
Professional installation is essential to ensure optimal performance, operational safety, and compliance with industry standards. Proper implementation is critical for reliable system integration and long-term operational efficiency.
- Professional installation required for optimal performance and safety
- Ensure proper mounting and adequate ventilation
- Comply with all applicable electrical safety standards
