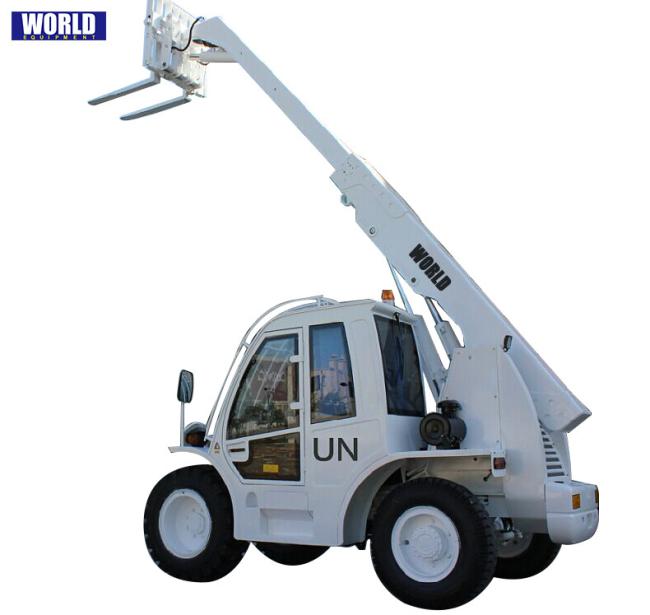

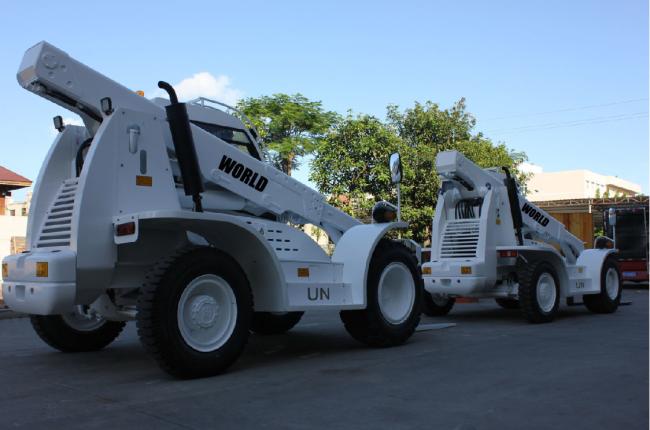

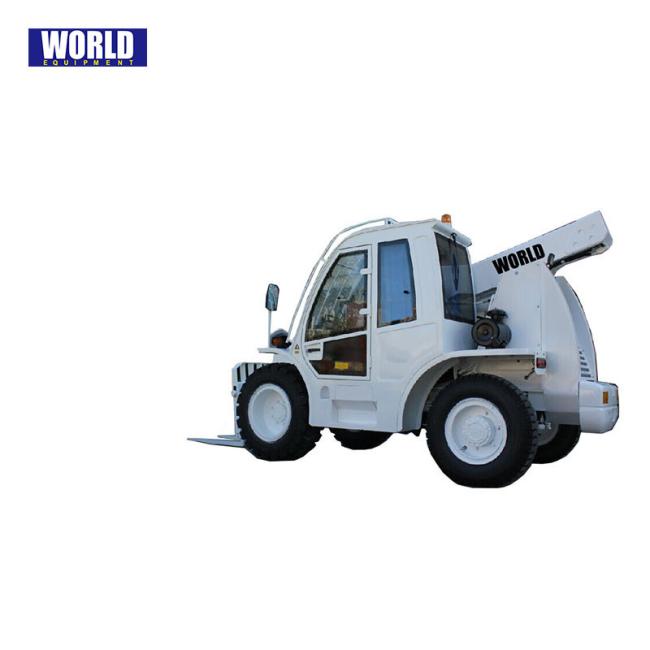

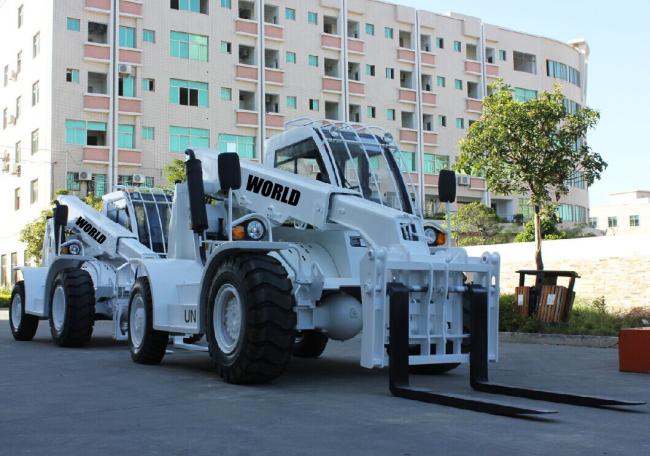

Diesel Engine Telescopic Handlers 3t 4WD

Price Negotiable

Price: 15000-90000

MOQ: 1 set

Delivery Time: 30 days

Brand: WORLD

Product Description

Product Overview

Driving Axle heavy duty 4 wheel drive,with inside wet brake,bigger braking torque, shorter braking distance;Both front & rear axle with steering system. Hydrostation tranmission.
Application with quick change system the telescopic forklift is application to the unstuffing and casing of pellatized goods in container, as well as handling,stacking and short-distance transportation of a varity of packaged goods. The forlkift suitable for many different working environment, is ideal equipment for loading and unloading, lifting and transportation in mining, factory, architecture,building material, dock,municipal engineering industries and more.

Product Specification

Item	Specification	WEA25-4	WEA30-4
1	Rated load	2500 kg	3000kg
2	Operating weight	8200 kg	8600kg
3	Max. Lifting height	7000 mm	7000mm
4	Load capacity @ max. Forward reach	1000 kg	1250 kg
5	Max Out-Reach distance	3350mm	3350mm
6	Max. Loading Capacity(Max Out-Reach)	1300 kg	1400 kg
7	Load center	500 mm	500 mm
8	Max.driving force	≥50 kN	≥50 kN
9	Braking distance	≤12.5 m	≤12.5 m
10	Min. Ground clearance	400mm	400mm
11	Wheel Base	2700 mm	2700 mm
12	Tread	1870 mm	1870 mm
13	Min. Turning radius outer tire center	≤6200 mm	≤6200 mm
14	The second Boom reach time	≤12.05/10s	≤12.05/10s
	The second Boom get back time	≤6.02/5.5s	≤6.02/5.5s
	Lifting time	≤25.2/22.5s	≤25.2/22.5s
	Descending time	≤15.2/14 s	≤15.2/14 s
15	Telescopic Boom Changing angle range	-11°～60°	-11°～60°
16	Travelling speed (unloaded)	30km/h	30km/h
17	Engine Model	4DK100-T304	4DK100-T304
18	Engine Rated power	74 KW	74 KW
19	Engine Rated Speed	2200r/min	2200r/min
20	Tire	Front 16/70-24 Rear 10.00/20-16	Front16/70-24 Rear10.00/20-16
21	Overall dimension (without fork)	573023902485 mm	573023902485 mm
