Dual Fiber DWDM MUX DEMUX C21-C60 40 Channel DWDM Mux With Monitor Port
Dual Fiber 40CH C21-C60 DWDM MUX DEMUX, With 1310nm And Monitor Port
- IL<3.5dB , 100GHZ DWDM AAWG Technology
- Multiplexing of 40 Channels with 1310nm and Monitor a Dark Fiber Network
- Fully Compatible with All ITU-T 1G/10G/25G/40G/100G DWDM Optics
- Passive devices, No Power No Cooling Required
- Support Metro, Regional and Long Haul DWDM Networks
The 40ch DWDM MUX DEMUX is designed by FIBERWDM, wavelength fromC21 toC60(1560.61nm~1529.55nnm), in accordance with the ITU-T G.694.1 100GHZ grid, it maximizes the capacity of the C-band range.
The 40ch DWDM with 1310nm port is totally passive DWDM device, and support low insertion loss( wavelength ports＜3.5dB; 1310nm port＜0.8dB).And it conjunct with The DWDM amplifiers and DCM device, the 40ch DWDM transfer system can support a long distance transmission.
Product Panel
40CH DWDM MUX DEMUX

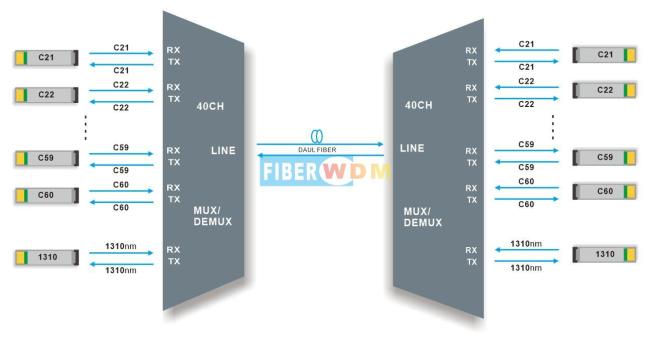

Line Link
40CHDWDM MUX DEMUXDual fiber transmission
- 40 Channels DWDM MUX DEMUX and with 1310nm Port, supports 40 channels difference business in two optical fiber for point-to-point transmission.
- It works in Broadcast and TV, IDC, finance, government, cloud, massive data and other industries.
Product Specification
| Wavelength | 40channels C21-C60 | Channel Spacing | 100GHz (0.8nm) |
| Channel Passband | ±0.11nm | Technology | AAWG (Gaussian) |
| Insertion Loss | ≤ 3.5dB | Link Loss | ≤7dB |
|
1310nm Port Pass Band Width |
1260nm~1360nm |
Center Wavelength Accuracy |
±0.05nm |
|
Insertion Loss @ 1310 port |
≤0.8dB | Insertion Loss @ 1% Mon | ≤ 26dB |
| Return Loss | ≥ 40dB | Directivity | ≥ 40dB |
|
Polarization Mode Dispersion |
≤ 0.1ps | Polarization Dependent Loss | ≤ 0.3dB |
| Channel Isolation | Adjacent ≥ 25dB Non-adjacent ≥ 29dB |
Temperature |
Operating -5 to 65°C Storage -40 to 85°C |
| Net Weight | 1.5KG | Dimensions (HxWxD) | 44*440*230mm |
Note: Specified with connectors.
Package Information
19” Inch 1U Rack
Order Information
| Product No. | Product description |
| DMD40-1U01-C2160-31M | DWDM MUX DEMUX 40CH (C21-C60) With 1310nm and Monitor Port, Dual fiber, LC/UPC , 1U Rack |
Note:We Support Customized Design, please contact us by email.
