400G DCI Optical Service Conversion Subsystem DCI-FW1600
- 1U chassis can reach the data transmission capacity up to 1.6T
- Support 16x100G QSFP28 ports of client side
- Support 100G/200G/400G CFP2 line interface
- Support Web and SNMP management
- Support OSC out-of-band management
400G DCI Optical Service Conversion Subsystem
DCI-FW1600
DCI-FW1600 optical service conversion subsystem is a service platform customized for data center interconnection (DCI) applications. It can achieve a maximum transmission capacity of 1.6Tbps. The line side has 8x200G/4x400G CFP2 coherent optical paths, and the client side can access 16x100G QSFP28. Its powerful transmission capacity is very suitable for the using in data center computer rooms. At the same time, the platform adopts front and rear heat dissipation design, and is equipped with multiple sets of high-speed fans to ensure excellent heat dissipation performance.
Product Characteristics
- 1U chassis can reach the data transmission capacity up to 1.6T
- Support 16x100G QSFP28 ports of client side
- Support 100G/200G/400G CFP2 line interface
- Support Web and SNMP management
- Support OSC out-of-band management
Performance Parameter
| Parameter | Unit | Performance Index | |
| Max Transmission Capacity | Tbps | 1.6 | |
| Service Access Rate | Gbps | 100GE/100G OTU4 | |
| Line Side Rate | Gbps | 100/200/400 | |
| Coherent Modulation Technology | QPSK/8QAM/16QAM | ||
| Sourrounding Parameter | Working Temperature | ℃ | -10~ 60℃ |
| Storage Temperarure | ℃ | -40℃~ 85℃ | |
| Relative Moisture | 5% ~ 95% (No condensation) | ||
| Size | 1U | mm | 482.6W×400D×44.5H |
| Power Supply | AC | V | 100~240,50~60hz |
| DC | V | 36~72 | |
| Power Consumption | 1U | W | ＜350(Max) |
Card Introcdution

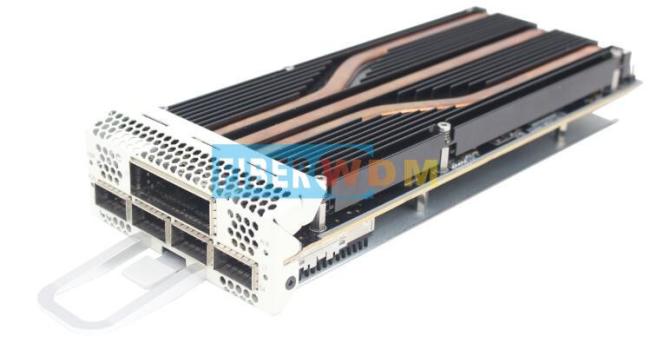

400G Muxponder

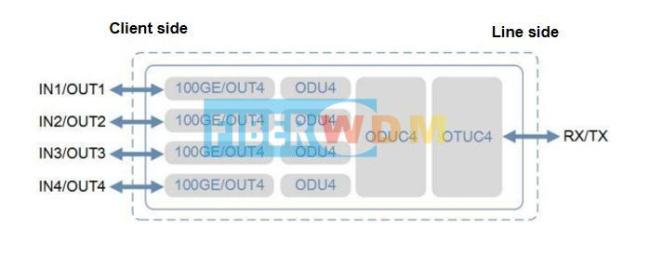

400G Muxponder card, supports transparent transmission of4 channels of 100G services, and can convert4 channels of 100G service signals into 1 channel optical signal of 400G DWDM standard wavelength.
| Parameters | Unit | Specifications | |
| Access signal rate | Gbps | 103~112 | |
| Interface type | Line side | ----- | 1*400G DCO |
| Client side | ----- | 4*QSFP28 | |
| Consumption | W | ＜50 | |
