30W Optical Transmission Network 200G Muxponder 1*CFP2+2*QSFP28
200G Muxponder: 1*CFP2+2*QSFP28
The 200G Muxponder service card launched by FIBERWDM. supports 2x100G↔200G electric layer multiplexing / demultiplexing, and converted to a 200G WDM standard wavelength optical signal, so as to facilitate the wavelength division multiplexing of optical signals of different wavelengths by the wave combining unit, and realize the inverse process of the above process. The line side adopts DP-8QAM or DP-16QAM modulation mode, coherent reception and other advanced technologies to overcome the challenges of high-speed transmission system for OSNR requirements, Cd tolerance, PMD tolerance and non-linear transmission physical effects. It can achieve a maximum of 800KM of no electrical relay transmission, and support C-band 96 wave (50GHz) tunable.

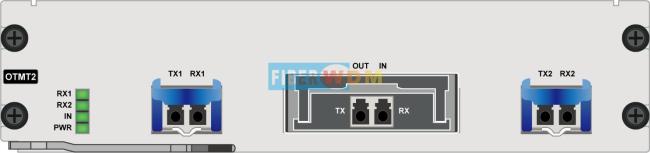

Product diagram

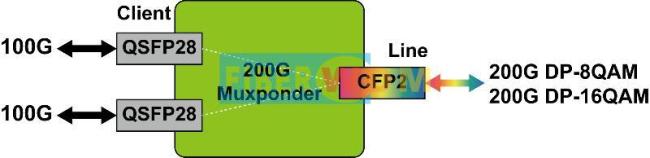

Functional structure
Product specification
| Function | Note |
| Interface |
|
| Line mode | Support 2*100G service optical signals to be multiplexed into 1*200G DWDM standard wavelength optical signal |
| Relay mode | Support 200G wavelength electrical relay |
| Support service type |
100GE OTU4 |
| WDM technology | Support DWDM: C-band 50GHz 96 wave tunable |
| FEC technology | Support SDFEC and G.709 FEC |
| Occupied slot number | Support OTN1000 series chassis, occupy 2 slots |
| Network management function |
|
| Power consumption | 30W (include the optical transceiver) |
| MTBF | ＞100000 hours |
