Aluminum Material Hydraulic Ironworker Machine W11S Series 10000 Mm Length
Price:
$7,000.00/sets >=1 sets
MOQ:
Negotiable
Delivery Time:
Negotiable
Brand:
Kingston
Product Description

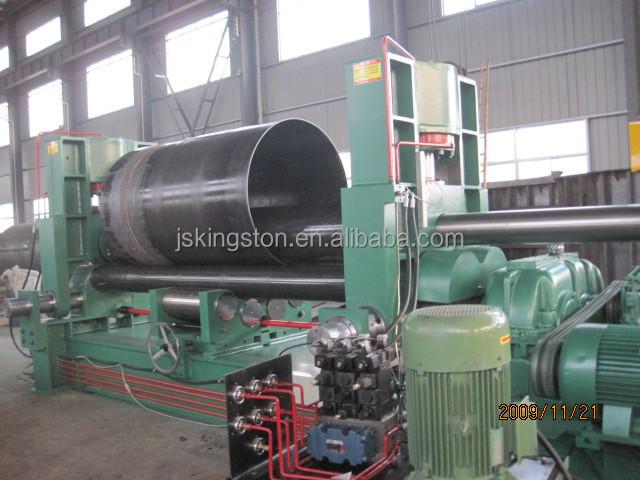

UPPER ROLLER UNIVERSAL PLATE BENDING MACHINE W11S
MainFunction
This machine is a hydraulic three-roller bending machine and used to do pre-bending the end of plate, rolling it into round, cone and other shapes.
Technical description ofW11S-25*2500
|
MODEL |
W11S-25*2500 |
|
Max width of roll board |
2500mm |
|
The length of working rolls |
2600mm |
|
Max thickness of plate |
25mm (Yielding Limit of Steel Plate 245Mpa) |
|
Max. Thickness of pre-bending:30mm |
20mm(Yielding Limit of Steel Plate 245Mpa) |
|
Up roll diameter |
Φ380mm |
|
Down roll diameter |
Φ220mm |
|
Distance between two down rolls |
360mm |
|
Drive speed |
4.5m/min |
|
Main motor |
22KW |
|
Hydraulic motor |
7.5KW |
|
Move motor |
4KW |
|
PLC |
Omron, Japan |
|
Hydraulic system |
Yuken, Japan |
|
Electrical elements |
Siemens, German |
|
Touch screen |
people-machine |
