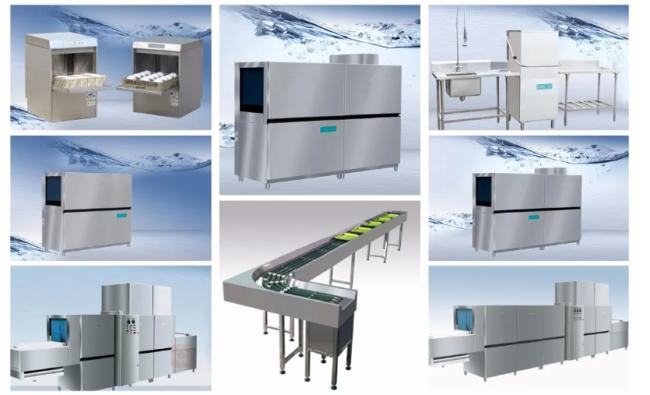

Electrical Flight Type Dishwasher Freestanding Commercial Dishwashing Machine
Quick Details
Washing Tanks Heating Tube Power:3*9kW
Washing Tanks Pump Motor Power:3*2.2kW
Transfer Power:0.4kW
Dimensional Spray Heating Tube Power:36kW
Dimensional Spray Water Consumption:300L/H
Conveyor Speed:2.5m/min
|
|
Features:
● Longer equipment life. Advantages
● Lower operation and energy costs. · Smaller likelihood of equipment failure. ● Less down time,especially during peak operation periods.
● Less chance of food spoilage. ·Better health inspection scores.
Specifications:
| ModelNo | EARD | |
| Product Name | Triple Tanks Commercial Dishwashing Machine With Double Rinse Arms Slagging | |
| ength×width×Height | 5100x862+450x2000 | |
| Rated voltage(V/N/Hz) | 380/3/50 | |
| Rated Power(kW) | 61.56 | |
| ElecricCurrent(A | 93.5 | |
| Main Heating Power(kV) | 18 | |
| Main Wash Pump Power(k) | 1.5 | |
| Rinse Heating Power(kwj | 30 | |
| Rinse Pump Power(kW) | 0.37 | |
| Slag removal power(kw) | 1.56 | |
| Water Tank volume(l) | 98 | |
| Capacty of slag removalcylinder(L) | 80 | |
| Heating Pattemn | 电/Electrka | |
| Water Main Wash Temperature(℃) | 55~65 | |
| Water Rinse Temperature(℃) | 82~90 | |
| Washing Capacity(Dishes/H)(Pcs) | 4300~6400 | |
| Water Consumption (L/H) | ≤600 | |
| Drying Heating Power (kw) | 9 | |
| Drying Power (kw) | 0.75 | |
| Drying Temperature 〇C) | 55~85 | |
Inatallation and Connerction Requirements
a) Separate power supply all - pole disconnection and water source switch manual valves must be installed. For cutting off the power and water supply of the machine respectively
b) The power supply, inlet pipeline, drainage pipeline, steam pipeline and ventilation pipeline connected with the machine must meet the relevant national standards
c) External piping connected to the machine is installed on site
