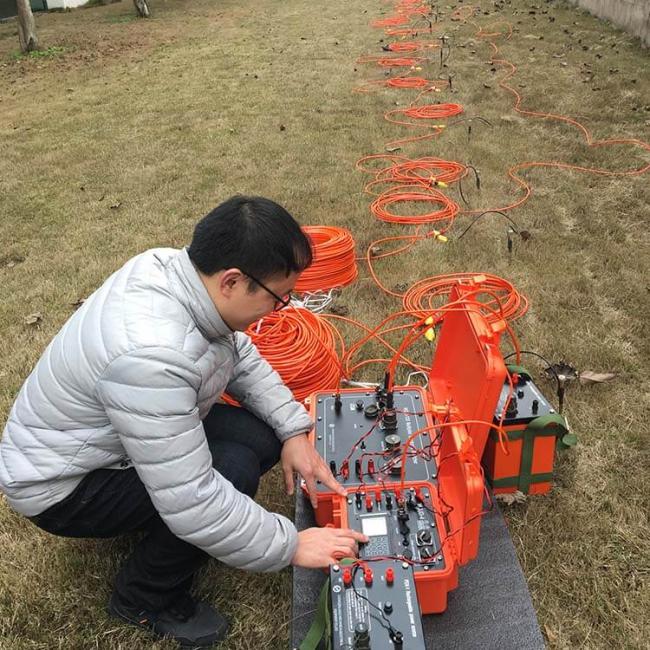

Geophysical Underground Water Detection Instrument 50Hz 2D Imaging
2D Imaging Geophysical Exploration Instrument for Metal and Water Detection
Electrical exploration is a geophysical exploration method to find different types of useful mineral deposits, identify geological structures and solve geological problems by observing and studying the spatial distribution and temporal characteristics of artificial or natural electric fields, electromagnetic fields or electrochemical fields according to the differences of electromagnetic properties (such as conductivity, magnetism, dielectric) and electrochemical characteristics of various rocks or orebodies in the crust.
Applications
The geophysical exploration instrumetn can be used in energy exploration and civil geophysical prospecting, railway and bridge survey, mental and non-mental mineral survey. This geophysical instrument can also be used in hydro- and engineering geology survey, such as underground water, water reservoir dam site, flood control dam hidden trouble detection, and geothermic field survey.
Electrode arrangement

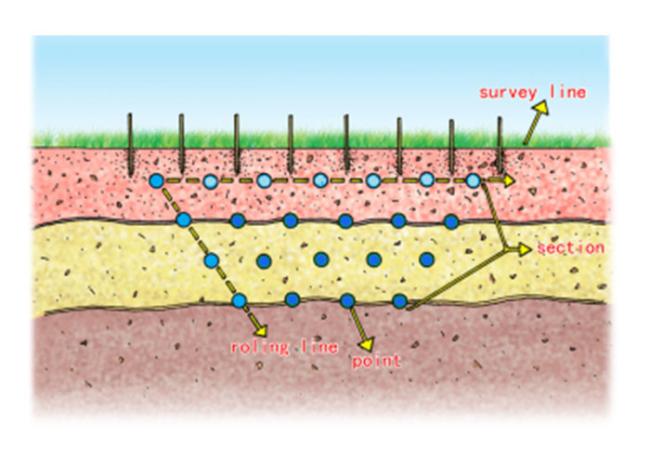

Up to 18 types of devices are extensible. It can be scanned according to fixed section (electrode arrangement is AMNB, ABMN, AMBN, AMN, MNB, A-Mn-B, self-charged M, self-charged MN, charging M, charging MN) and continuous rolling scanning measurement according to variable section (electrode arrangement is A-M, A-MN, AB-M, AB) -MN, MN-B, A-MN rectangle, A-Mn-B, cross-hole dipole), among which, continuous rolling scanning measurement can allow the measurement section to be connected to any length under the condition that the total number of electrodes is unchanged, which is convenient for long section tracking, enabling users to solve practical problems at low cost and high time.
Technical specification
|
Receiving part
|
|
|
Voltage channel:
|
±6V |
|
Measurement accuracy:
|
Vp≥10mV时,±0.5% ±1 character Vp< 10mV时,±1% ±1 character |
|
Input resistance:
|
> 50 MΩ |
|
Apparent polarizability measurement accuracy:
|
±1% ±1character |
|
Sp compensation range:
|
±1V . |
|
Current channel:
|
5A |
|
Measurement accuracy:
|
Ip≥ 10mA时,±0.5% ±1character Ip< 10mA时,±1% ±1character |
|
The suppression of 50Hz power frequency interference (common mode interference and differential mode interference) is better than 80dB
|
|
|
Launch part
|
|
|
Maximum transmit power:
|
4500W |
|
Maximum supply voltage:
|
±900V |
|
Maximum supply current:
|
±5A |
|
Power supply pulse width:
|
1~60 seconds, the duty ratio is 1:1
|
| Other | |
|
Operating temperature:
|
-10°C~ +50°C, 95%RH |
|
Storage temperature:
|
-20°C~ +60°C |
|
Instrument power supply:
|
No. 1 battery (or nickel-cadmium battery of the same specification) 8 pieces
|
|
Current current:
|
≤55mA |
| Weight: | ≤7KG |
|
Volume:
|
310mm*210mm*210mm |
|
WDZJ-3 multi-channel electrode converter
|
|
|
Converting the number of electrodes:
|
60 road
|
|
Insulation properties:
|
≥500 MΩ |
|
Maximum working voltage:
|
450 VDC |
|
Maximum operating current:
|
2.5 ADC |
|
Instrument power supply:
|
No. 1 battery (or nickel-cadmium battery with the same specification) 8 pieces
|
|
Operating temperature:
|
-10°C~ +50°C |
