Hydrogeology Borehole Logging Equipment

Hydrogeology Borehole Logging Equipment has more than twenty types of measurement parameters, including electrical, magnetic, density, radioactivity, orientation, temperature, pressure, flow, speed, etc. Whether it is metal ore, coal field, oil field, radioactive ore or salt well, and hydrological holes. The parameters of commonly used are also consistent with international habits.

Main Specifications

The use of the environment:Power supply: 220V, 50 Hz；Using the environment temperature: -20℃ ~ 45℃;

2.The depth measurement system:Depth measurement range: 0 ~ 9999.99 m；Depth resolution: 0.28 mm；Speed measurement range: 0 ~ 9999m/h；Deep optical pulse signal: 3600 pulses per meter

3.Signal transmission system: Bottom hole output signal: bipolar coding；Communication with the computer: RS232 or USB；The underground signal detection level: plus or minus 0.5 V ~ plus or minus 12V

4. Figure out the depth of the graph; 1:10; 1:50. 1:100. 1:0; 1, 50, 0, etc.

5. The drawing accuracy:8 points per millimeter (curve)；64 pixels per square millimeter (image method)

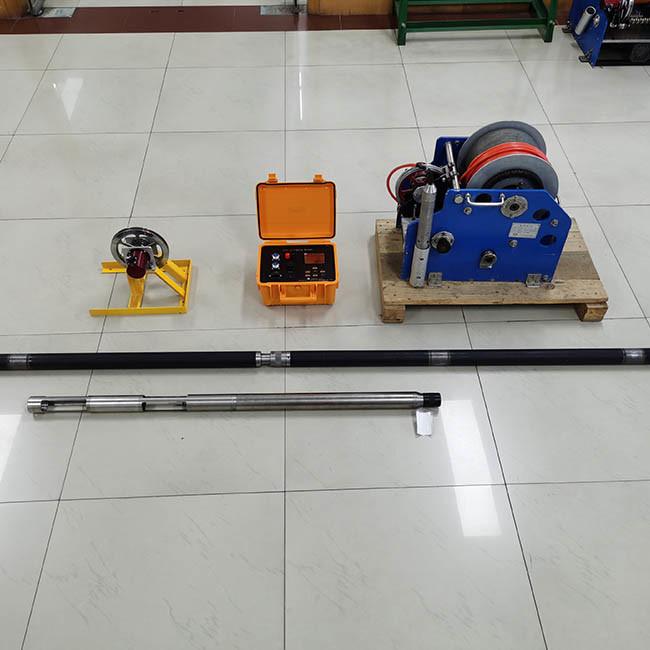

Product Image

Technical Specification
