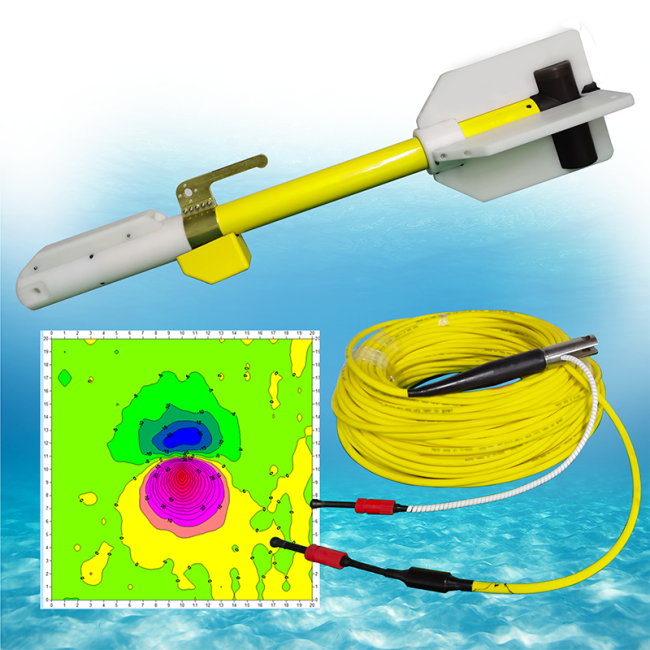

GD-02 Marine Magnetics Magnetometer Cesium Optical Pump Magnetometer Marine Gradiometers For Marine Survey
GD-02 Marine Magnetics magnetometer High Resolution Cesium optical pump magnetometer Marine Gradiometers for Marine Survey
Main Feature
- Cesium high performance: Wide detection range with high probability of detecting various sizes of magnetic targets.
- Streamlined tow design for safety: Low corrosion, sturdy glass fiber shell.
- Sampling rate up to 20Hz: Unparalleled data density, covering larger areas daily.
- Rotatable sensors for optimal signal acquisition: Globally accessible.
- Portable and easy to handle: No winch needed, operated by a single user using built-in handle for easy transport, weighing 15 kg with 60m cable.
- Integration of multiple systems for extended coverage: Internal counters, multi-sensor synchronization, and data cascading to maximize small target detection and reduce noise.

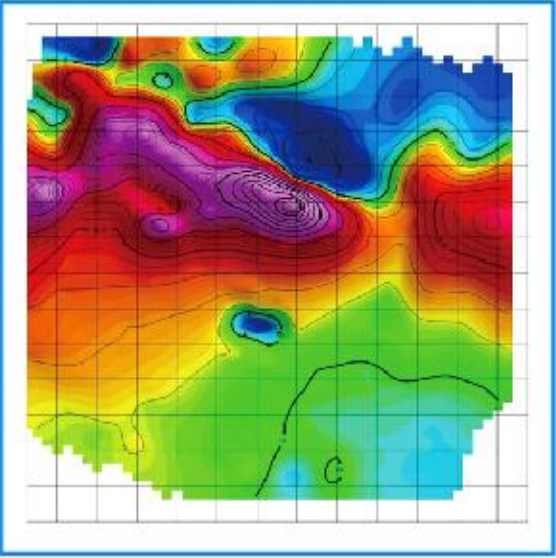

- Data recording software: Record and display data and locations in each magnetometer through automatic anomaly detection.
![]()
![]()
Application
- Land and marine mineral resource assessment
- Geological surveys for land and marine areas, including deep earth construction and geological mapping
- Marine engineering exploration for channels, ports, optical cable/cable positioning, wind power, etc.
- Archaeological exploration for underwater shipwrecks and ancient structures
- Deep-sea exploration for oil and gas
- Earth magnetic field surveys
- Anti-submarine detection
- Detection and positioning of unexploded bombs, mines, and floating mines in vital waterways
- Ocean magnetic array services
- Daily transformer station surveys on land or at sea

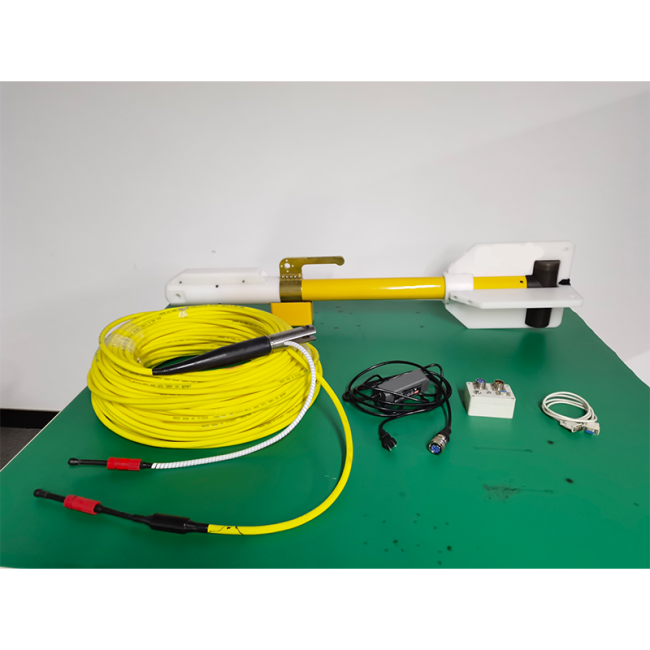

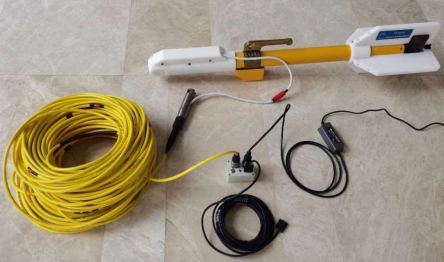

Configuration
| Serial number | Configuration list | quantity |
| 1 | Marine cesium optical pump magnetometer towing fish (with depth meter) | 1 set |

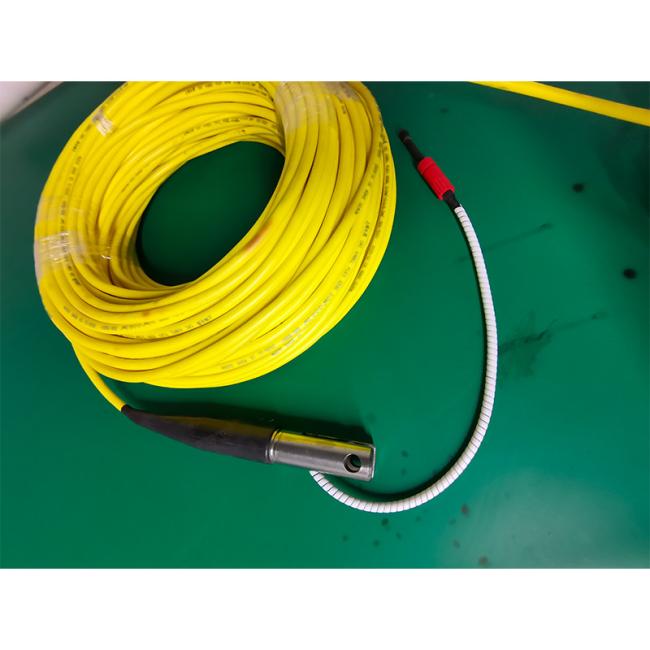

| 2 | 60 m Marine cable (tension 1.6 t) | 1 set |
| 3 | Main counterweight (5kg) | 1 |
| 4 | Deck unit | 1 |
| 5 | Adapter power supply | 1 Article |
| 6 | Serial port 232, the communication line | 1 Article |
| 7 | Trcable cable head pin | 1 set |
| 8 | Flow guide cover card pin | 4 set |
| 9 | Acquisition software U disk | 1 |
Technical Specification
Technical index of towed Marine cesium optical pump magnetometer |
|
| Total Field Measurement Range | 10000nT - 100000nT |
| Power Spectrum Noise | <0.0006nT/√Hz RMS |
| Job Angle | 10°-85°(N), 95°-170°(S) (Automatic change of Hemisphere) |
| Gradient Capacity Limit | >40000nT/m |
| Turn to Poor | ≤0.5 nT |
| Towing Fish Dimensions | Length: 1.25m, Diameter: Ø 70mm, Max. Tail Width: 28cm |
| Drag Fish Weight | Main Counterweight: 15kg (Multiple Counterweights possible) |
| Conventional Streamer | Tension: 1.6t, Length: 60m |
| Conventional Pressure | 180m |
| Depth Meter Measurement Range | 0-160m |
| Steady State Power Consumption | 15W |
| Working Power Supply Voltage | 24V-36V |
| Operating Current | Start: ≤ 1.1A, Stable: 0.5A-0.7A |
| Data Output Frequency | 1-10Hz |
| Data Communication | Serial Port 232 |

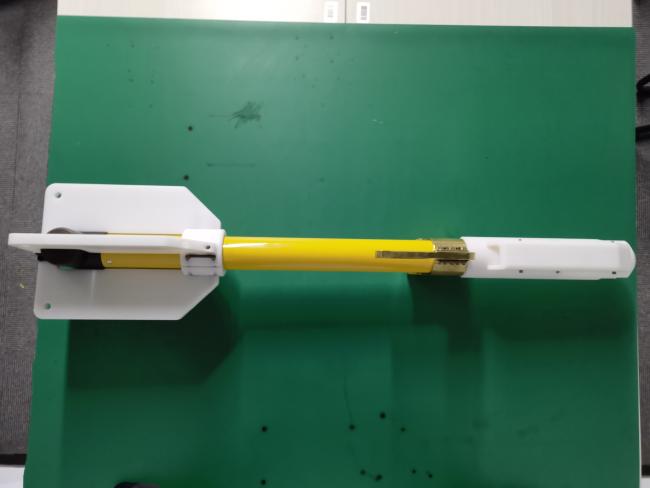

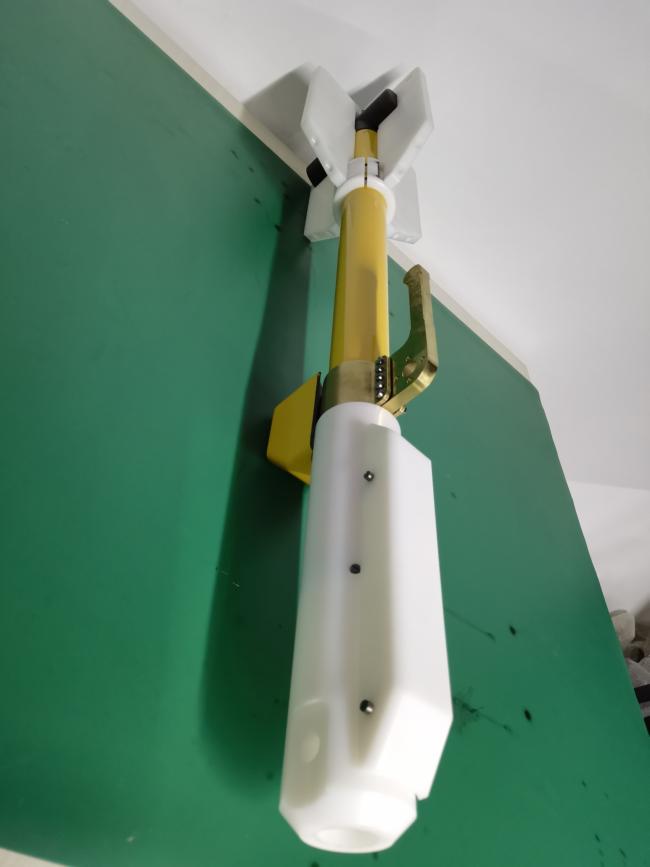

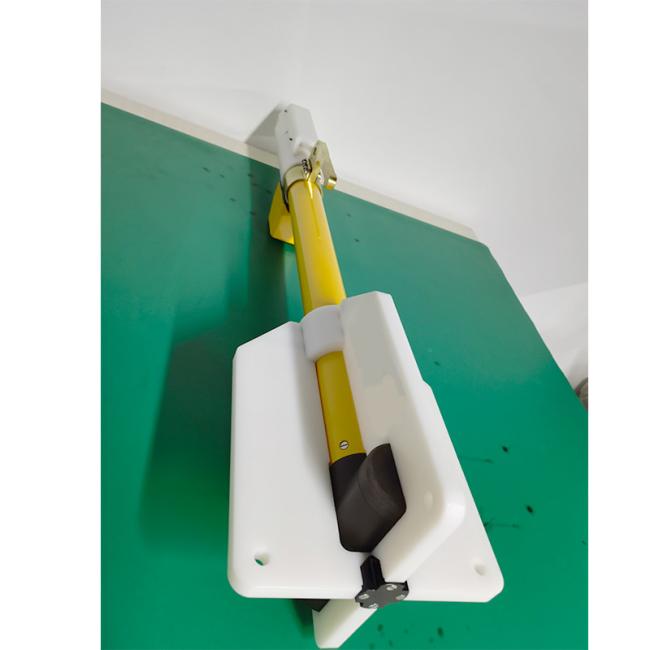

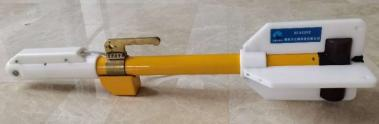

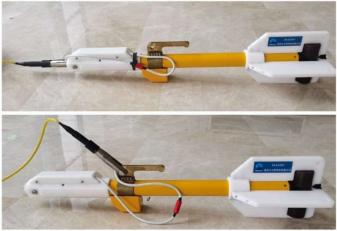

Detailed Images

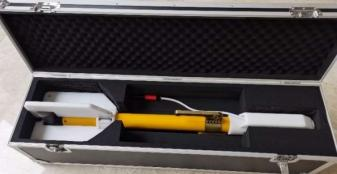

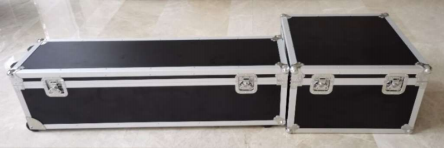

Packing&Delivery
