250W - 900W Skate Park Lighting Modular Rotatable Tennis Court Led Lights
Dark Housing 900W LED5050 Rotatable Modular 17 Class Wind Load Aluminum & Stainless Steel For Skate Park
SPECIFICATIONS
As an important member of Barrett Family, E series are more suitable for those small fields or outdoor area, for example: Tennis Court, Padel courts, Horse riding field. Same as other Barrett members, E series are also with below shinning features:
From 250W to 900W
Precise target lighting with the all-direction rotatable modular design
Glare Control with light spill cover
Class 17 wind load resistance
Free Dialux Simulation
Broadcast standard TLCI＞90
No exposed electric wire
Wireless Control
Detachable driver box
Quick connection plug
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| Led Brand | Lumileds 5050 |
| Rotatable Modular Design | Vertically 360°+horizontally180° |
| CRI | 70 80 90 |
| Wattage/module | 250 Or 300w |
| Operating Temp | -40℃ To 55℃ |
| Dimming Solutions | 0-10v Dimming,dali,clo,Zigbee Technology |
| Power Factor | ＞0.95 |
| Driver Box | Detachable SOGA Electrical box |
| MODEL | SG-BA-E250W | SG-BA-E300W | SG-BA-E500W | SG-BA-E600W | SG-BA-E750W | SG-BA-E750W |
| WATTAGE | 250W | 300W | 500W | 600W | 750W | 900W |
| MODEL QTY | 1 | 1 | 2 | 2 | 3 | 3 |
| WATTAGE/MODULE | 250W | 300W | 250W | 300W | 250W | 300W |
| LUMEN EFFICIENCY | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W | 145-175LM/W |
| LUMEN OUTPUT | 36250-43750LM | 43500-52500LM | 72500-87500LM | 87000-105000LM | 108750-131250LM | 130500-157500LM |

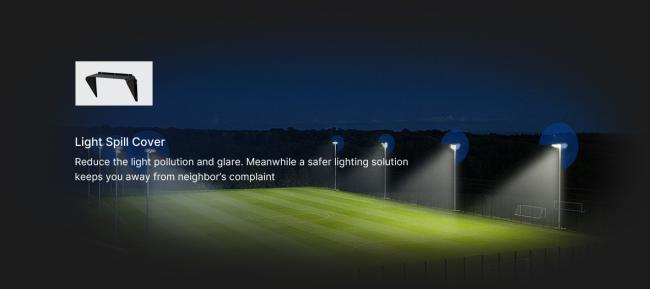

Light Spill Cover
Reduce the light pollution and glare. Meanwhile a safer lighting solution
keeps you away from neighbor’s complaint
High-Definition Broadcasting Standard
High TLCI solution can be offered to meet
high-level broadcasting sports event.

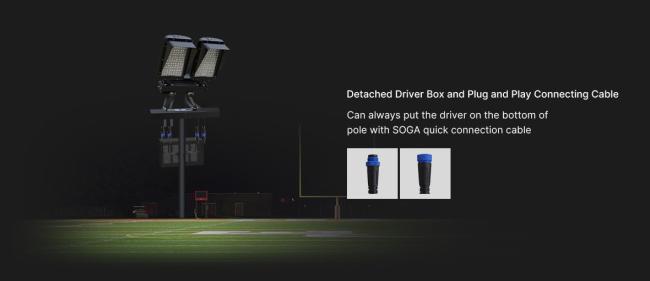

Detached Driver Box and Plug and Play Connecting Cable
Can always put the driver on the bottom of
pole with SOGA quick connection cable
Scope of application
the product is widely used in tennis court Seaport Cricket courtfootball fieldConstruction Site Outdoor parking lot golf course.it can meet the diverse needs of customers
