Detachable Outdoor LED Parking Lot Lights Waterproof Arena Sports Lighting
Outdoor LED Sports Lights Arena Light Outdoor Waterproof With Detachable Electrical Box Outdoor Parking Lot
SPECIFICATIONS
Patented c series LED sports lights have an elegant appearance with die-cast modules, IK rating is IK08 Vertically and horizontally rotatable heat sink design makes every module flexibly targeting to specified point to get much better light uniformity on sports field. Upward light ratio=0 for light fixture with symmetrical beams and spill covers Upward light ratio=0 for light fixture with asymmetrical beams Optional long distance wireless control system and DMX control system
| Input Voltage | AC90-305V/AC108-528V |
| Housing | Aluminum |
| Aluminum | Lumileds 5050 |
| Rotatable Modular Design | Horizontally15° |
| CRI | 70 80 90 |
| Wattage/Module | 150W |
| Operating Temp | -40℃ To 55℃ |
| Dimming Solutions | 0-10V Dimming, DALI, DMX, clo, Zigbee |
| Power Factor | Power Factor |
| CCT | 3000K 4000K 5000K 5700K 6500K |
| MODEL | SG-JR-150W | SG-JR-300W | SG-JR-450W | SG-JR-600W | SG-JR-750W | SG-JR-900W | SG-JR-1200W | SG-JR-1500W |
|
WATTAGE Symmetrica |
150W | 300W | 450W | 600W | 750W | 900W | 1200W | 1500W |
|
MODEL QTY
|
1 | 2 | 3 | 4 | 5 | 6 | 8 | 10 |
|
LUMEN EFFICIENCY Symmetric |
170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W | 170LM/W |
| LUMEN OUTPUT | 25,500LM | 51,000LM | 76,500LM | 102,000LM | 127,500LM | 153,000LM | 204,000LM | 255,000LM |

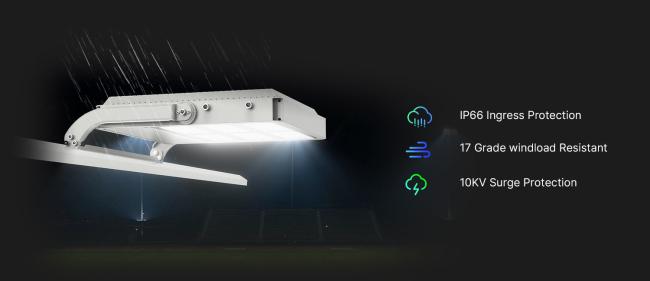

IP66 Ingress Protection
17 Grade windload Resistant
10KV Surge Protection
High-quality Die-casting aluminium housing
- higher IK (Impact Protection) rating approved
- high-performance thermal management ensures the stability of the lighting fixture.
