IP66 IK09 LED Stadium Light 600W-1800W Eagle Series Sports Floodlight
Price:
Negotiable
MOQ:
Negotiable
Delivery Time:
Negotiable
Product Description
seven@soga-lighting.com

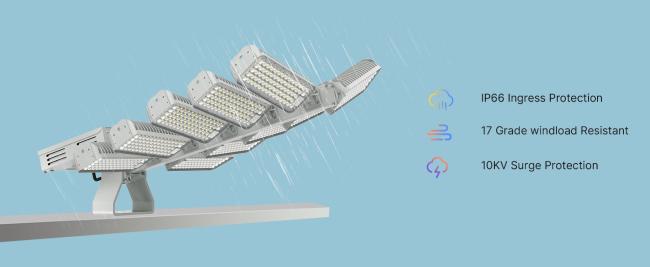

SOGA Eagle Series LED Sports Light - High Uniformity, Anti-Glare Stadium Lighting
Product Overview
SOGA Eagle Series is a patented modular LED sports light designed for professional stadiums and large outdoor venues. Featuring die-cast housing, IP66 waterproofing and IK09 impact resistance, it delivers exceptional light uniformity, zero upward light spill and precise beam control—ideal for football fields, cricket courts, high poles and seaports. With rotatable modules and smart control options, it offers flexible installation and optimal lighting performance.
Key Features
✅ Patented Rotatable Modular Design
Each module rotates 80° vertically + 180° horizontally, enabling precise targeting for uniform field lighting. Equipped with patented aiming lines and L-screwdriver adjustment for quick, easy setup.
✅ Superior Light Efficiency & Output
- Asymmetric Beam: 150lm/W, max 225,000lm
- Symmetric Beam: 175-180lm/W, max 315,000lm
- Zero upward light ratio (symmetric/asymmetric beams)
- Lens options: Asymmetric 60° Narrow/Wide, 70° Narrow/Wide
✅ Advanced Anti-Glare & Obtrusive Light Control
Backlight cut-off design eliminates spill light to neighboring areas. Complies with EN 12193:2018 and AS/NZS 4282:2019 glare standards, perfect for residential-adjacent stadiums. Installation angle ≤10° for optimal control.
✅ Durable & Weatherproof Build
- IP66 dustproof/waterproof, IK09 impact resistance
- Die-cast aluminum housing for efficient heat dissipation
- Stainless steel conduit protects cables from bird pecking and harsh weather
- Windload tested for outdoor safety
✅ Smart Control & Optional Accessories
- Long-distance wireless control + DMX system for dynamic lighting effects
- Optional: Laser pen aiming, 20KV SPD, Zigbee gateway/controller, spill light cover, separated driver box
- Toggle clamps on driver box for easy maintenance
Specifications
| Parameter | Details |
|---|---|
| Model | SG-EG-600W/720W/900W/1080W/1200W/1440W/1500W/1800W |
| Wattage | 600W-1800W |
| CRI | ≥70 (Customizable) |
| CCT | 5000K/5700K (Daylight) |
| Input Voltage | AC 100-277V, 50/60Hz |
| Power Factor | >0.95 |
| Lifespan | >50,000 hours |
| Warranty | 5 years |
