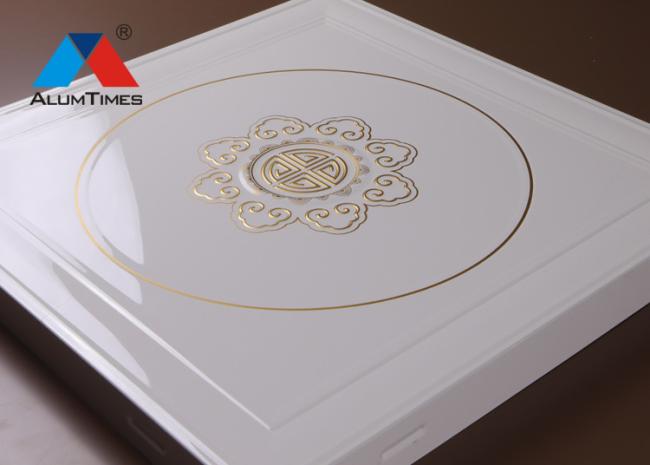

Interior Decorative Aluminium Composite Panel False Ceiling With Painting Roll Coating
ALUTIMES Interior Decorative aluminum ceiling plates/panel board /plate
Brief Description
Alutimes clip-in ceiling system mounts directly onto our standard concealed suspending system to form a monolithic ceiling
appearance,
The high quality engineered panels are flat and dimensionally stable. Standard nominal size
300×300,300×600,300×1200,400×400,500×500,600x600, 600x1200 etc, special size are available on request, Lighting, HVAC equipment,
air diffusers and other mechanical services can be interfaced in above or below the ceiling system, For improve acoustical
performance a sound absorbing acoustic tissue or mineral wool can be applied on the back of perforated panels
| Specification | Thicknesss | Height | drawing |
| 300 x 300mm | 0.4 - 1.0mm |
19mm (short edge)
25mm (high edge)
|
|
| 300 x 450mm | |||
| 300 x 600mm | |||
| 300 x 1200mm | |||
| 450 x 450mm | 0.5 - 1.2mm | ||
| 500 x 500mm | |||
| 600 x 600mm | |||
| 600 x 1200mm | |||
| Raw material | Aluminum Alloy | ||
| Surface treatment | Roller coating, Film coated, Powder coated(ordinary powder,Polyester powder), Paint coated. | ||
| Type of Surface | Plain ceiling OR perforated ceiling OR Corlorful Pattem Ceiling are selected according to the actual requirements | ||
| Remark | We also supply semi - finished product ceiling (Aluminum roller, Aluminum ceiling sheet stock) | ||

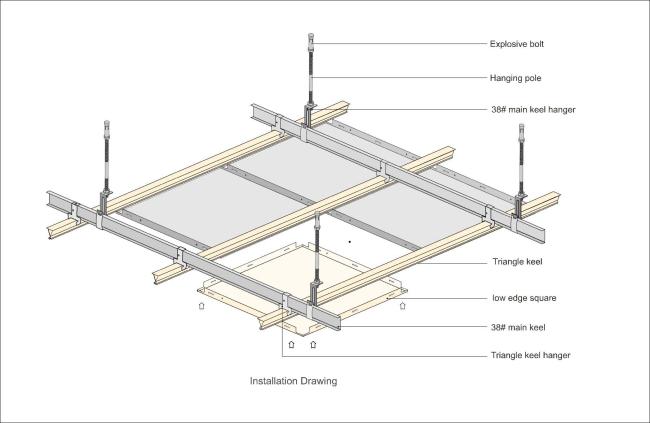

Installation Drawing

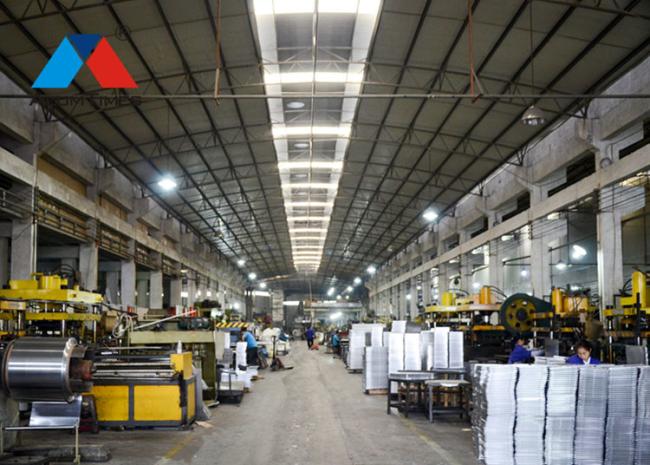

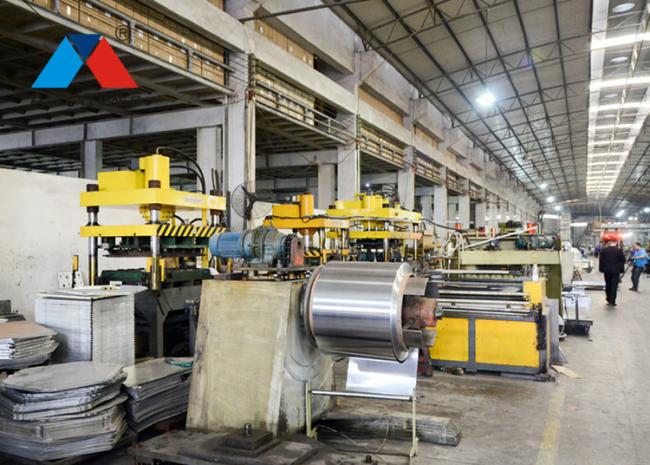

Our Factory
