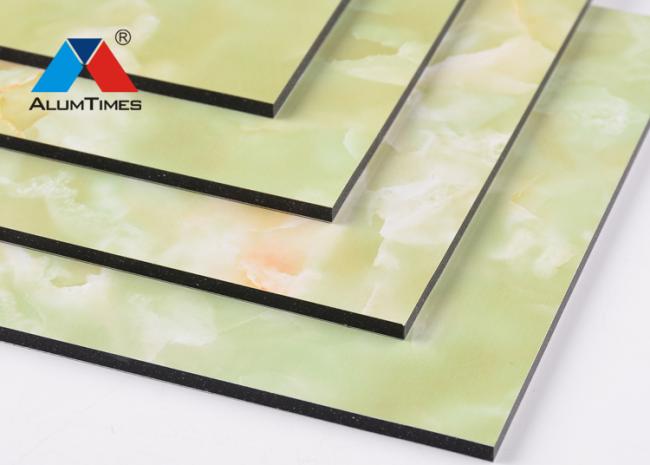

Heat Resistant Aluminium Composite Material Cladding Panels For Shop Decoration
interior panel wood cladding heat resistant panels building materials MOQ 500 SQM
Material:
a) Front: aluminum alloy sheet coated with fluoro-carbon resin
(PVDF) and polyester resin (PE) roasting painting
b) Core: nontoxic polyethylene.
c) Back: aluminum alloy sheet coated with polyester resin painting
d) Surface finish: treated with PVDF and PE resin rolling roasting .
coating
e) Surface coating thickness: 30um
f ) Aluminum alloy sheet thickness: 0.1mm, 0.12mm, 0.15mm, 0.2mm,
0.3mm, 0.4mm, 0.45mm, 0.5mm
Dimensions:
a) Thickness: 3mm, 4mm
b) Width: 1220mm 1500mm..
c) Length: 2440mm, 3200mm, 4000mm,5000mm (max: 6 meter)
d) Weight: 5.5kg/sqm based on 4mm thickness.
e) Standard size: 1220 x 2440mm
f) Nonstandard sizes are available according to requirement of customers
Characteristic:
PE/PVDF coated Aluminium Composite Panel:
- Excellent fireproof characteristics
- Super peeling strength
- Perfect cold resistance performance
- Excellent surface flatness and smoothness
- Superior weather, corrosion, pollutant resistance
- Even coating, various colors
- Superior impact resistance
- Lightweight, easy to process and installation
- Easy to maintain
| Width(mm) |
Standard 1220mm&1250mm, options 900mm, 1500mm, 2000mm, or any other width |
| Length(mm) |
Standard 2440mm,options: 3050mm, 5000mm, 5800mm, or any other length that can be put into a 20gp container |
|
Panel thickness(mm) |
Standard thickness: 3mm&4mm,options: 1mm, 2mm, 5mm, 6mm,7mm, 8mm,etc |
|
Aluminium thickness(mm) |
0.5mm, 0.45mm, 0.4mm, 0.35mm, 0.3mm, 0.25mm, 0.21mm, 0.18mm,etc |
| Coating | PE, HDPE, PVDF, FEVE, Epoxy coating,etc |
| Color |
Solid, metallic, high gloss, pearl, spectra mirror,stone look, wood look,brushed,etc |
| Weight |
5-6.5kg/Square meters, based on 4mm thickness 3-4.5kg/Square meters, based on 3mm thickness |
| Function | Fireproof, Mould Proof, self-cleaning, Anti-Static, Antibacterial,etc |
| Certification |
SGS / CE / CTC / ISO 9001:2008 / ISO 14001:2004 / GB/T 1774-1999,etc |
FAQ:
Q: What is the minimum order quantity?
A: 800 square meters for aluminium composite panel, 1 ton for color coated aluminium coil, 1200 tubes for silicone sealant.
Q: What is delivery time?
A: 15 days after deposit. Except for public holidays.
Q: How can you guarantee the quality?
A: We have rigorous quality test system, from raw materials to finished products, the materials must be checked and signed by QC people.
Q: How long can I get a quote?
A: The quotation can be provided not longer than 24 hours on condition that we know all detailed requirements.
Q: Can I get a sample?
A: Yes we offer free samples. Delivery cost is to be paid by clients.
Q: Can you provide OEM service?
A: Yes,we can produce under your own brand name. Logo and design need to be provided so as to make customized brand name.
Q: Can I buy installation accessories from you?
A: Yes, we provide wet wall and dry wall system installation accessories.If you want to know more about the installation of aluminium composite panel, pls click the website:www.goldenriver.ecer.com
Q: Why can I trust you and place order with you?
A: From 1997 to 2017 ALUMTIMES is with 20 years experience in this industry, we have served clients from more than 100 countries, ALUMTIMES is well-known for its quality and ALUMTIMES team win clients’ trust by honesty and down to earth business style.
