ASTM AISI 316l Stainless Steel U Channels 10x50x5mm Hot Rolled
Astm Aisi 316l Stainless Steel U Channel 100 * 50 * 5mm Hot Rolled U Channel
Hot Rolled 304 316L Stainless Steel Channel U Channel 304 Stainless Channel Bar

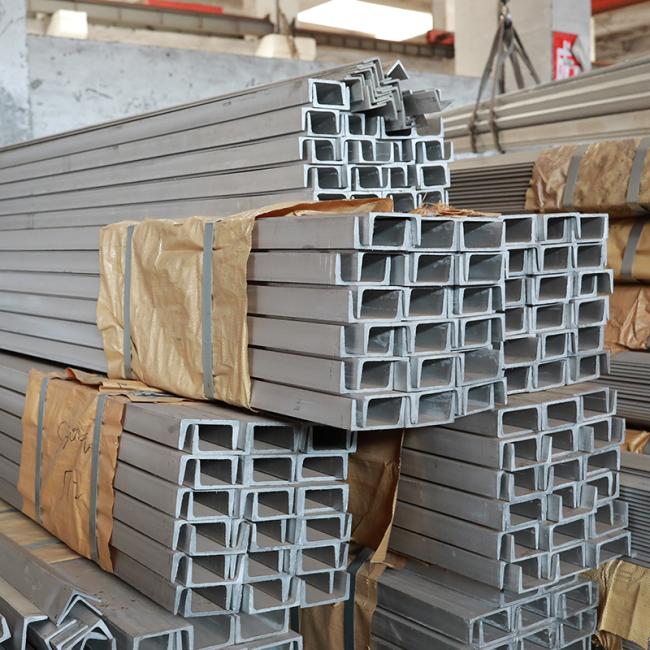

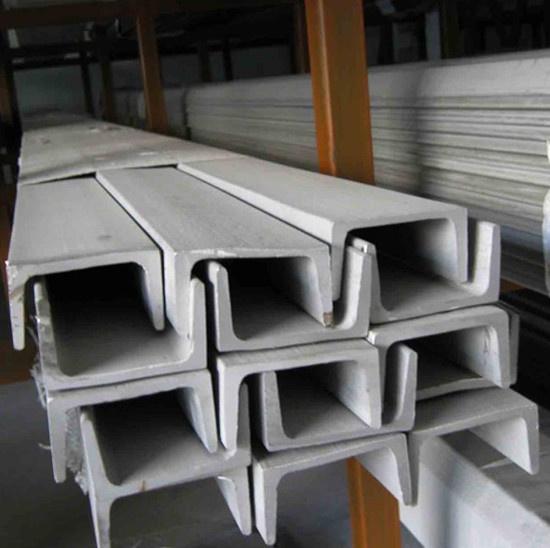

The Stainless Steel U Channel is like a square. The best way to produce it is to make all of the portions symmetrical. We offer 316L and 304L U channels that are extremely durable and very reliable. U channel is offered in laser fused non-tapered with smooth bead blast finish. We can offer custom made to order U channel up to 40’ long
| Products | Stainless Steel U Channel | Grade | 304 316 316L |
|---|---|---|---|
| Size | 3 # - 20 # | Length | 6m |
| Type | Hot Rolled | Service | Cutting |
| Company | Factory | Other Materials | Angle Bar, Square Bar, Hexagon Bar |
| High Light | sus316l stainless steel u channel , aisi 316l u channel bar , 5mm hr stainless steel u channel | ||
| Standard | ASTM A276 |
| Condition | hot rolled |
| Size Range | 50*37*4.5 - 200*100*10 |
| Thickness | 4.5mm - 10mm |
| Grades | 304, 316 |
| Processing | Bar cutting |
The Dimensions of Stainless Steel U Channels
The dimensions of stainless steel channels are the same dimensions that apply to each of our products. There is height, width, thickness, and length; these all need to fit certain measurements. However, the height and width are key factors in deciding what kind of channel you will want to purchase. Depending on these factors you could be purchasing a C-channel or a U-channel.
Hot rolled stainless steel channels: dimensional tolerances meet ASTM A276, ASTM A484, ASTM A479, ASME SA479. Laser fused stainless steel channels are produced to ASTM A1069/A1069M/11, dimensional tolerances, and grades according to ASTM A276, ASTM A484, ASTM A479/A479M
Chemical composition of our 304 and 316L stainless steel
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni |
|---|---|---|---|---|---|---|---|---|
| SS 304 | 0.08 max | 2 max | 0.75 max | 0.045 max | 0.030 max | 18 – 20 | – | 8 – 11 |
| SS 304L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.03 max | 18 – 20 | - | 8 – 13 |
| SS 316 | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 - 18.00 | 2.00 - 3.00 | 11.00 - 14.00 |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 1.0 max | 16.00 - 18.00 | 16.00 - 18.00 | 10.00 - 14.00 |
Other Product
| Number | Products name | Grade |
| 1 | stainless steel angle bar | 304 316L 310S 321.etc |
| 2 | stainless steel hexagon bar | 304 316L 310S 321.etc |
| 3 | stainless steel round bar | 304 316L 310S 321.etc |
| 4 | stainless steel square bar | 304 316L 310S 321.etc |
| 5 | stainless steel H beam | 304 316L 310S 321.etc |
