DIN9021 Heavy Plain Dacromet Washer M6-M100 For Construction
DIN9021 Heavy Plain Dacromet Washer M6-M100 for Construction
Description of DIN 9021 Flat Steel Washer:
Plain washers have no additional coating or finish applied to them. They are typically made of carbon steel and do not provide corrosion resistance. These washers are suitable for use in indoor or dry environments where corrosion is not a concern. However, they may rust over time if exposed to moisture or corrosive elements.
DIN 9021 washers typically have a plain finish, but they can also be available with coatings like zinc plating or other corrosion-resistant finishes for enhanced durability in different environments.
DIN 9021 washers are widely used in construction, automotive, and various other industries where secure fastening and load distribution are essential. The choice between plain and Dacromet finishes depends on the specific application requirements, including the level of corrosion resistance needed.
| Material | 45#/40CR |
| Size | M6-M100 |
| Finish | Plain/black/ZINC/HDG/Dacromet/Mechanical Galvanized |
| Hardness | HV300/HRC35-45 |
| Marking | can be Customized |
| Application | Constrution/Wind turbines/railway line |
| Packing | Carton+ pallet; we can pack washers as your requirements |
| Terms | FOB+shanghai/ningbo |
| Delivery time | 30-70days |
| Size |
Inner diameter(min) |
Inner diameter(max) |
Outside diameter(max) |
Outside diameter(min) |
Thickness (max) |
Nominal size |
Thickness (min) |
| 2.7 | 2.7 | 2.84 | 8 | 7.64 | 0.9 | 0.8 |
0.7 |
| 3.2 | 3.2 | 3.38 | 9 | 8.64 | 0.9 | 0.8 | 0.7 |
| 3.7 | 3.7 | 3.88 | 11 | 10.57 | 0.9 | 0.8 | 0.7 |
| 4.3 | 4.3 | 4.48 | 12 | 11.57 | 1.1 | 1 | 0.9 |
| 5.3 | 5.3 | 5.48 | 15 | 14.57 | 1.4 | 1.2 | 1 |
| 6.4 | 6.4 | 6.62 | 18 | 17.57 | 1.8 | 1.6 | 1.4 |
| 7.4 | 7.4 | 7.62 | 22 | 21.48 | 2.2 | 2 | 1.8 |
| 8.4 | 8.4 | 8.62 | 24 | 23.48 | 2.2 | 2 | 1.8 |
| 10.5 | 10.5 | 10.77 | 30 | 29.48 | 2.7 | 2.5 | 2.3 |
| 13 | 13 | 13.27 | 37 | 36.38 | 3.3 | 3 | 2.7 |
| 15 | 15 | 15.27 | 44 | 43.38 | 3.3 | 3 | 2.7 |
| 17 | 17 | 17.27 | 50 | 49.38 | 3.3 | 3 | 2.7 |
| 20 | 20 | 20.52 | 56 | 54.1 | 4.6 | 4 | 3.4 |
| 22 | 22 | 22.52 | 60 | 58.1 | 4.6 | 4 | 3.4 |
| 26 | 26 | 26.84 | 72 | 70.1 | 6 | 5 | 4 |
| 33 | 33 | 34 | 92 | 89.8 | 7 | 6 | 5 |
| 39 | 39 | 40 | 110 | 107.8 | 9.2 | 8 | 6.8 |
Heavy Washer Features:
Uniform Load Distribution: The flat design of DIN 9021 washers ensures that the load from the fastener is evenly distributed, reducing the risk of localized stress and potential failure.
Standard Compliance: Manufactured according to DIN 9021 specifications, these washers meet the required standards for quality and performance.

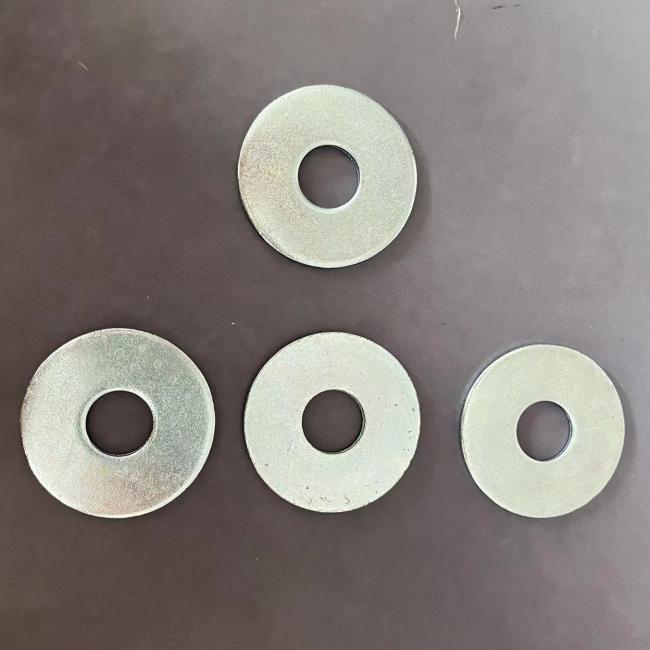

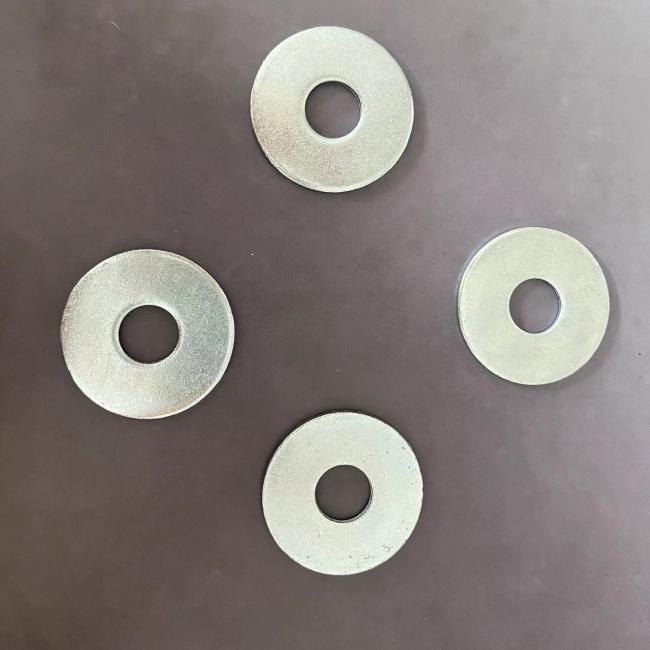

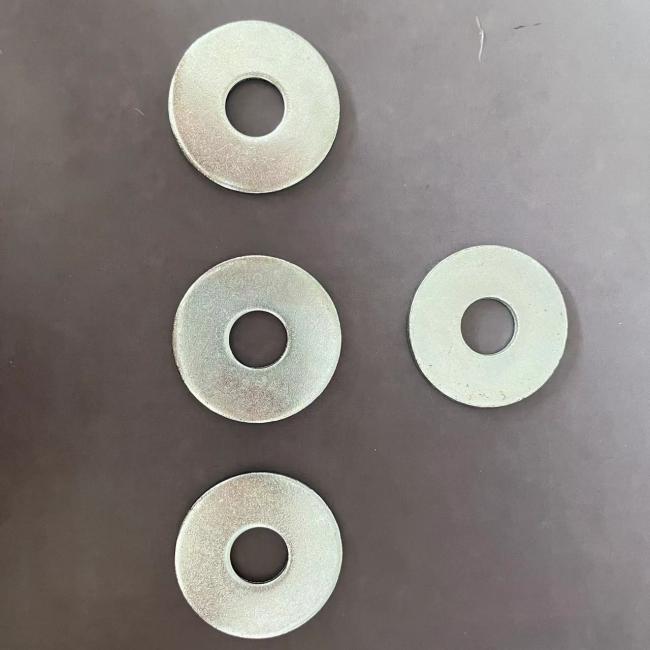

Products pictures for Flat washers
