1D Inventory Wireless Barcode Scanner For Warehouse Library Supermarket

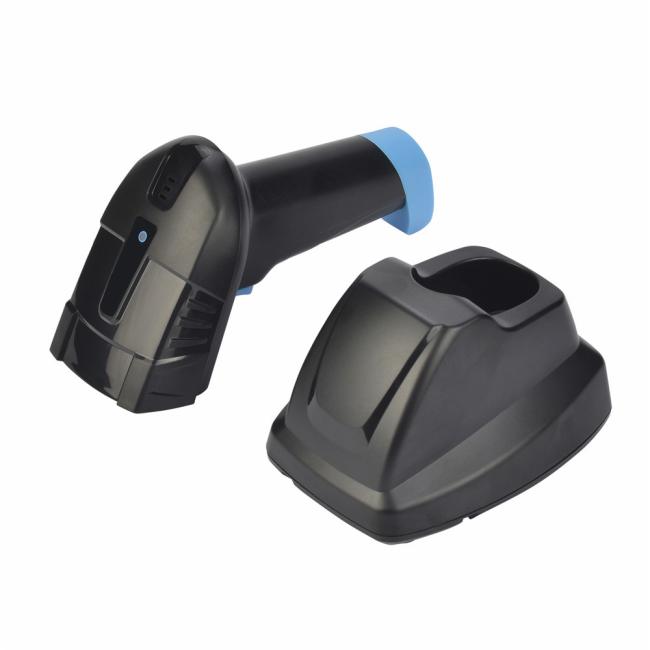

Wireless Barcode Scanner with Cradle, 1D Code Inventory Reader for Warehouse Library Supermarket
with advanced digital image acquisition function,Which can identify screen code, incomplete code and fuzzy code etc, Effectively compensate for the problem that scanner can not identify screen code.
Features
● Can store 100,000 barcode off-line.
● Built-in 1500mAh battery, super-long standby time.
● Base supports data transmission and battery charging.
● 3 Scan Mode : Manual trigger mode / Auto-induction mode / Coutinuous mode
● Support different language for 25 countries.
● 32Bit CPU, Super decoding ability; Read barcode as small as 3 mill.
● Super Network Mode:one to one (one scanner to one receiver), more to one (several scanner to one receiver).
● Support to put prefix or suffix before or after scanned data,support for deleting or adding
Technical parameters
This is YHD-6100LW 1D Wireless Barcode Scanner with Base
Transmission mode : 2.4G
Storage : 100000 barcodes
Distance : 100m
Material: ABS+PC
Working current : 3.5Vx40mA
Standby current : 18uA-5mA
Working time : 3 to 10 days
Charging power : 5V-400mA
Scanning type : bi-directional
Battery : 3.7V-1500mAh
Indication : Buzzer & LED
Depth of Field : 3mil 2mm-100mm
CPU : ARM 32-bit Cortex
Resolution : 3mil
Decoding speed : 300scans/sec
BER : 1/20million,10mil 2mm-350mm,15mil 5mm-500mm,30mil 10mm-800mm
Trigger Mode : Button,Continuous
Scanning angle : Angle of rotation±30°,inclination± 45°,declination ± 60°
Anti-interference : No influence working under strong light and sunshine
Decode Capability : UPC/EAN,with complementary UPC/EAN,Code128,Code39,Code 39Full ASCII,Coda bar,industrial /Interleaved 2 of 5 Code93,MSI,Code11,ISBN,ISSN,China post,GS1 Databar,Code32 etc.
Button life : 800,000 times laser life : 12000 hours
Drop test : 2m
Interface : USB,USB-COM
Certificate : CE,FCC,ROHS,IP54,FDA,SGS
Packaging Details
Standard List: Scanner*1, Cable *1, Base*1, Manual *1, Box *1
Single Package Size: 185*120*86mm
Single Gross Weight: 0.4kg
30pcs/CTN Carton Size: 438*380*380mm
30pcs/CTN Carton G.W.:14Kg, N.W:12Kg
