Demountable Prefabricated Site Office Building High Strength
Folding Container Parameters
|
Supporting equipment: |
Parameters: |
| Wall: Thermal insulation rock wool color steel composite sandwich panel. |
Roof bearing: 50 Kg/m² |
| Floor: Adopt A-glass Fire-proof board. |
Walkway bearing capacity: 200 kg/m². |
|
Windows: The window adopts push-pull series made of aluminum alloy for anti-theft. |
Wall deformation coefficient: 300 kg/ m² |
| Security door: Anti-theft Steel door is to be used. |
Fire resistance rating: Grade A fire resistance, |
| Electrical system: circuit protector, five-hole socket, LED lamp, air conditioning socket, light switch. |
Anti Earthquake: 10 Grade. |
| Top: 104 type color steel tile is used for the outer top, and 831 type ceiling tile is used for the inner top. |
Anti- wind resistance rating: 11 wind resistance rating |
Product Details
| Classification | Heading | Specification |
| Size | Length | 5800mm |
| Width | 2500mm | |
| Height | 2450mm | |
| Steel Structure | Pillar | Galvanized pipe |
| Beams | Galvanized pipe | |
| Board | Roof | 14.5㎡ thermal insulation rock wool |
| Wall | 50mm thermal insulation rock wool color steel plate | |
| Ground | 15mm A-class fire-resistant cloth board | |
| Accessories | Window | 950mm*1200mm aluminum alloy anti-theft integrated |
| Door | 860mm*1980mm special anti-theft door for folding box | |
| Paint | Integral frame protective coating | Carpoly High Gloss Enamel |
Characteristical
- Fast installation speed (3-5 minutes for completing the installation).
- The whole steel structure is made of Q235B galvanized material
- Anti-theft Steel door is to be used. Composite sandwich panel which can reach A-class fire prevention.
Advatage
Safe Using
Stable Structure
Technical Details

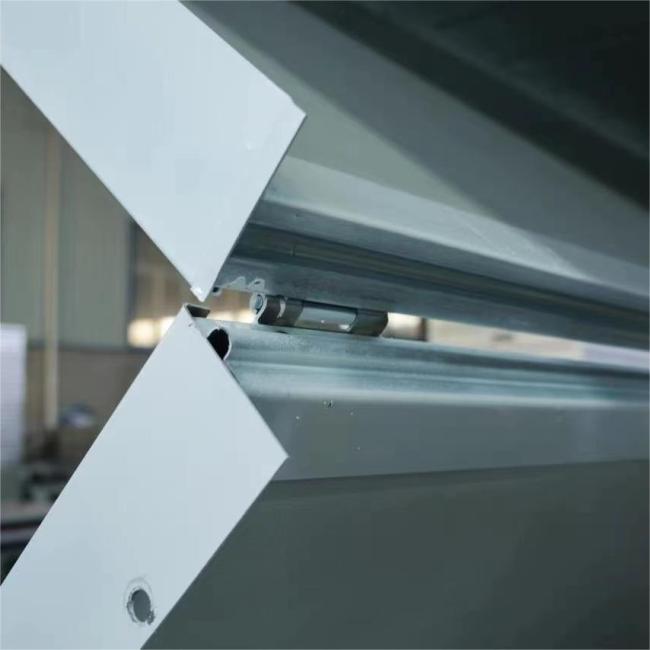

Customized concave-convex galvanized heterosexual rectangular tube frame
The entire frame profile of the folding box is formed at one time by large-scale high-frequency welding equipment. All its joints are designed with concave and convex bites, which have excellent sealing performance and are windproof, leakproof and rainproof.
FAQ
Q1: What is a Folding Container House?
A1: A Folding Container House is a portable and modular housing solution that can be quickly assembled and disassembled for easy transportation and relocation.
Q2: What are the main features of a Folding Container House?
A2: The main features of a Folding Container House include its collapsible design, durability, flexibility in configuration, and ability to withstand various weather conditions.
Q3: How long does it take to assemble a Folding Container House?
A3: The assembly time for a Folding Container House depends on its size and complexity. However, on average, it can be set up within a few hours to a few days.
Q4: What materials are used in the construction of Folding Container Houses?
A4: Folding Container Houses are typically made from high-quality steel frames and durable, weather-resistant materials such as reinforced steel panels and insulated wall panels.
Q5: Can a Folding Container House be customized?
A5: Yes, Folding Container Houses offer customization options to meet specific requirements. They can be modified in terms of size, layout, interior design, and additional features like windows, doors, and insulation.
Q6: Are Folding Container Houses suitable for permanent living?
A6: Yes, Folding Container Houses can be used as permanent living spaces. They are designed to provide comfort, functionality, and can be equipped with all the necessary amenities required for long-term occupancy.
