MBR Membrane Elements for Wastewater Treatment with PVDF material

Hot Sales MBR Membrane Modules for Wastewater Treatment with PVDF material

MBR is a new water treatment technology that combines a membrane separation unit with the biological treatment unit. It has broad application prospects.

MBR is mainly composed of bioreactor and membrane module. Sewage first enters the bioreactor. Pollutants are degraded by microorganisms in the reactor.

The membrane module is mainly used to intercept microorganisms and filter effluent.

3. Technical Parameter of Membrane Module

Features

• Works through virtually any raw water quality change or upset
• Reduction of nutrients like nitrogen and phosphorus by control of the process
• Fully automated for simplified design and operation
• Outstanding technology for virtually all wastewater treatment applications – from greenfield plants to retrofits to water reclamation projects
• Modular technology allows extension of plant treatment capacity
• Single header and centrally located air nozzles reduce aeration by up to 50% for energy savings
• Strong PVC module housing reduces weight for ease of handling and installation

2. Typical parameters of MBR units.

4.. Structure of Membrane Modules and Frames:

A. Structure of MBR Modules

B.Structure of MBR Frames

5. Product Features

-- All the frames are made of SS 304 or SS 316 stainess steel with reliable frames.

      -- Every modules can be pulled out or putted in very conveniently for they are installed into UPVC Groove from top to bottom.

      -- Every modules have flexible tubes connecting to collecting pipes.

      -- Every modules have independent air blowing tube. There are additional air-blowing tube at the bottom of the frames.

      -- All the modules have an added patented design air blowing tube to enhance the efficiency of the air blowing onto the membrane surface.

      -- Permanent Hydrobility Membrane

      -- Strong strength, the broken strength more than 50MPa

6. Application of MBR Units:

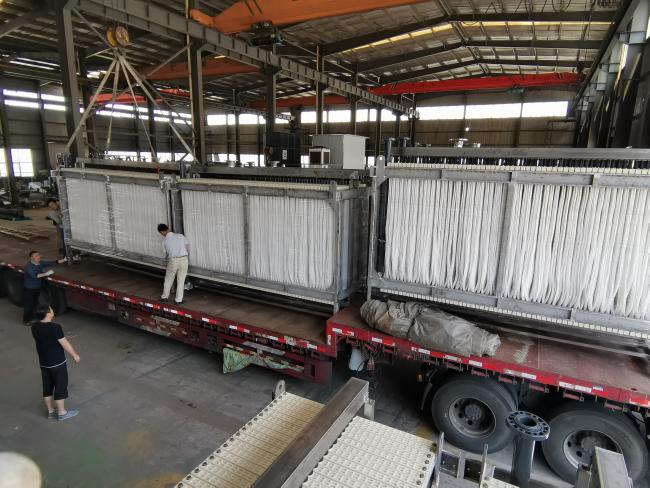

      The whole installation and application process of our MBR modules are described as the following photo:

A. MBR unit of KH-MBRMD-8×8-CO-PVDF with total membrane area of 64 m2/unit.

B. MBR unit of KH-MBRMD-15×60-CO-PVDF with total membrane area of 840 m2/unit.

Why Choose US?

1). Over 20 years experience in UF and MBR membrane
2). Excellent cooperation partner
3). Own an excellent technical team
4). Advanced R & D capability
5). International management system(ISO9001)
6). Located in Jiangsu, convenient for export transportation.

Our Service

1). MBR membrane technical consulting,
2). MBR membrane application engineering design,
3). MBR system manufacturing, installation and commissioning,
4). Different membrane dimension, material like PP, PVDF etc.,can be customize according to your requirements
5). 12 months warranty
