1500mm SS304 Mbr Technology Process Hollow Fiber Mbr Membrane 0.1um

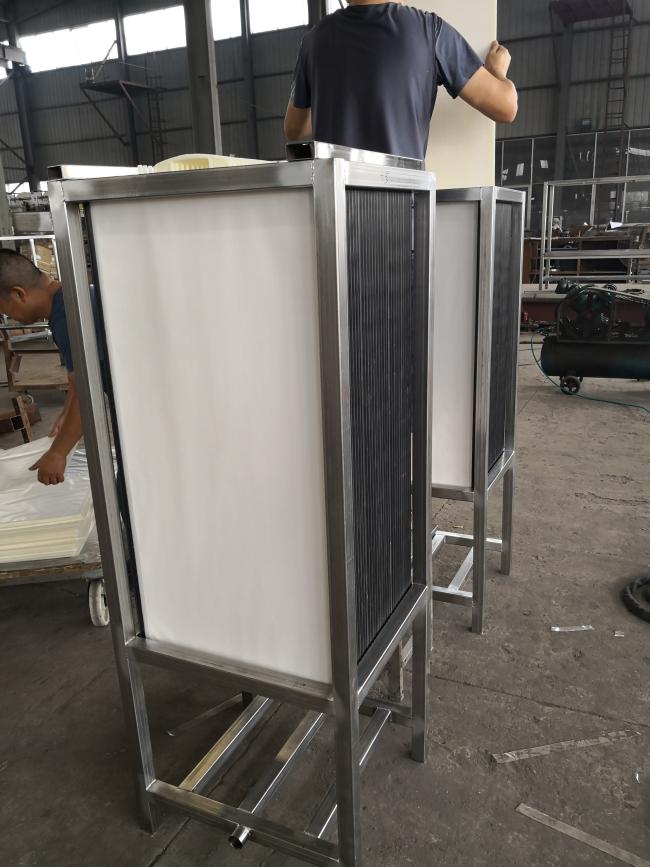

Flat MBR SS304 Rack Bio Reactor for Sewage Treatment with PVDF material 0.1um pore size
Flat Sheet Membrane
MBR (Membrane Bio-reactor) is a membrane separation technology with biological degradation. The membrane module can take the places of the secondary sedimentation tank, a large number of microorganisms are intercepted, which can increase quantity of micro flora, improve the sewage treatment capacity and efficiency, so that the effluent quality and volume load have been greatly improved, and the water can be used as reclaimed water.
| Water quality | Traditinal technology | MBR technology |
| COD ( mg / L ) | <100 | <30 |
| BOD ( mg / L ) | <30 | <8 |
| TSS ( mg / L ) | <30 | <1(near zero) |
| Turbidity ( NTU ) | <2-5 | <1 |
| Bacterial ( MPN / L ) | 103-104 | <100 |
Membrane bioreactor (MBR) is a highly efficient wastewater treatment technology combining membrane separation and a conventional activated sludge process. The MBR unit removes the need for secondary sedimentation, greatly improving solid-liquid separation and producing effluent of very high quality.
These membranes are suitable for applications ranging from industrial wastewater treatment through to domestic sewage, with treatment being of a standard high enough for reuse. The 0.1-micron nominal pore size of the membranes is sufficiently fine to remove virtually all bacteria and protozoa from the wastewater.
Membrane Bioreactor MBR sheet (pcs.)
| Items | Standard type | Long type |
| Model | KH-MBRP-80-PVDF | KH-MBRP-150-PVDF |
| Size (LxWxT) | 1000×490×7 | 1850×510×7 |
| Membrane effective area (m²) | 0.8 | 1.5 |
| Weight (kg) | 3 | 4.5 |
| Permeate flux [L/ (pc.d)] | 320-480 | 600-900 |
| Membrane material | PVDF | PVDF |
| Membrane pore size (μm) | 0.1 | 0.1 |
| Plate material | ABS | ABS |
| Air flow rate [L/(min.pc)] | ≥ 10 | ≥ 12 |
| pH | 2 ~ 13 | 2 ~ 13 |
| Output turbidity (NTU) | < 1.0 | < 1.0 |
| Output SS (mg/1) | ≤ 1.0 | ≤ 1.0 |
| Chemical cleaning | ~ 5,000mg/1 NaCIO | ~ 5,000mg/1 NaCIO |
Module*(All customized models are available by online inquiry)
|
Membrane Module |
KH-MBRP80-80 | KH-MBRP80-100 | KH-MBRP150-120 | KH-MBRP150-150 |
| Flux(m3/d) | 20-40 | 25-40 | 60-90 | 75-110 |
| Number of membrane elements (pcs.) | 80 | 100 | 120 | 150 |
| Membrane effective area (m²) | 64 | 80 | 180 | 225 |
| Size (LxWxT)(mm) | 1200×610×1500 | 1600×610×1500 | 1900×630×2350 | 2350×630×2350 |
| Frame material | SUS304 | |||
| Plate material | ABS | |||
