Water Purification 0.03um Ultrafiltration Water Treatment Reverse Osmosis System Membrane

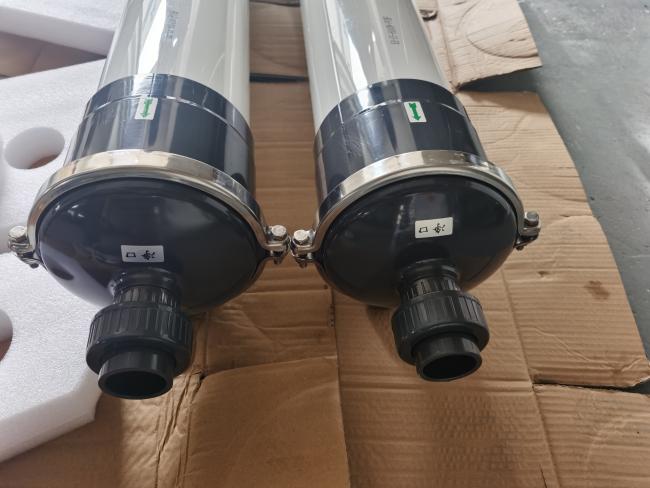

KH-UF-SFX2860 Ultra-filtration Membrane System for Pure Water Purification with PVDF 0.03um pore size
ultrafiltration (UF) hollow-fiber membranes are designed with a robust life expectancy, giving you confidence in your water treatment system’s operation and helping you comply with regulatory requirements.
hollow-fiber membranes are utilized for drinking water, wastewater, tertiary and water reuse applications, as well as industrial feedwater and reverse osmosis (RO) pretreatment. The advanced technology is operational in thousands of municipal, industrial, and commercial applications worldwide. In addition to a smaller treatment plant footprint, hollow-fiber membranes can treat virtually any raw water quality to the quality needed.
|
Size and weight
|
Model | KH-UF-SFX2860-PVDF |
| Module Diameter (OD, mm) | Φ200 mm | |
| Module Length ( L1, mm) | 2000 mm | |
| Module Length (L2, mm) | 2130 mm | |
| Module Length (L3, mm) | 2320 mm | |
| Module Length (L , mm) | 2360 mm | |
| Operating Type | Outside to Inside | |
| Membrane Area | 52 m2 | |
| Dry weight of the module | 62 Kg | |
|
Parameters |
Shell material | UPVC |
| Membrane Material | PVDF | |
| Membrane pore size | 0.03μm | |
| Inner diameter of the hollow fiber | 0.7 mm | |
| Outer diameter of the hollow fiber | 1.3mm | |
| Turbidity of Permeating water | ≤ 0.2 NTU | |
|
SDI value of permeating water
|
≤ 3 | |
|
Flux rate of purified water (0.10MP,20℃) |
≥ 8000L/H | |
|
Typical Process
|
Temperature Range | 5-45 ℃ |
| PH Value Range | 2-13 | |
|
Permeating Flux rate for different Water |
40 -80 l/m2/hr | |
| Operating Pressure | ≤0.12MPa | |
| Maximum Inlet Pressure | 0.2MPa | |
| Backwashing flux rate |
1.5-2.0 times of Permeating Flux |
|
| Backwashing times | Once per 30-120 minutes | |
| Chemical cleaning online during backwashing | Once per 7-14 days |
UF membranes provide a physical barrier to suspended solids and pathogens to consistently produce a high-quality, low-turbidity, and low-SDI effluent. UF membranes offer a variety of benefits for our customers.
- Pressurized or immersed membranes to suit the site requirements.
- Reinforced high-packing-density hollow fibers allow for greater output in the same footprint and helps reduce capital and lifecycle costs for the application.
- Physical UF barrier provides consistent high-quality effluent exceeding stringent regulatory requirements through virtually any change in raw-water quality.
- Low lifecycle cost optimized through extended membrane life and low energy and chemical use.
- Commitment to innovation drives down cost of ownership over the life of the treatment plant
![ac.png]()
The whole installation and application process of our UF modules are described as the following photo:
