Machinery Environmental Machinery Water Treatment Machinery

Submerged High Flux Hollow Fiber Reactor Wastewater Biobarrier Membrane Bioreactor

Price Negotiable
Price: USD14/M2
MOQ: 100M2
Delivery Time: within 10 days
Brand: CNKHONG
Product Description

Submerged Hollow Fiber Membrane Bioractor for Industrial Wastewater Treatment with PVDF 0.05um pore size

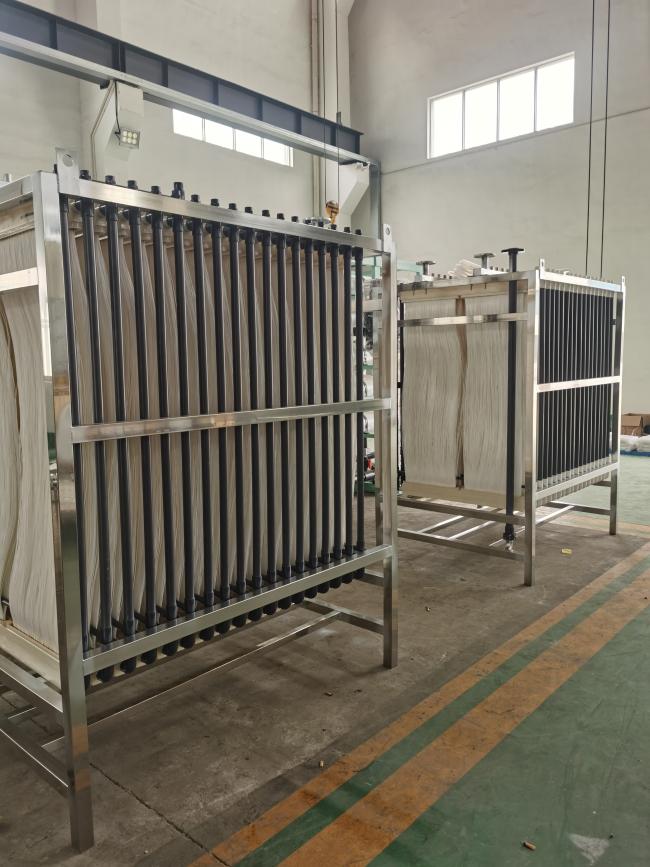

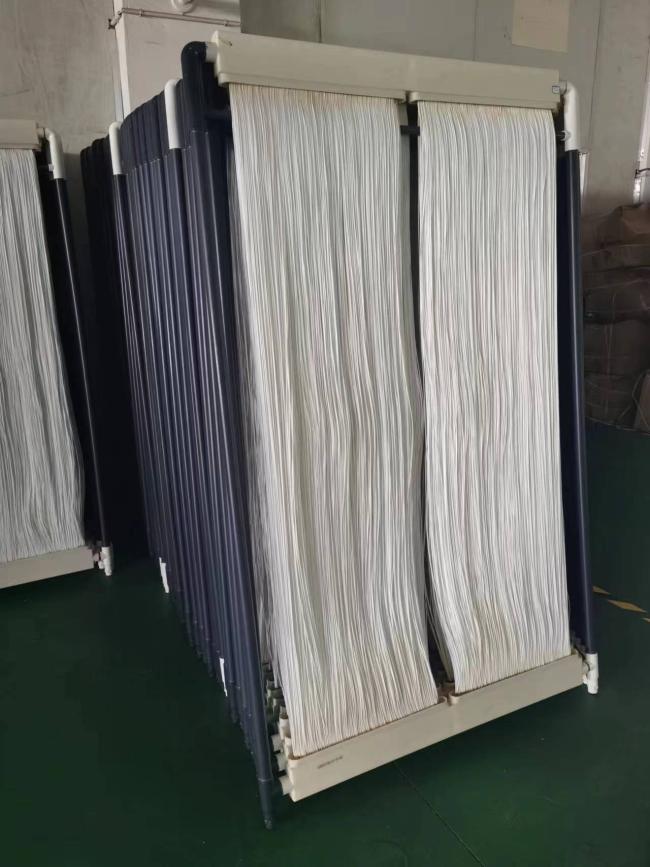

submerged Hollow fiber MBR membrane



Description:

1 PVDF Material:High tolerance of Oxidant cleaning

2 Better filter fineness:High quality of permeate

3 Advanced material modification technology:High anti-fouling quality

4 High flux -- little filtration pressure,energy conservation

5 High strength of membrane:Not easy to break









Specification
Membrane Material
PVDF+PET
Operation Mode
Outside-in
Nominal Pore Size
0.05um
Inside/Outside Diameter
0.9/2.2mm
Available Membrane Area(sq.m.)
15
30
Dimension(mm)
1550x645x47mm
1550x1260x47mm
Encapsulation Material of Bottom
Epoxy resins/polyurethane
Dry weight
8kg
12kg
Wet weight
18kg
25kg





Operation Conditions
Filtering Type
Vacuum Suction
Temperature
5-40℃
Long Running pH
2~20
Filtrate Flux
10-25LMH
Max TMP
60KPA
Backwash Flux
30-50LMH
Clean In Place pH
1~11
Max NaCIO Cleaning concentration
5,000mg/L


Water Quality
Turbidity of Permeate
≤0.5NTU
SDI15 of Permeate
≤3.0
Suspended matter
≤2mg/L

Application Area

1.reverse osmosisi pretreatment and posttreatment

2.impurity,filtration sterilization,concentration in food ,pharmaceutical and fermentation industry,etc.

3.water reuse

4.trearment of drinking water

Product features

1.High water flux with good permeability

2.Allowing higher suspended solids content and more feed grain diameter in water .

3.High filtration precision ,optimal interception performance

4.Hydrophilic modification with independent intellectual property rights ,strong hydrophilicity.

5.Excellent resistance to pollution and high mechanical strenght .
