0.1A Mini DC Brush Motor 3350RPM Door Lock Actuator Motor
KG-033 Mini DC Brush Motor 0.1A 3350RPM Used For Door Lock Go-Gold

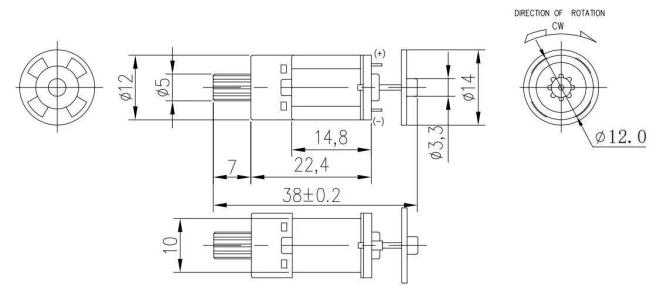

Outer dimensions
Overview
Essential details
Warranty:3years
Place of Origin:Guangdong, China
Brand Name:GO-GOLD
Model Number:KG-033
Usage:door lock
Type:Brush Motor
Torque:Customised
Construction:Series Wound
Commutation:Brush
Protect Feature:Waterproof
Speed(RPM):1000-3000RPM
Continuous Current(A):1-2A
Efficiency:IE 2, 30-40%
Voltage:12V
Nosie:Low
Power:10-30W
Weight:1kg
Motor type:Dc motor
Application:Door lock
Keyword:Dc motor
MOQ:500
Metriel:Copper wire
Packaging & delivery
Selling Units:Single item
Single package size:20X20X10 cm
Single gross weight:1.000 kg
Lead time:
| Quantity(pieces) | 1 - 100 | 101 - 1000 | 1001 - 10000 | >10000 |
| Lead time (days) | 7 | 15 | 30 | To be negotiated |
Product Description
| Voltage | 12V | No load spark level | 1.5 |
| No load current | 0.1A | No load speed | 3350RPM |
| Input power | 10-30W | Voltage withstand test | AC 100V/5mA/Sec |
Samples
A DC brush motor is a type of DC motor that has a fixed main magnetic pole and brush installed on the stator, and an armature winding and commutator installed on the rotor. The electrical energy of the DC power supply enters the armature winding through brushes and commutators, generating armature current. The magnetic field generated by the armature current interacts with the main magnetic field to generate electromagnetic torque, causing the motor to rotate and drive the load. Due to the presence of brushes and commutators, brush motors have a complex structure, poor reliability, multiple faults, heavy maintenance workload, short lifespan, and are prone to electromagnetic interference due to commutation sparks.
FAQ
QUESTION AND ANSWER
Q: Are you a factory or a trader?
A: We are a factory, established in 2015.
Q: How about the sample order?
A: If you have a large order, we can provide you with 1-4 free samples. freight to be borne by the customer
Q: Can we customize the product electromechanical solutions?
A: Of course, we have professional engineers to provide you with solutions as client's size and specs requirments.
Q: How long is the delivery time of the product?
A: Generally speaking, the sample order needs 7 days after the specification approved by client, Bulk order needs 1 months, the repeat order could by shipment within 10-20days.
Q: Before the sample making, What parameter should I provide before the sample making?
A: We need to know the Nominal Voltage, Free-load and on load peformance, Rotation Direction, Shaft Diameter and Length. If there is other special requirement, please let us know in advance such as working current limits, EMC limits, noise limits, expected life time.
