Essential details



Warranty:3years

Place of Origin:Guangdong, China

Brand Name:Go-Gold

Model Number:KG-4220

Usage:Home Appliance

Type:Dc motor

Torque:Customised

Construction:Series Wound

Commutation:Brush

Protect Feature:Waterproof

Speed(RPM):1600-4000RPM

Continuous Current(A):0.9-2.5A

Efficiency:IE 3





DC Brush Motor KG-4220 Product Picture

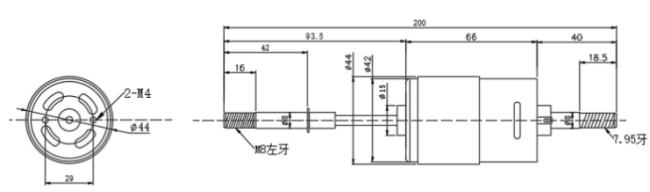

Outer dimensions





DC Brush motor

First let us look at the stator. As the name implies, the stator generates a stationary magnetic field that surrounds the rotor and this magnetic field is generated by either permanent magnets or electromagnetic windings.

It uses carbon brushes as the two contacts of the motor power supply, uses speed control knobs and controllers to control, and achieves infinite speed regulation of 0-20 km/h for electric bicycles through secondary gear reduction and overrunning clutches.

The brushed high-speed motor used has a high gold content, strong motor reduction gear strength, good wear resistance, and reasonable design, resulting in a low repair rate; Moreover, the cost of repairing and replacing gears and motors is relatively low, effectively reducing the maintenance cost of electric bicycles; And the brush motor can achieve easy manual cycling through the overrunning clutch and flywheel.

Brushed motors use brush mechanical commutation.

DC brush motor is a rotating motor that contains a brush device to convert electrical energy into mechanical energy (electric motor) or mechanical energy into electrical energy (generator). Brushed motors are the foundation of all motors, with characteristics such as fast start, timely braking, smooth speed regulation over a large range, and relatively simple control circuits.

DC brush motor do not require a controller to switch current in the motor windings.

Instead, it uses a mechanical commutation of the windings. A copper sleeve ( commutator ), resides on the axle of the rotor. As the motor turns, carbon brushes slide over the commutator, coming in contact with different segments of the commutator. The segments are attached to different rotor windings, therefore, a dynamic magnetic field is generated inside the motor when a voltage is applied across the brushes of the motor. The brushes and commutator are the parts of a brushed DC motor that are most prone to wear.
