GO-GOLD KG-8552DC23 DC Series Motor 230V 110W 6500RPM For Coffee Machine

DC Series Motor 230V 110W 6500RPM For Coffee Machine GO-GOLD KG-8552DC23

Essential details

Brand Name: Go-Gold

Power: 110W

Voltage: 230V

Customized Accept: Yes

Torque: 150 mN.m

Type: DC motor

Warranty: 3years

Model Number: KG-8552DC23

Current: 0.4A

Application: Coffee Machine

Place of Origin: Guangdong, China

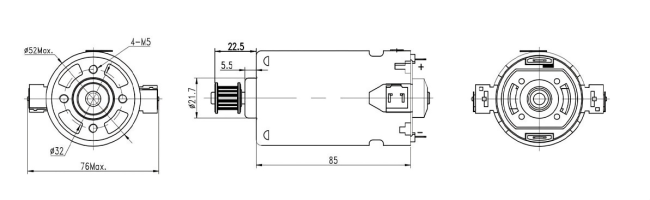

Drawing

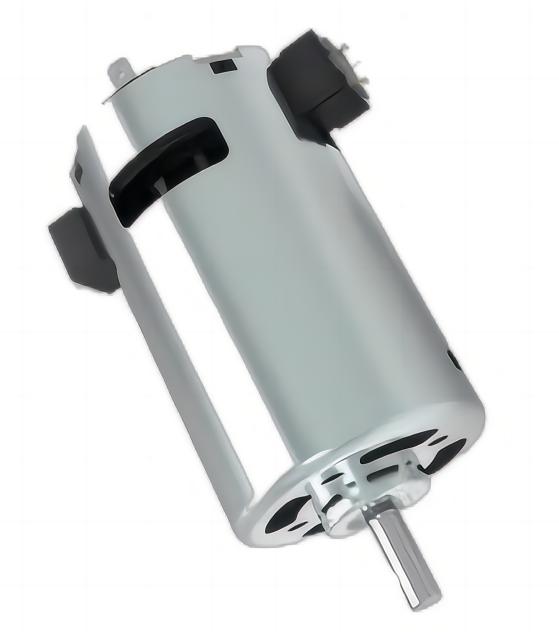

Sample

In a DC series motor, the field winding is internally connected in series to the armature winding. Series DC motors offer high starting torque, but can never operate without a load and are capable of moving very large shaft loads when first powered on. Series DC motor is also called series wound motor.

In a DC series motor, the field winding is connected to the armature in series. The field intensity varies with the change of electric weight current. When the speed of the load is reduced, a better torque is generated by the excited motor. Its starting torque exceeds that of different types of DC motors.

In addition, it can more easily dissipate the heat that accumulates in the winding due to carrying a large amount of current, and its speed varies greatly between full and empty load. When the load is removed the motor speed increases and the current through the armature and excitation coils decreases. It is dangerous to run large machines without load.

Since series field opposes the shunt field, the flux is decreased as load is applied to themotor.  This results in the motor speed remaining almost constant or even increasing with increasein load (because, Ne E/).  Due to this reason, there is a decrease in the rate at which themotor torque increases with load.

Our Adventage

1.With the best after-sale service to satisfy every customer.

2.With the good principle "quality and reputation always come first".

3.With the professional technical guidance and strong development ability.

4.With Advanced automatic machine and production line for ensure the high efficiency ,excellent quality and favorable cost.

5.Our company is specialized in the production of motor with its own factory with 8 years of production experience.

Our company specialized in manufacturing in various of Universal motor, DC motor, Induction motor and Brushless motor that are widely applied to household appliances, intelligent home, electric tools, medical equipment etc.

6.Go-Gold Motor is a company that provides professional technical guidance and best after-sale service to satisfy every customer.
