1500RPM Electric Curtains Motor 24V 0.5Nm 0.26A Gear Motor For Electric Blinds

Electric Curtains Motor 24V 0.5Nm 0.26A Gear Motor For Electric Blinds

Lead time:

Product Description


Essential details

Feature: Electric Curtain

Brand Name: Go-Gold

Model Number: KG-6524GM24

Rated Voltage: 24V

Rated Power: 2W

Current: 0.26A

Torque: 0.5Nm

Warranty: 3years

Rated Speed: 1500RPM

Efficiency: 70%

Certification: CCC

Place of Origin: Guangdong, China

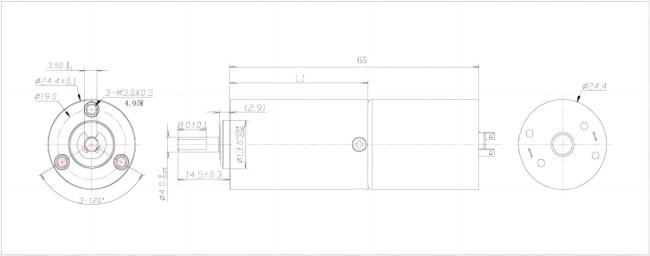

Drawing

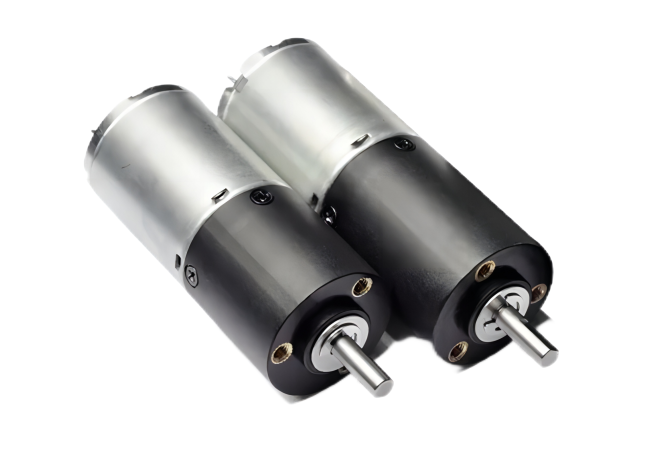

Sample

In case of a DC-motor the speed curve from NO-LOAD speed to stall is rather linearand totally usable. The current also rises along a linear curve from NO-LOAD currentto stall current. More current means more heat in the winding. There is the currentvalue that develops the max temperature for the winding when occur continuously. Unlike AC-motors, are DC-Motors usable with a starting torque e.g. 4 timesnominal torque, though the motor should be used with such a load only intermittently.

The speed ofa DC-Motor depends on the supply voltage. By using a double voltage. the speed will be double as well and by using half voltage, the speed is naturally halftoo. When the supply voltage is doubled from the nominalvoltage, the input power will be 4 times bigger. That means a lot of current to heatup the winding, hence a lot of attention should be paid to the duty cycle when usingwith over voltage, though the current depends on the torque. The case with under voltage is the same. With half voltage the power will decrease toone quarter, hence PWM drive is recommended to use as speed control.

Go-Gold motor designs motor parameters, specifications, styles and other requirements according to customer project requirements, and provides planetary reducer design, manufacturing, procurement, assembly services, complete supply of intelligent electric motors, which can greatly reduce losses, costs, improve quality, efficiency, delivery time, and meet customer needs.

Our Adventage

1.With the best after-sale service to satisfy every customer.

2.With the professional technical guidance and strong development ability.

3.With Advanced automatic machine and production line for ensure the high efficiency ,excellent quality and favorable cost.

4.Our company is specialized in the production of motor with its own factory with 8 years of production experience. Our company specialized in manufacturing in various of Universal motor, DC motor, Induction motor and Brushless motor that are widely applied to household appliances, intelligent home, electric tools, medical equipment etc.

5.Go-Gold Motor is a company that provides professional technical guidance and best after-sale service to satisfy every customer with the good principle "quality and reputation always come first".
