Smart Home Motor 12V 1.9W 2.4A 7800RPM Small Gear Motor Go-Gold

Smart Home Motor 12V 1.9W 2.4A 7800RPM Small Gear Motor Go-Gold

Lead Time

Essential Detials

Warranty: 3Years

Place of Origin: Guangdong, China

Brand Name: Go-Gold

Model Number: KG-1222GM12

Usage: Sweeping Robot

Type: Small Gear Motor

Stall Torque: 17.5mN.m

No-load Speed: 9500RPM

No-load Current: 70mA

Product Name: Sweeping Robot Motor Gear Motor

Certification: ISO

Rated Voltage: 12V

Keywords: Sweeping Robot Motor

Noise: Low

Performance specification

Dimensions

Motor Application

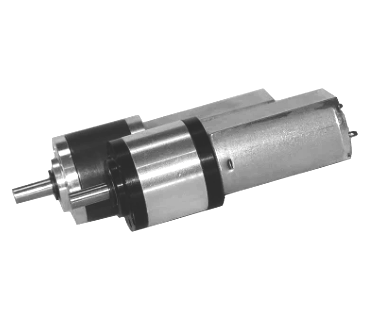

Motor Picture

Working Principle of Gear Motor

Gear motors generally use motors, internal combustion engines or other high-speed running power to drive large gears through the small gears on the input shaft of the gear reducer achieve a certain reduction purpose. They adopt a multi-stage structure, which can greatly reduce the speed. To increase the output torque of the reduction motor, its core function of "power-increasing deceleration" is to use gear transmission at all levels to achieve the purpose of deceleration. The reducer is composed of gear pairs at all levels.

Features of Gear Motor

• High efficiency: Almost no energy is lost when transmitting power.

• Large torque: It can output large torque to meet various load conditions.

• Good stability: smooth operation, low noise, and not prone to vibration.

• Long service life: simple structure, few parts, low failure rate, and easy maintenance.

• Safe and reliable: no sparks, no vibration, no radioactive pollution, safe and reliable.

The Role of Gearbox in Gear Motor

• Acceleration and deceleration are often referred to as variable speed gearboxes.

• Change the transmission direction. For example, we use two gears to transmit the force vertically to another rotation axis.

• Change the rotational torque. Under the same power conditions, the gear that rotates faster achieves the purpose of separating the engine from the load.

• Clutch function: We can separate the engine from the load by separating the two originally meshed gears. Such as brake clutch, etc.

• Distribute power. For example, we can use one engine to drive multiple slave shafts through the main shaft of the gearbox, thereby realizing the function of one engine driving multiple loads.

The Gear Motor Mainly Has the Following Three Functions

1. Deceleration: The speed of the motor reaches the required speed through the deceleration gearbox, which is often referred to as the output speed;

2. Increase torque: Under the same power, the slower the output speed, the greater the torque, and vice versa.

3. Change the transmission direction: The gearbox reduction motor can transmit torque 90 degrees vertically.
