Smart Home Motor DC24V 1000RPM 100W 28mm Low Nosie for Sweeping Robot

Smart Home Motor DC24V 1000RPM 100W 28mm Low Nosie for Sweeping Robot

Lead Time

Performance specification

Essential Detials

Warranty: 3Years

Place of Origin: Guangdong, China

Brand Name: Go-Gold

Model Number: KG-2838GM24

Usage: Sweeping Robot

Type: Gear Motor

Rated Torque: 17 kg.cm

Rated Speed: 1000RPM

Rated Current: 350mA

Product Name: Sweeping Robot Motor Gear Motor

Certification: ISO

Rated Voltage: 24V

Keywords: Sweeping Robot Motor

Noise: Low

Dimensions

Motor Application

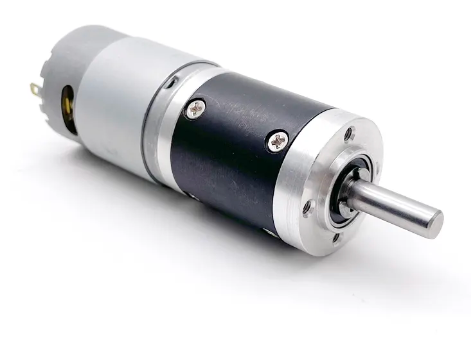

Motor Picture

Gear Motor Classification

Gear Motor can be divided into the following types according to their transmission methods and structural characteristics:

• Direct coupling gear motor: It is composed of an electric motor and a gearbox. The output shaft is coaxial with the electric motor to meet the needs of high torque and low speed operation.

• Reduction gear motor: It consists of an electric motor, a reducer and an output shaft. It can provide different output speeds and torques and is suitable for various load conditions.

• Planetary gear motor: It consists of a sun gear, a planet gear and an internal ring gear. It outputs power through a sleeve or output shaft. It is small in size and has high transmission efficiency.

• Helical gear motor: It consists of a helical gear and a vertical output shaft, which can achieve high-power transmission and smooth operation.

The Main Functions of the Gear Motor Include the Following Two Points

• Decrease the speed and increase the output torque at the same time. The torque output ratio is based on the motor output multiplied by the reduction ratio, but be careful not to exceed the rated torque of the reducer.

• Deceleration also reduces the inertia of the load, and the reduction in inertia is the square of the reduction ratio.

The Gear Motor is actually a power transmission mechanism that does not generate power by itself. Its function is to use different gear sizes and speed converters to reduce the number of revolutions of the motor to the desired number of revolutions; and obtain greater torque. of institutions. Of course, some people will have doubts. Isn't it enough to just ignore the reducer and adjust the speed of the motor? In fact, it is not the case. The reducer is a mechanism that obtains larger torque when changing the speed. The motor is directly connected to the equipment. When the equipment is running, the load on the motor is very large, which will cause great damage to the motor. However, it is different after a reducer. For example, a reducer with a reduction ratio of 100, when the machine is running The load on the motor is only one percent, thus reducing the loss of the motor. In addition, if the reducer is damaged, you only need to replace the gear, and the cost is much lower than that of the motor. If the motor is damaged, it will undoubtedly lead to the expansion of the accident.
