Smart Home Motor 12000RPM DC24V 1.6A Brushless Fascia Gun Motor GO-GOLD

Warranty: 3 Years

Place of Origin: Guangdong, China

Brand Name: GO-GOLD

Model Number: KG-27250DC24

Usage: Fascia Gun

Type: Brushless Motor

Torque: 200-2400G.CM

Commutation: Brushless

Protect Feature: Totally Enclosed

Speed(RPM): 12000RPM

Continuous Current(A): 0.37A

Efficiency: Other

Product Name: BLDC Fascia Gun Motor

Performance specifications

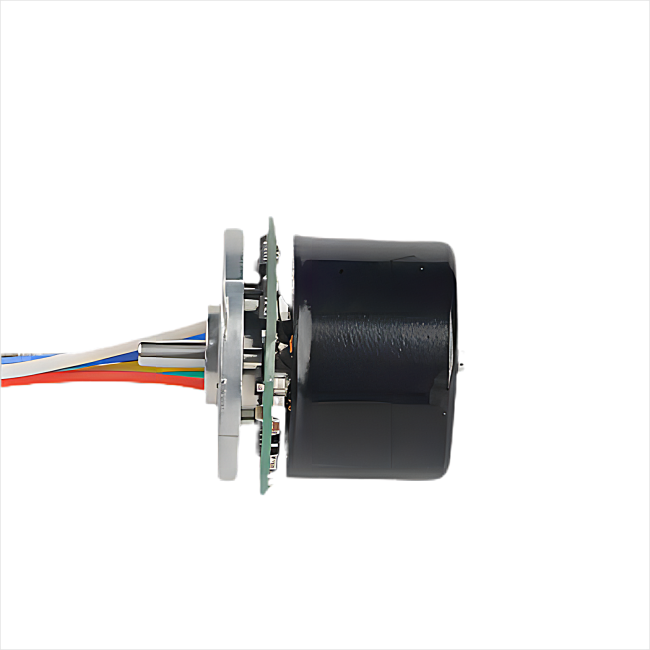

Motor Picture

Brushless motor, also known as permanent magnet synchronous motor, is an electric motor based on the action of electromagnetic field. Unlike traditional brush motors, brushless motors achieve synchronous rotation of the rotor through an electronic control system, without the need for brushes and commutators.

The working principle of a brushless motor is based on two main parts: the rotor and stator.

1. rotor part: The rotor is composed of permanent magnets, which maintain a certain collision field throughout the entire operation process. This magnetic field can be generated by a permanent magnet or by an electromagnetic coil.

2. stator part: The stator is composed of multiple sets of coils, which are called the driving phase. The magnetic field generated by the current passing through the driving phase interacts with the rotor magnetic field.

The working principle is as follows:

1. Initial state: When the motor first starts working, the coil of the driving phase cuts off the current supply. At this time, the rotor is not subjected to any external force and remains in a stationary state.

2. Detection position: A rotating position sensor is used to detect the position of the rotor. This sensor can be a Hall sensor, photoelectric sensor, or a complex commutator in a brushed motor.

3. Electronic control system: Based on the signal from the position sensor, the electronic control system determines the current position of the rotor and provides the correct current to the drive phase's wire circle

4. Magnetic field intersection; According to the change in current, the driving phase coil generates a different set of electromagnetic fields. These magnetic fields interact with the magnetic field of the rotor, generating electromagnetic forces.

5. Rotation: Due to the electromagnetic force acting on the rotor, it begins to rotate. The electronic control system will monitor the position of the rotor in real time and adjust the direction and magnitude of the current as needed to maintain synchronous rotation of the rotor.

Through the above working principles, brushless motors can provide efficient and reliable rotation with lower noise and vibration levels. Widely used in many devices and applications, such as fascia guns, drones, and household appliances.
