Smart Home Motor 10000RPM 24V 62W BLDC Motor For Message Chair Go-Gold KG-3816DC24 Permanent Magnet China

Warranty: 3 Years

Place of Origin: Guangdong, China

Brand Name: GO-GOLD

Model Number: KG-3816DC24

Usage: Message Chair

Type: Brushless Motor

Efficiency: 68%

Commutation: Brushless

Protect Feature: Explosion-proof

Speed: 1000-10000RPM

Construction: Permanent Magnet

Noise: Low Noise Level

Keywords: BLDC Message Chair Motor

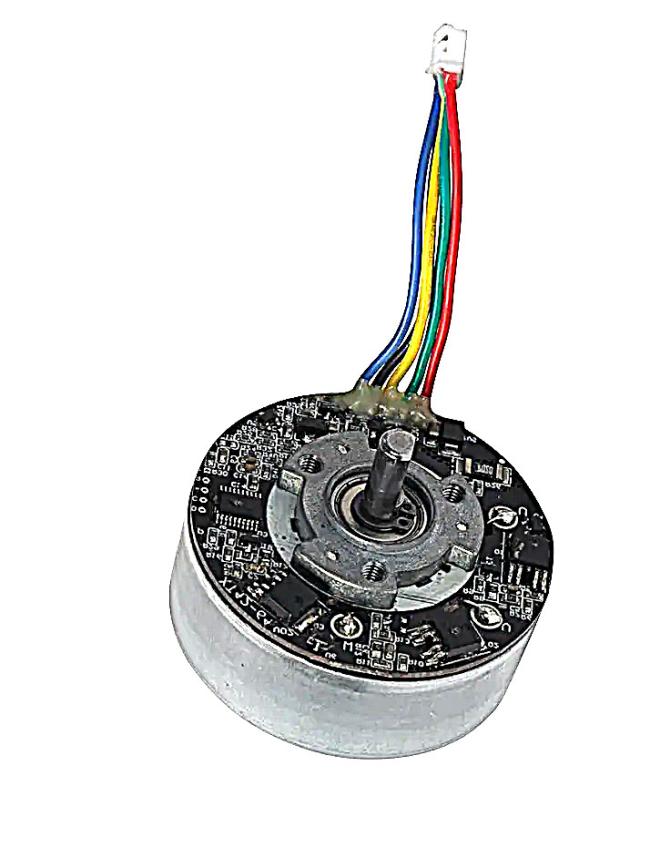

Motor Picture

Performance specifications

Drawings

A massage chair is a home product that provides a comfortable massage experience, and one of its core components is the motor. The motor used for the massage chair needs to have a certain level of power, stability, and durability to ensure the normal operation and long-term use of the massage chair.

Brushless motor

Brushless motor is a new type of motor, which has the advantages of high power, high efficiency, long service life, and low noise. The brushless motor adopts an electronic controller to control the speed and force, which can achieve various massage methods and forces. In addition, brushless motors also have high efficiency and stability, which can meet the long-term operation needs of massage chairs.

High speed motor

High speed motors are a special type of motor with the advantages of fast speed, low noise, and long lifespan. The speed of the high-speed motor can reach tens of thousands of revolutions per minute, thus achieving a very strong massage effect. In addition, high-speed motors also have high efficiency and stability, which can meet the long-term operation needs of massage chairs.

Working principle of massage chair motor

The working principle of the massage chair motor involves the process of converting electrical energy into mechanical energy, as well as how to achieve massage functions through complex mechanical structures and control systems. The following are the key steps for the operation of the massage chair motor:

Electric energy input: The massage chair motor usually requires the use of AC or DC power to start working. one

Motor body: Once the power is connected, the motor body begins to work, converting electrical energy into mechanical energy.
Reducer: The output speed of the motor body may be very high, so a reducer is needed to reduce the speed to meet the needs of the massage chair.

Transmission shaft: The lower speed output by the reducer is transmitted to the swing arm and other related components through the transmission shaft.

Swing arm: The swing arm is an important component of the massage chair motor, which drives the massage head and swing rod through a transmission shaft to perform massage actions.

Massage head: The swing rod is connected to the massage head, and various massage techniques are achieved through the movement of the swing arm, such as kneading, tapping, massage, and caressing.

Control system: The microprocessor chip inside the massage chair is responsible for coordinating and controlling the operation of various components, and adjusting the status of the massage chair by receiving user operation instructions and feedback signals from sensors.
Sensor technology: Built in sensors (such as weight sensors, temperature sensors, pressure sensors) monitor the user's condition and massage effect, in order to adjust the intensity and intensity of the massage.

Ergonomic design: The design of the massage chair takes into account ergonomic principles and aims to provide users with a comfortable massage experience.

Heating massage principle: Some massage chairs are equipped with heaters, which promote blood circulation and soothe muscles by heating and massaging the head.
