Smart Home Motor 1000-10000RPM 12-24V Pure Copper Massage Chair Motor KG-3816DC24

Smart Home Motor 1000-10000RPM 12-24V Pure Copper Massage Chair Motor

KG-3816DC24

Drawings

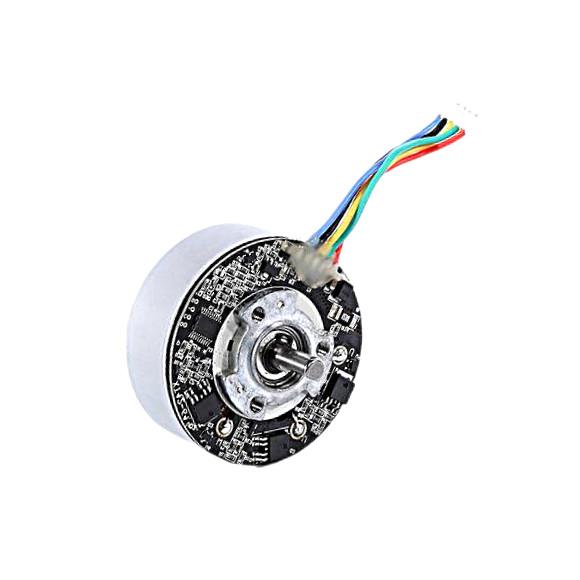

Motor Picture

Performance specifications

Essential details

Efficiency: 68%

Commutation: Brushless

Protect Feature: Explosion-proof

Speed: 1000-10000RPM

Construction: Permanent Magnet

Noise: Low Noise Level

Keywords: BLDC Message Chair Motor

Warranty: 3 Years

Place of Origin: Guangdong, China

Brand Name: GO-GOLD

Model Number: KG-3816DC24

Usage: Message Chair

Type: Brushless Motor

Brushless motor

Brushless motor is a new type of motor, which has the advantages of high power, high efficiency, long service life, and low noise. The brushless motor adopts an electronic controller to control the speed and force, which can achieve various massage methods and forces. In addition, brushless motors also have high efficiency and stability, which can meet the long-term operation needs of massage chairs.

How the massage chair motor works

The working principle of the massage chair motor involves the conversion process of electrical energy into mechanical energy, and how to realize the massage function through complex mechanical structures and control systems. The following are several key steps for the operation of the massage chair motor:

Sensor technology: Built-in sensors (such as weight sensor, temperature sensor, pressure sensor) monitor the user's condition and massage effect in order to adjust the intensity and intensity of the massage.

Ergonomic design: The massage chair is designed with ergonomic principles in mind to provide users with a comfortable massage experience.

Principle of heated massage: Some massage chairs are equipped with heaters, which massage the head through heating to promote blood circulation and soothe muscles.

Electrical energy input: Massage chair motors usually require AC power or DC power to start working.

Motor body: Once the power is turned on, the motor body starts to work and converts electrical energy into mechanical energy.

Reducer: The output speed of the motor body may be very high, so a reducer is needed to reduce the speed to meet the needs of the massage chair.

Drive shaft: The lower speed output by the reducer is transmitted to the swing arm and other related components through the drive shaft.

Swing arm: The swing arm is an important part of the massage chair motor. It drives the massage head and swing rod through the transmission shaft to perform massage actions.

Massage head: The swing rod is connected to the massage head, and various massage techniques can be achieved through the movement of the arm, such as kneading, percussion, massage and stroking.

Control system: The microprocessor chip inside the massage chair is responsible for coordinating and controlling the operation of various components, and adjusting the status of the massage chair by receiving user operating instructions and sensor feedback signals.
