Medical Equipment Motor 12V 1-500RPM Gear Motor For Medical Equipment

Medical Equipment Motor 12V 1-500RPM Gear Motor For Medical Equipment

Lead Time

Product Description


Essential Details

Application: Medical Equipment

Model Number: KG-2542GM12

Warranty: 3 Years

Place of Origin: Guangdong, China

Rated Voltage: 12V

Rated Power: Customized

Continuous Current: 0.3A

Key Word: Gear Motor

Rated Speed: 1-500RPM

Efficiency: Ie 3

Rated Torque: 2Kgf.cm max

Net Weight: 90g

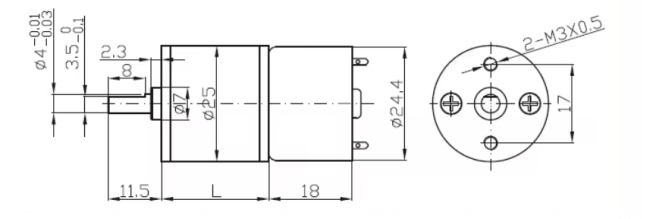

Drawing

Sample

Application

Motors can be constructed in several different physical configurations. In the conventional (also known as inrunner) configuration, the permanent magnets are part of the radially center core. In the outrunner (or external-rotor) configuration, the radial-relationship between the coils and magnets is reversed. The stator coils in the outrunner configuration form the center core of the motor, while the permanent magnets spin within an overhanging rotor which surrounds the core.

Significance Of Back EMF

When the motor is operating then the concept of generator comes into the picture i.e., whenever the flux linking with the conductor changes then there will be an induced emf in the conductor. Here, the flux produced by the poles will be stationary and constant and because of the motor principle, the armature starts rotating.

Because the armature starts rotating the flux produced by the main field will be cut by the armature conductor and therefore there will be an induced emf in the armature conductor according to the generator principle.

We know that the direction of the induced emf produced by the motor is opposite to the applied voltage. But the magnitude of the induced emf will be similar to that of the induced emf of the generator.

The Characteristics Of Gear Reducer

• gear reduction motor according to the national professional standard ZBJ19004 production technical requirements.
• space saving, reliable and durable, high overload capacity.
• low energy consumption, superior performance, reducer efficiency up to 95% or more.
• low vibration, low noise, high energy saving, the selection of high-quality steel material, steel cast iron box, gear surface through high-frequency heat treatment.
• after precision machining to ensure positioning accuracy, all these constitute the gear drive assembly of the gear motor configuration of various types of motors, forming a mechatronics, fully ensure the quality of product use characteristics.
• the product uses the series, modular design idea, has a wide range of adaptability, this series of products have a lot of motor combination installation, installation position and structure scheme, can be selected according to the actual needs of any speed and a variety of structural forms.
