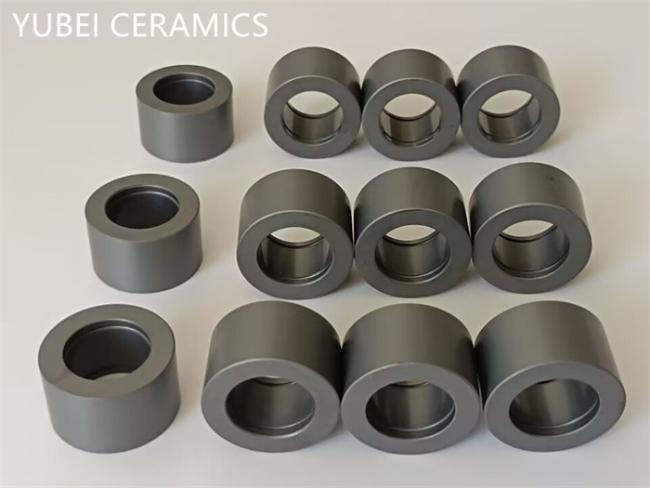

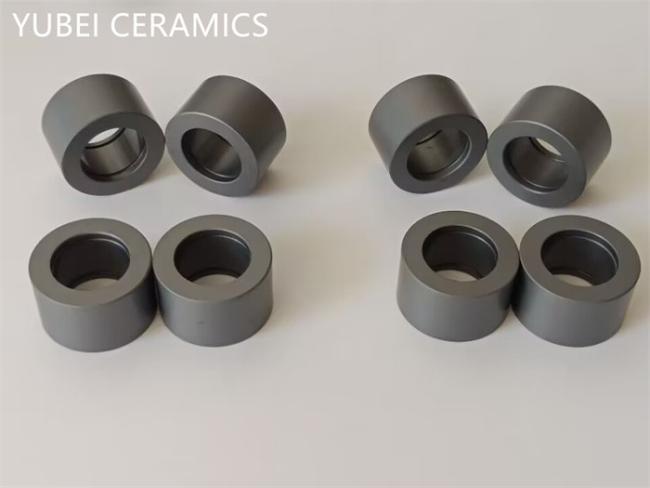

Sic Silicon Carbide Ceramic Bushing Good Wear Resistance For Automobile
Silicon Carbide Ceramic Roller Sintered Sic Sleeves Ceramic Bushing
Silicon carbide ceramic (SiC) materials have many excellent features such as high-temperature strength, good wear resistance, small thermal expansion coefficient, high hardness, thermal shock, chemical corrosion resistance, etc. It is widely used in automobile, mechanical and chemical industry, environmental protection, space technology, electronics, energy and other fields. Silicon carbide ceramic has become an irreplaceable structural ceramic with excellent performance in many industrial fields.
Manufacturing:
| Product Name | silicon carbide ceramic bushing |
| Material | SSiC |
| Sizes | customize by drawings or samples |
| Pressing Process | dry pressing |
| Finish maching | grinding and polishing available |
| Packing | fragile-proof packing |
| FOB port | Shanghai port |
Technical parameters of SSIC:
| Items | Unit | SSIC |
| Volume density | g/cm3 | ≥3.10 |
| Hardness | HRA | ≥92 |
| Compressive strength | MPa | ≥2200 |
| Flexural strength | MPa | ≥400 |
| Silicon carbide content | % | ≥98 |
| Modulus of elasticity | GPa | 400 |
| Thermal conductivity | W/mK | 100-120 |
| Max working temperature | ℃ | 1600 |
| Coefficient of thermal expansion | 1.10-6m/k | 4.0 |
Technical parameters of RBSIC:
| Items | Unit | RBSIC |
| Volume density | g/cm3 | ≥3.03 |
| Hardness | HRA | ≥90 |
| Compressive strength | MPa | ≥2000 |
| Flexural strength | MPa | ≥350 |
| Free silicon content | % | ≤12 |
| Modulus of elasticity | GPa | 350 |
| Thermal conductivity | W/mK | 50-100 |
| Max working temperature | ℃ | 1100 |
