The Introduction of This Project

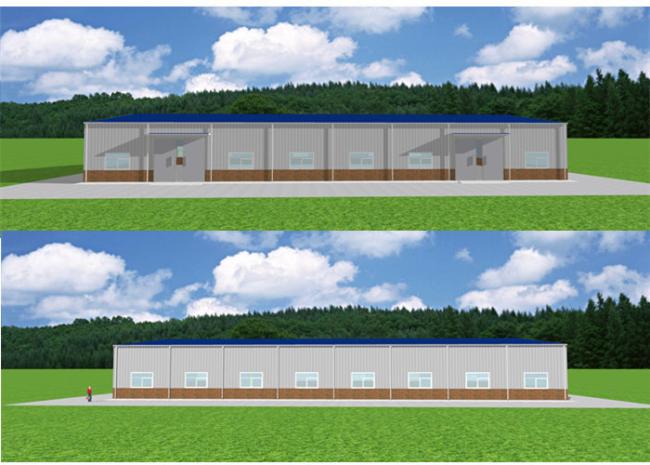

Warehouse 50m*30m*6m

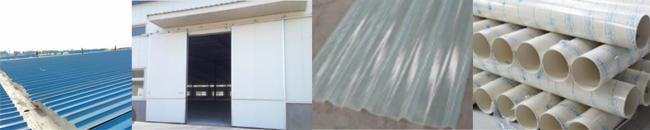

Sliding doors on the walls facilitate cargo transportation.
There is a canopy above each door to play the role of sunshade and rain shelter.

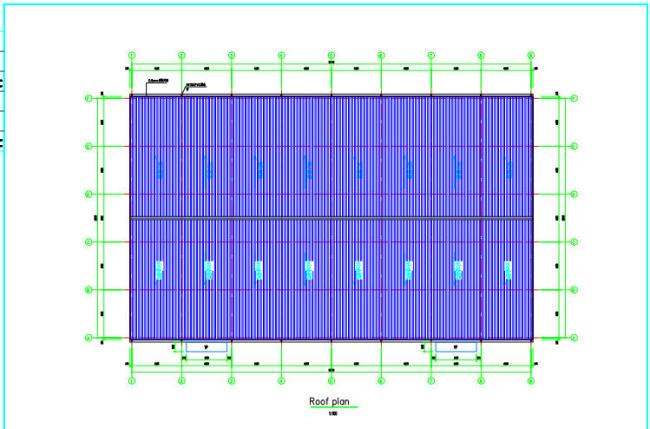

Double slope single ridge
The roof slope is 10%, and the outer gutter + φ110UPVC forms a roof drainage system, which can cope with the rainy season
Windows (aluminum alloy push-pull Windows) are set on both sides of the wall, basically one in each span, to ensure good ventilation and lighting.
The Details of This Project
| Size |
L (M)
|
W (M) | cornice height (M) | ridge height (M) |
|
50
|
30 | 6 | 7.5 | |
| crane |
crane tons (T)
|
running distance (M) | crane quantity (set) | lifting height (M) |
|
No
|
No | No | No | |
| wall |
brick wall height (M)
|
insulation | gutter | downpipe |
|
1.2
|
No |
outer gutter |
φ110UPVC | |
| roof |
insulation
|
skylight | ventilation | canopy |
|
No
|
No | No | Yes, a total of 2 | |
| door & window |
the quantity and size of door (M)
|
the quantity and size of window (M)
|
||
|
EPS sandwich panel sliding door
|
4.5m*4.5m*2 | Aluminum alloy sliding window |
|
|
Advantages of steel construction
Prefab steel Structure workshop buildings are used for industrial production in which all steel structures are painted and then delivered to the project site for installation.
And because the steel structure can be manufactured in the factory and installed on-site, the construction time is significantly reduced. Due to the steel it can dramatically reduce construction waste and is more environmentally friendly. Therefore, it widely used in industrial buildings and civil buildings.
Our company
QINGDAO GUSITE CONSTRUCTION TECHNOLOGY CO., LTD-The headquarter is located in the beautiful coastal city - Qingdao, China.The city where we are located has Qingdao port with a fully automated terminal, which is convenient for the sea transportation of goods.
Our factory has multiple production lines, equipped with steel cutting, shot blasting, stamping, bending, welding, forming equipment. The technology and equipment are advanced, and the steel structure is of good quality and durable.
Possess the foreign contracted project management qualification certificate issued by the Ministry of Commerce of China, CE certification [EN1090 certificate], IS09001 certificate, etc.
Products and construction services have been exported to more than 50 countries in Asia, Africa, North America and South America. In addition, it has established branches in Mozambique, Kenya and other countries, which can undertake steel structure installation projects in Africa.
When it comes to investing in a Workshop Steel Building , we all want perfection, and that’s exactly what you’ll get when you buy with Qingdao Gusite. Our engineering team, combined with our design software, can customize a garage, hanger, warehouse or workshop that suits your needs.
