3D3S Drawing Steel Structure Workshop With Plastic Steel Windows And Sandwich Panel Roof And Wall Sheet
3D3S Drawing Design Steel Structure Workshop With Plastic Steel Windows And Sandwich Panel Roof And Wall Sheet
Product Description:
The Steel Structure Workshop is a versatile and durable metal building workshop that is designed to meet the needs of various industries. With its strong and sturdy construction, this workshop can withstand harsh weather conditions and heavy loads, making it an ideal choice for industrial and commercial use.
- Purlin: The Steel Structure Workshop is equipped with C Section or Z Section Steel purlins, providing excellent structural support and stability.
- Roof and Wall Panel: The workshop features high-quality sandwich panels or color steel sheets for the roof and walls, providing superior insulation and protection against weather elements.
- Door: The workshop is fitted with either a rolled up door or a sliding door, allowing for easy access and efficient use of space.

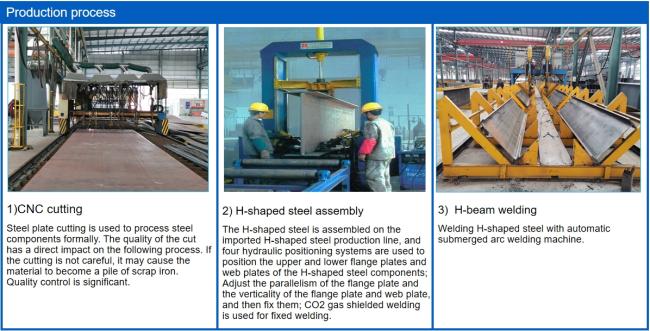

- Processing Service: The Steel Structure Workshop offers a wide range of processing services, including bending, welding, decoiling, cutting, and punching, to meet the specific needs of each client.
- Window: The workshop can be equipped with either aluminum alloy or plastic steel windows, providing natural light and ventilation for a comfortable working environment.
Our team of experienced engineers and designers will work closely with you to create a custom-designed Steel Structure Workshop that meets your specific requirements and budget. With our expertise and state-of-the-art technology, we ensure that every workshop is designed to optimize space, functionality, and efficiency.
Technical Parameters:
| Dimensions | Length | According to load conditations |
| Thickness | Web plate:6-32mm | |
| Height | 200-1200mm | |
| Color | Painted | |
| Building size | Lenght*Width*Eave height | |
| Advantages | 1.Simple Installation and Short Construction Period | |
| 2.Cost-effective | ||
| 3.Environmentally Friendly | ||
| 4.Less Maintenance | ||
| 5.Long Service Life and Wide Uses | ||
| 6.High safety performance | ||
| 7.Manufacture under complete quality control system-ISO9001/ CE | ||

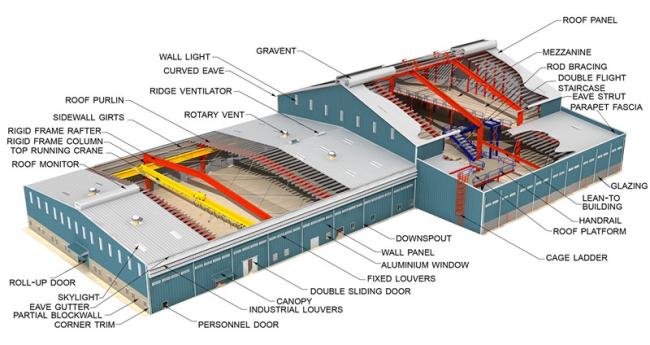

| Main components | Base | Cement and steel foundation bolts |
| Main frame | H beam | |
| Steel material | Structural steel (Q355B, Q235B ) | |
| Purlin | C or Z type | |
| Bracing | angle steel , round pipe | |
| Bolt | High-strength bolt | |
| Roof & wall | Sandwich panel or color corrugated steel sheet | |
| Door | Sliding door, roll-up shutter door ,steel door etc. | |
| Window | Aluminium alloy window | |
| Sheet | 0.5 mm galvanized sheet | |

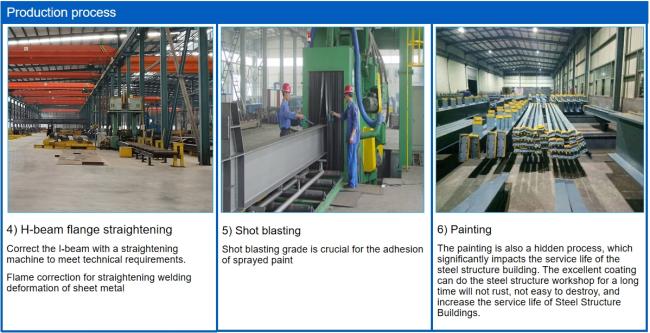

| Surface | Two costs of medium grey paint or hot dip galvanized | |
| Accessories | Skylight belts, ventilators, water down pipe, Stainless steel gutter | |

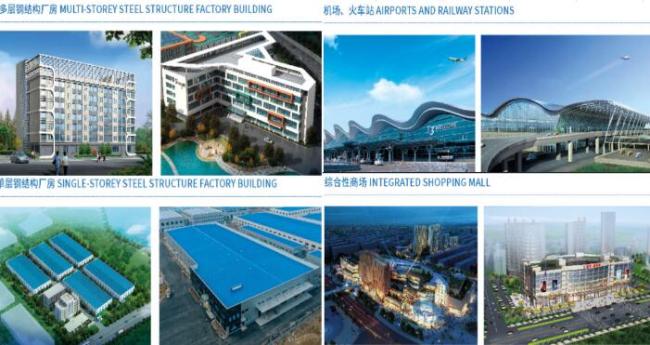

| Usages | 1.Workshop, Warehouse, Plant ,Cold Storage building, Freezing Fish Production Workshop | |
| 2.Showroom Building, Super Market, Laboratories Building, Airport and Hangar | ||
| 3.Steel web frame structure | ||
| 4. Steel H-column and steel H beam | ||
| 5.Portal frame products | ||
| 6.High rise building project | ||
| 7.Other steel structure buildings | ||
| Packing | Main steel frame with steel pallet in 40" HQ | |
| Other steel materilas without steel pallet in 40"HQ | ||
| Drawing | According to drawings or customer's requirements | |
| Design Parameters | 1.Length, width, height, eave height, roof slop | |
| 2.Wind load, snow load, raining condition, seismic category | ||
| 3.Demands for doors and windows | ||
| 4.Other information necessary | ||
Applications:
Our Steel Structure Workshop is designed to meet the ever-growing demand for industrial and commercial spaces. It can be used in various applications such as:
- Metal Building Workshops
- Manufacturing Plants
- Warehouses
- Storage Facilities
- Garages

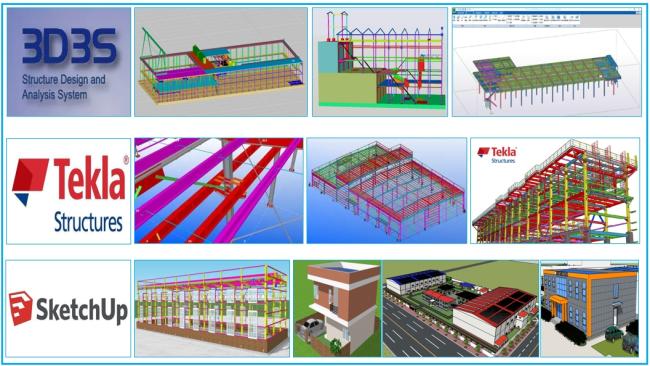

Our Steel Structure Workshop is designed using advanced software such as AutoCAD, PKPM, and 3D3S. This ensures precise and accurate designs, resulting in a stable and durable structure.
We use high-quality Q355/Q235 material for the construction of our workshops, making them resistant to harsh weather conditions and corrosion. Optional insulation can also be added for temperature control and energy efficiency.
Our workshops are pre-engineered and can be easily assembled on-site, reducing construction time and costs. They can also be customized to meet your specific requirements, including size, layout, and additional features.
Interested in our Steel Structure Workshop? Contact us today for a quote and let us help you build your dream space.
Customization:
Our team will work closely with you to understand your specific requirements and provide customized solutions for your steel structure workshop. We offer a range of services including:
- Bending
- Welding
- Decoiling
- Cutting
- Punching
Advantages Of Steel Structure Workshop
Simple Installation and Short Construction Period
The components of the structural steel workshop can be prefabricated in the factory and installed on the site, which greatly reduces the project construction time. The steel structure installation is carried out according to the installation instruction, and it is easy and fast as expected.
Cost-effective
The steel structure workshop building is light in weight and the the construction speed is fast than traditional concrete building, which reduces the basic cost. The steel workshop can be completed and put into production as soon as possible, the overall economic benefits are much better than that of concrete structure buildings.
Environmentally Friendly
Due to the re-usability of the structural steel, the steel workshop building can greatly reduce the construction waste, and it is more environmentally friendly, that is why the structure steel is widely applied nowadays.
Less Maintenance
The steel structure workshop buildings use the economical and durable building materials – steel, which has excellent performance, and the steel workshop is very sturdy and needs less maintenance.
Long Service Life and Wide Uses
The steel structure workshop has long service life and can be widely used in industrial and civil buildings.
Safer
The steel workshop design uses high-strength steel, which can withstand the impact of external bad weather and keep the indoor personnel and equipment safe.
