3KW - 5KW 220V Swimming Pool Water Heater R32 Refrigerant Mini Series
3-5KW 220V R32 Swimming Pool Water Heater Mini Series
- R32 new refrigerant
- True Mini 900+ Pcs for 40HC
- COP up to 5.2
- Removable 38/32mm connection
- Water flow switch available
- 3/4/5 KW available
Develops an innovative, healthy way of life for above-ground pools or spas

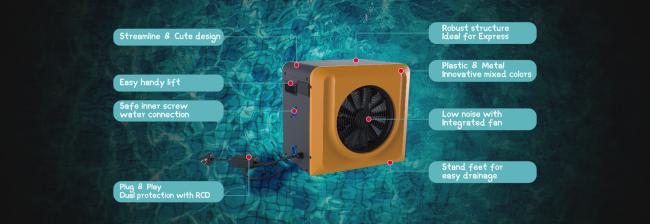

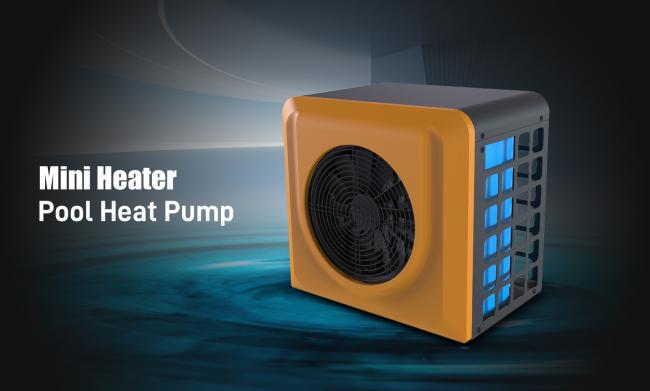

For above-ground pools or spas, the SOLAREAST small pool warmer is perfect. The SOLAREAST small heater warms the pool by drawing heat from the surrounding air. Installation of the SOLAREAST small heater is simple and doesn't require a by-pass. an intuitive control panel. Lightweight and robust casing.
Heating, Cooling & Automatic Modes
Contains heating and cooling and automatic modes, covering a wide range of operating environment temperatures and target water temperatures.
GWP for R32 is 60% lower than for R410a
Solareast is introducing a refrigerant fluid: R32.Compared to R410A, it:
Reduces greenhouse gas emissions by 60%
Allows reduction by 10% of the quantity of gas per kW
Can be recycled easily and is user-friendly
Has zero impact on the ozone layer
Silence Mode

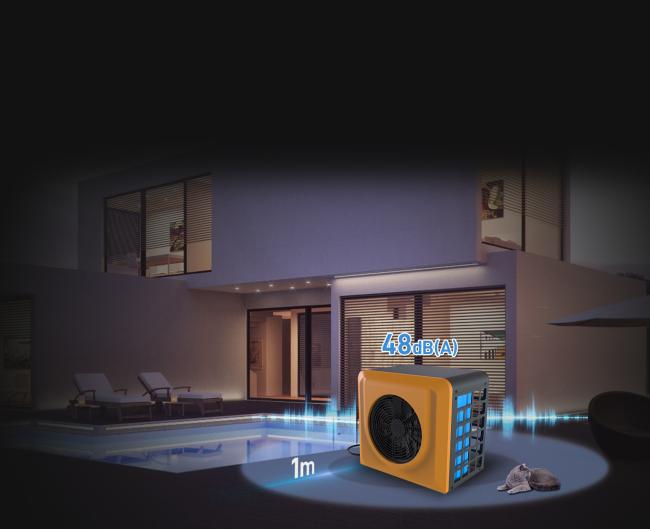

R32 Mini Series Pool Heat Pump can reach 48dB(A) sound pressure at 1m.
In pool heating technology, the components (compressor and fan) function at very low speeds when the temperature is held stable, which reduces the sound level to air movement only (around 48dB).
Everything on one app
The new control panel with wired extension at 20m features the Eco and Power operating modes. The swimming pool heat pump can be controlled remotely through one’s smartphone thanks to the integrated WiFi module.
| Mini Pool Heater | |||
| Model No. | YC-003TB1 | YC-004TB1 | YC-005TB1 |
| * Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | |||
| Heating Capacity (kW) | 3.00 | 4.00 | 5.00 |
| Power Input (kW) | 0.58 | 0.77 | 0.97 |
| COP | 5.17 | 5.20 | 5.17 |
| * Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | |||
| Heating Capacity (kW) | 2.30 | 2.90 | 3.85 |
| Power Input (kW) | 0.55 | 0.71 | 0.92 |
| COP | 4.18 | 4.20 | 4.18 |
| * General data | |||
| Power supply | 220V/1/50Hz | ||
| Max Power Input (kW) | 0.70 | 0.90 | 1.14 |
| Max Current (A) | 3.2 | 4.8 | 5.8 |
| Water Flow Volume (m3/h) | 1.5 | 2.0 | 2.5 |
| Advised pool size m3 | 0~10 | 5~16 | 8~20 |
| Refrigerant | R32 | ||
| Water connection (mm) | 32 or 38 | ||
| Heat Exchanger | Titanium | ||
| Air Flow Direction | Horizontal | ||
| Working temp. range (℃) | 12~43 | ||
| Casing Material | ABS+Metal | ||
| Noise level (dBa) | 45 | 46 | 48 |
| Net Weight (kg) | 18 | 22 | 26 |
| Gross Weight (kg) | 20 | 24 | 30 |
| Net Dimensions (mm) | 380*290*370 | 420*365*440 | |
| Package Dimensions (mm) | 440*355*400 | 480*435*490 | |
