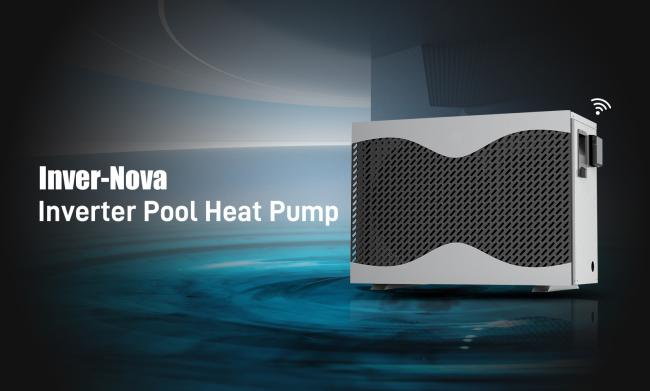

30KW 380V R32 Inverter Pool Heat Pump With Intelligent Controller
30KW 380V R32 Swimming Pool Water Heater Inverter Nova Series
- R32 refrigerant, environmental friendly
- Titanium heat exchanger, corrosion ressistance
- Intelligent controller
- WIFI function included
- heating, cooling & Auto function included
A wide range of models to choose from
Solareast swimming pool heat pumps have a wide range of models for you to choose from which from 7KW to 25KW. You can pick the best one for your pool.
Heating, Cooling & Automatic Modes
Contains heating and cooling and automatic modes, covering a wide range of operating environment temperatures and target water temperatures.
GWP for R32 is 60% lower than for R410a
Solareast is introducing a refrigerant fluid: R32.Compared to R410A, it:
Reduces greenhouse gas emissions by 60%
Allows reduction by 10% of the quantity of gas per kW
Can be recycled easily and is user-friendly
Has zero impact on the ozone layer
Silence Mode
R32 Inver Nova Series Inverter Pool Heat Pump can reach 38dB(A) sound pressure at 1m.
In Inverter technology, the components (compressor and fan) function at very low speeds when the temperature is held stable, which reduces the sound level to air movement only (around 38dB).

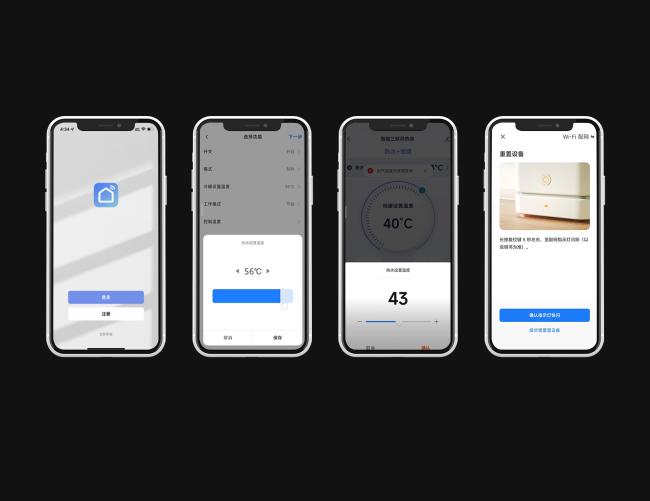

Everything on one app
The new control panel with wired extension at 20m features the Eco Inverter and Power Inverter operating modes. The swimming pool heat pump can be controlled remotely through one’s smartphone thanks to the integrated WiFi module.
| Inver-Nova Pool Heater | ||||||
| Model No. | BYC-007TG1 | BYC-010TG1 | BYC-013TG1 | BYC-017TG1 | BYC-021TG1 | BYC-030TG1 |
| Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | ||||||
| Heating Capacity(kW) | 7.7～1.8 | 10~2.3 | 13.2~3.1 | 17.1~3.9 | 21~4.9 | 28.2~6.9 |
| Power Input(kW) | 1.13～0.11 | 1.45~0.15 | 1.91~0.19 | 2.51~0.25 | 3.09~0.31 | 4.15~0.44 |
| COP | 15.8～6.8 | 15.8~6.9 | 16~6.9 | 15.9~6.8 | 15.8~6.8 | 15.8~6.8 |
| Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | ||||||
| Heating Capacity(kW) | 5.7～1.3 | 7.9～1.8 | 10.1～2.3 | 12.8～2.9 | 15.9～3.6 | 22.1～5.0 |
| Power Input(kW) | 1.16～0.17 | 1.58～0.23 | 2.03～0.30 | 2.57～0.38 | 3.20～0.47 | 4.43～0.65 |
| COP | 7.6～4.9 | 7.6～4.9 | 7.6～4.9 | 7.6～4.9 | 7.6～4.9 | 7.6～4.9 |
| Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out | ||||||
| Cooling Capacity(kW) | 4.2～1.1 | 5.9～1.5 | 7.2～1.8 | 9.4～2.3 | 11.5～2.9 | 15.8～3.9 |
| Power Input(kW) | 1.13～0.17 | 1.57～0.22 | 1.89～0.26 | 2.51～0.34 | 3.16～0.43 | 4.19～0.56 |
| EER | 6.6～3.7 | 6.7～3.7 | 6.9～3.8 | 6.9～3.8 | 6.9～3.7 | 6.9～3.8 |
| Power supply | 220～240V / 1/ 50 Hz | |||||
| Max Power Input(kW) | 1.2 | 1.6 | 2.1 | 2.6 | 3.2 | 4.4 |
| Max Current(A) | 5.5 | 7.3 | 9.6 | 11.9 | 14.5 | 20 |
| Working temperature range(℃) | -15～43 | |||||
| Noise level 1m dB(A) | 38~48 | 39~51 | 41~52 | 42~54 | 44~55 | 46~57 |
| Noise level 10m dB(A) | 19~28 | 19~31 | 21~32 | 22~34 | 24~35 | 26~37 |
| Inver-Nova Pool Heater | ||||||
| Model No. | BYC-007TG1 | BYC-010TG1 | BYC-013TG1 | BYC-017TG1 | BYC-021TG1 | BYC-030TG1 |
| Heating Capacity at Air 26℃, Humidity 80%, Water 26℃ in, 28℃ out | ||||||
| Heating Capacity(kW) | 7.7～1.8 | 10~2.3 | 13.2~3.1 | 17.1~3.9 | 21~4.9 | 28.2~6.9 |
| Power Input(kW) | 1.13～0.11 | 1.45~0.15 | 1.91~0.19 | 2.51~0.25 | 3.09~0.31 | 4.15~0.44 |
| COP | 15.8～6.8 | 15.8~6.9 | 16~6.9 | 15.9~6.8 | 15.8~6.8 | 15.8~6.8 |
| Heating Capacity at Air 15℃, Humidity 70%, Water 26℃ in, 28℃ out | ||||||
| Heating Capacity(kW) | 5.7～1.3 | 7.9～1.8 | 10.1～2.3 | 12.8～2.9 | 15.9～3.6 | 22.1～5.0 |
| Power Input(kW) | 1.16～0.17 | 1.58～0.23 | 2.03～0.30 | 2.57～0.38 | 3.20～0.47 | 4.43～0.65 |
| COP | 7.6～4.9 | 7.6～4.9 | 7.6～4.9 | 7.6～4.9 | 7.6～4.9 | 7.6～4.9 |
| Cooling Capacity at Air 35℃, Water 29℃ in, 27℃ out | ||||||
| Cooling Capacity(kW) | 4.2～1.1 | 5.9～1.5 | 7.2～1.8 | 9.4～2.3 | 11.5～2.9 | 15.8～3.9 |
| Power Input(kW) | 1.13～0.17 | 1.57～0.22 | 1.89～0.26 | 2.51～0.34 | 3.16～0.43 | 4.19～0.56 |
| EER | 6.6～3.7 | 6.7～3.7 | 6.9～3.8 | 6.9～3.8 | 6.9～3.7 | 6.9～3.8 |
| Power supply | 220～240V / 1/ 50 Hz | |||||
| Max Power Input(kW) | 1.2 | 1.6 | 2.1 | 2.6 | 3.2 | 4.4 |
| Max Current(A) | 5.5 | 7.3 | 9.6 | 11.9 | 14.5 | 20 |
| Working temperature range(℃) | -15～43 | |||||
| Noise level 1m dB(A) | 38~48 | 39~51 | 41~52 | 42~54 | 44~55 | 46~57 |
| Noise level 10m dB(A) | 19~28 | 19~31 | 21~32 | 22~34 | 24~35 | 26~37 |
