3Pin 5200RPM Server Cooling Fan Heatsink VC-AL4009(LE) 40x41x9.8mm
Based on the information provided by the link you shared, the product appears to be a GPU cooler. Specifically, it is an AIDECOOLR VC-AL4009-LE cooler with a heatsink size of 40x41x9.8mm and a 12V power supply.
The product is designed to help dissipate heat generated by the GPU during operation, which can help improve performance and prevent damage caused by overheating. The heatsink is made from durable materials, including aluminum, and is designed to be compact and easy to install.
The product is compatible with a variety of different GPU models and can be used for both gaming and professional applications. It is important to note that this product is designed specifically for GPUs, and may not be suitable for use with other types of hardware.
Overall, if you are in need of a GPU cooler to help keep your hardware running smoothly and prevent overheating, this product might be worth considering. However, it's important to do your own research and make sure that this product is compatible with your specific hardware before making a purchase.

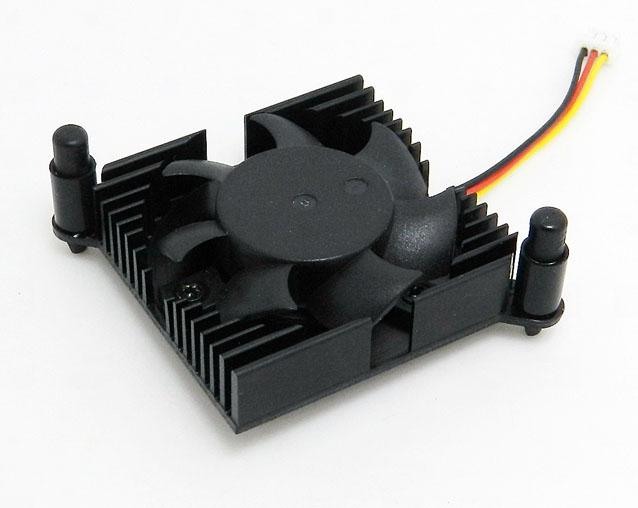

Picture:
Spec.:
Mode1 No. |
VC-AL4009(LE) | |
| 2 | Heat Sink | Aluminium (Black) |
| 3 | Mounting Hole | 59MM |
| 4 | Heatsink Dimension | 41MM(L)x 40.3MM(W) x 10MM(H) |
| 5 | Fan Dimension | 40*40*1OMM |
| 6 | Voltage | 12V(10.8-13.2V) |
Start voltage |
6.0V (POWER ON/OFF) | |
| 8 | Power consumption |
0.72W |
| 9 | Rated current |
0.06A(Safety) |
| 10 | Speed |
5,200主10%R.P.M. At 25℃,After 3~5 minutes rotating (Fan alone). |
| 11 | Max air flow |
5.8CFM |
| 12 | Air Pressure |
2.7MM-H2O |
| 13 | Noise |
24Db-A Microphone Fan 1M FreeAir |
| 14 | Thermal Tape | Thermflow T725(35x35mm) |
Electrical Specifications:
| Insulation Resistance | 10MΩ/between unshackled wire and frame at 500VDC/min |
| Dielectric Strength | 5Ma Max./Measured between lead wire(+)and frame at 500VAC/min |
| Rotating Direction | Anti-Clockwise |
| Polarity Protect | Circuit is protected when VCC&GND are exchanged |
| No. of pole | 4Poles |
Environmental Specifications
| Operating Temp Range | Temperature:-10℃~+70℃ Humidity:35%~85%RH |
| Store Temperature | Temperature:-40℃~+70℃ Humidity:35%~85%RH |
| Thermal Shock | Standard:MIL-STD 202F Method 107D,Condition D |
| Insulation Shock | UL:Class A |
Fan Dimension:
Heatsink Dimensions:
