CPU VGA Card PC Radiator Fan 40x40mm VC-AL4008 Sturdy Multipurpose
Graphic card radiator fan VC-AL4008 ,VGA card cooler , 40x40mm heatsink and fan
Based on the information provided by the link you shared, the product appears to be a radiator fan for a graphic card. Specifically, it is a VC-AL4008 VGA card cooler with a 40x40mm heatsink and fan.
The product is designed to help dissipate heat generated by a graphic card during operation, which can help improve performance and prevent damage caused by overheating. The fan is powered by a 12V DC power source and has a maximum airflow of 4.2 CFM (cubic feet per minute).
The product is made from durable materials, including an aluminum heatsink and a plastic fan body, and is easy to install.
It is compatible with a variety of different graphic card models and can be used for both gaming and professional applications.
Overall, if you are in need of a VGA card cooler to help keep your graphic card running smoothly, this product might be worth considering. However, it's important to do your own research and make sure that this product is compatible with your specific hardware before making a purchase.
Appearance:
Specifications.:
Mode1 No. |
VC-AL4008 | |
| 2 | Heat Sink | Aluminium (Black) |
| 3 | Mounting Hole | N/A |
| 4 | Heatsink Dimension | 4OMM(L) x 39.8MM(W)x11.5MM(H) |
| 5 | Fan Dimension | 40*40*08MM |
| 6 | Voltage | 12V (10.8-13.2V) |
Start voltage |
6.0V (POWER ON/OFF) | |
Power consumption |
0.72W | |
| 9 | Rated current |
0.06A(Safety) |
| 10 | Speed |
4,500+10%R.P.M. At 25C,After 3~5 minutes rotating (Fan alone). |
| 11 | Max air flow |
4.5CFM |
| 12 | Air Pressure |
1.5 MM-H2O |
| 13 | Noise |
23Db-A Microphone 1M- Free Air |
| 14 | Thermal Tape | T418 |
Plasticmaterial/Blade/Frame Housing Of Insulation |
a,PBT b.Black frame& Blade 11 blades |
|
| (Bearing) | 2-Ball Bearing | |
| IC | TELFORD 276/277 |
|
P.C.B |
a; Single-layer PCB |
|
ENAMELED WIRE |
2UEW | |
SILICON STEEL STRIP |
H23 | |
| 7 | (Lead Wire) | UL246830# L=67 MM (+)Red(-)Black (FG)Yellow |
| 8 | (Connector) | JST ZHR-3 |
Fan Dimensions:

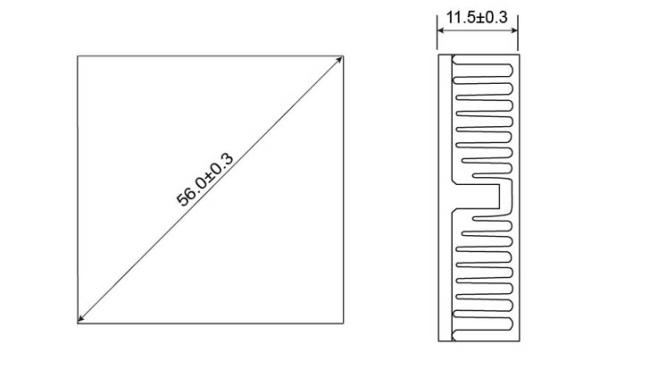

Heatsink Dimensions:
