Orchards Agriculture Farm Tractor 4*4 Wheel Drive High Efficiency HT304-Y
HT304-Y Agriculture Farm Tractor 4*4 Wheel Tractor With CE
Description of Agriculture Farm Tractor
This tractor is specially designed by our company for orchards, greenhouses, farmland.
Its chassis is compact and the overall size is relatively small, especially the height of the tractor is relatively short, which is very suitable for working in low and narrow spaces.
Features of Agriculture Farm Tractor
1. Matched with (4+1)*2 gearbox,meet the needs of different farm work;
2. Vehicle components using electrophoresis coating treatment process, corrosion-resistant, anti-aging, non-fading;
Technical parameters of Agriculture Farm Tractor :
| Technic-specification | |
| Driven model | 4WD |
| Engine | KM385BT |
| Engine power | 30 |
| Emission Standards | Ⅱ stages |
| Clutch | Single-stage type |
| PTO speed | 540/720rpm |
| Max.rated drawing power | ≥6.5KN |
| weight | 1290 |
| Steering | hydraulic steering |
| Gears | 8+2 |
| Speed | 2.06-31.30 后退2.71-12.52 |
| Tires size | 6.5-16/11.2-24 |
| Wheel Base | 1700mm |
| (L*W*H)mm Overall dimension | 3350*1300*2000mm |
| Optional equipment | Front ballast |
| Rear ballast(one layer) | |
| ROPS | |
| Canopy | |
| 1 groups of hydraulic output | |
| 2 groups of hydraulic output | |
| Air compressor | |
| External Forced lifter | |
| Swing traction | |
| Fan cab | |
| Heating cab | |
| Tires 6.5-16/11.2-24 | |
| Iron frame packaging | |
Adhibitions of Agriculture Farm Tractor
orchards, greenhouses, farmland.

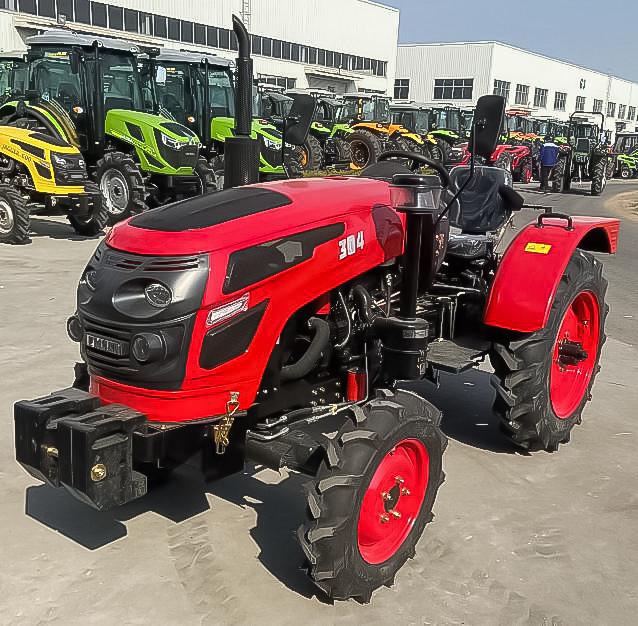

Images of Agriculture Farm Tractor
