333 Series Single Valve Float Shoe Casing Float Shoe Oil And Gas

Price Negotiable

Price: Details pls contact our staff

MOQ: MOQ as per type requirements

Delivery Time: Delivery ex-mill details need to discuss

Brand: SWS

Product Description

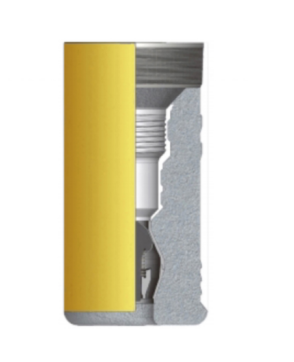

333SERIES STAB-IN AND LATCH-IN FLOAT SHOE SINGLE VALVE

(STAB-IN LATCH-IN TYPE ) 333 SERIES FLOAT SHOE SINGLE VALVE , CEMENTING TOOLS,FLOAT EQUIPMENT, WELL BORE TOOLS

ADVANTAGES AND MAIN FEATURES

1- 100% PDC drillable including the components

2- Push in-rotate out operation

3- Reusable drill pipe latch-in stinger

4- Optional latch-in drill pipe wiper plugs

Guide shoe, Float shoe& Float collar Dimensions							Casing weight range
Size(casing O.D.)		Type	O.D.		Drillout I.D.		Float&Guide shoes		Float collars
in	mm		in	mm	in	mm	lb/ft	kg/m	lb/ft	kg/m
4-1/2.	114.3	Std	5	127	4	101.6	9.5-13.5	14.15-20.11	9.5-13.5	14.15-20.11
4-1/2.	114.3	P.G.	5	127	3.895	98.93	11.6-15.1	17.28-22.49	11.6-15.1	14.15-20.11
5	127	Std	5.56	141.22	4.408	111.96	13-18	19.36-26.81	13-18	19.36-26.81
5	127	P.G.	5.56	141.22	4.389	111.48	13-18	19.36-26.81	13-18	19.36-26.81
5-1/2.	139.7	Std	6.05	153.67	4.907	124.64	14-23	20.85-34.26	14-23	20.85-34.26
5-1/2.	139.7	P.G.	6.05	153.67	4.787	121.59	17-23	25.32-34.26	17-23	25.32-34.26
6-5/8.	168.28	Std	7.39	187.1	5.944	150.98	20-32	29.79-47.66	20-32	29.79-47.66
6-5/8.	168.28	P.G.	7.39	187.1	5.944	150.98	20-32	27.79-47.66	20-32	27.79-47.66
7	177.8	Std	7.66	194.56	6.351	161.32	20-35	29.79-52.13	20-32	29.79-47.66
7	177.8	P.G.	7.66	194.56	6.27	159.26	23-38	34.26-56.6	23-38	34.26-56.6
7-5/8.	193.7	Std	8.5	215.9	6.864	174.35	26.4-47.1	39.32-70.16	26.4-39	39.32-58.09
7-5/8.	193.7	P.G.	8.5	215.9	6.864	174.35	26.4-47.1	39.32-70.16	26.4-39	39.32-58.09
8-5/8.	219.1	Std	9.63	244.6	7.992	203	24-49	35.75-72.99	24-49	35.75-72.99
8-5/8.	219.1	P.G.	9.63	244.6	7.845	199.26	32-49	47.66-72.99	32-49	47.66-72.99
9-5/8.	244.5	Std	10.63	270	8.865	225.17	32.3-53.5	48.11-79.69	32.3-53.5	48.11-79.69
9-5/8.	244.5	P.G.	10.63	270	8.699	220.96	40-71.8	59.58-106.85	40-58.4	59.58-86.99
10-3/4.	273.1	Std	11.75	298.45	10.056	255.42	32.75-65.7	48.78-97.86	32.75-55.5	48.78-82.67
10-3/4.	273.1	P.G.	11.75	298.45	9.77	248.16	51-71.1	75.96-105.9	51-71	75.96-105.9
11-3/4.	298.5	Std	12.75	323.85	11.02	279.91	42-71	62.56-105.75	42-60	62.56-89.37
11-3/4.	298.5	P.G.	12.75	323.85	10.77	273.56	54-71	80.43-105.75	54-71.1	80.43-105.81
13-3/8.	339.7	Std	14.38	365.25	12.579	319.51	48-72	71.5-107.24	48-72	71.5-107.24
13-3/8.	339.7	P.G.	14.38	365.25	12.579	319.51	48-86	71.5-128.1	48-72	71.5-107.24
16	406.4	Std	17	431.8	15.124	384.15	65-109	96.82-162.36	65-97	96.82-144.36
18-5/8.	473.1	Std	20	508	17.755	450.98	87.5-139	130.33-206.85	87.5-106	130.33-157.75
20	508	Std	21	533.4	19.125	485.78	94-133	140.01-198.1	94-106.5	140.01-158.63
