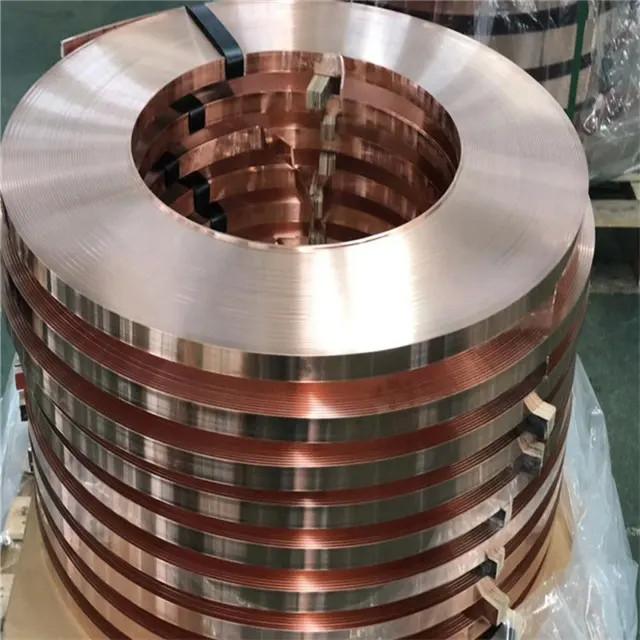

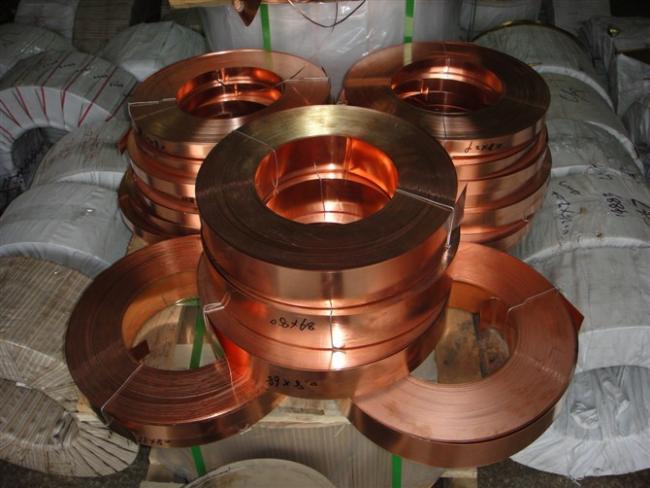

Rounded 2mm Copper Strip Roll ASTM AISI Standard
Ingredients of Copper Strip
Copper strips are typically made from pure copper or copper alloys, which are mixtures of copper and other metals. The composition of copper alloys can vary depending on the specific application and the desired properties of the strip.
Some common copper alloys used in the production of copper strips include:
Brass: Brass is an alloy of copper and zinc, and it is commonly used in applications where strength, corrosion resistance, and aesthetics are important.
Bronze: Bronze is an alloy of copper and tin, and it is commonly used in applications where strength, durability, and resistance to wear and tear are important.
Cupronickel: Cupronickel is an alloy of copper, nickel, and sometimes other metals, and it is commonly used in marine applications due to its excellent resistance to corrosion.
Phosphor bronze: Phosphor bronze is an alloy of copper, tin, and phosphorus, and it is commonly used in electrical applications due to its excellent electrical conductivity and resistance to corrosion.
Beryllium copper: Beryllium copper is an alloy of copper and beryllium, and it is commonly used in applications where high strength, conductivity, and durability are important.
Overall, the specific ingredients used in the production of copper strips can vary depending on the specific application and the desired properties of the strip.
| Item | Copper Strip / Copper Tape | |
| Standard |
JIS H3100-2006 ,ASTM B152M-06,GB/T 2040-2008,ROCT 495-92,EN 1652-98,ASTM B171M-04, |
|
| Material |
C12300,C1020P,C10100,C10400,C10700,C10200,T2,C1100P,C10500,M1,CuETP,TP1, C1201P, ,C1221P,C1200,C12200,C14200,C23000P,H62,C2801P,C36500 |
|
| Thickness | 0.01mm~20mm | |
| Width | 1mm~2500mm | |
| Length | Random size and customize or as required | |
| Surface | mill,polished,bright,oiled,hair line,brush,mirror,sand blast,or as required | |
| Package | Standard export seaworthy or as customers' requirements | |
| Application |
Copper coil can be made to do all sorts of deep drawing and bending stress components,such as manufacturing pins ,rivets,gasket,nuts,conduits,the barometer spring,screen,radiator parts, etc |
|
| Export to |
Ireland,Singapore,Indonesia,Ukraine,Saudi,Arabia,Spain,Canada,USA,Brazil,Thailand,Iraq, ,Korea,Argentina,India,Egypt,Oman,Malaysia,Peru,Vietnam,Mexico,etc |
|
| Material | China GB/T | Japan JIS | German DIN | American ASTM | UK EN |
| TU0 | C1011 | -- | C10100 | C110 | |
| TU1 | C1020 | OF-CU | C10200 | C103 | |
| TU2 | C1020 | OF-CU | C10200 | C103 | |
| T1 | C1020 | OF-CU | C10200 | C103 | |
| T2 | C1100 | SE-CU | C11000 | C101 | |
| TP1 | C1201 | SW-CU | C12000 | -- | |
| TP2 | C1220 | SF-CU | C12000 | -- |
| Composition(%) | ||||
| TU1 | Cu | P | O | Other |
| TU2 | 99.97 | 0.002 | less than 0.002 | balance |
| T1 | 99.95 | 0.002 | less than 0.003 | balance |
| T2 | 99.9 | - | - | balance |
| TP1 | 99.9 | 0.004-0.012 | - | balance |
| TP2 | 99.9 | 0.015-0.040 | - | balance |
| C10200 | 99.95 | 0.001-0.005 | - | balance |
| C11000 | 99.9 | - | - | balance |
| C12000 | 99.9 | 0.004-0.012 | - | balance |
| C12200 | 99.9 | 0.015-0.040 | - | balance |
Quality Control
Production Processing
Packing & Delivery
FAQ
A:Yes, we are manufacturers. We have our own factory and our own company. I believe we will be the most suitable supplier for you.
A: Sure, we welcome you to visit our factory , check our production lines and know more about our strength and quality.
A: Yes, we have ISO, BV, MTC, certifications and our own quality control laboratory.Third party testing services are also available
A: Yes, we have designated sea freight and railway freight forwarders with decades of experiences and we get the best price with earlist vessel and professional service.
A: Generally it is 7days if we have the exact goods in our stock. If not, it will take around 15-20 days to get goods ready for delivery.
A: We are glad to provide free samples to you, but we do not offer the freight.
A: We provide after-sale service and offer 100% guarantee on our products.
Get in Touch
Have questions about our products or want to discuss a custom order? Our team is ready to help you.
