32inch outdoor digital signage IP66 waterproof full optical bonding type 3000nits with wall mounted
Price:
710-790 usd/piece
MOQ:
1 piece
Delivery Time:
20-30 working day
Brand:
Fengshi/OEM customization
Product Description
32inch Outdoor Digital Signage IP66 Waterproof Full Optical Bonding type 3000nits with Wall Mounted
Product Description
- High brightness 1000nits-3000nits sunlight readable, with 24/7 operation
- Automatic dimming sensor
- Commercial grade 110℃ high Tni panel, with LG/BOE OC panel
- Full lamination process in front of the screen
- IP66 weatherproof protection level
- Intelligent temperature control, cooling fan

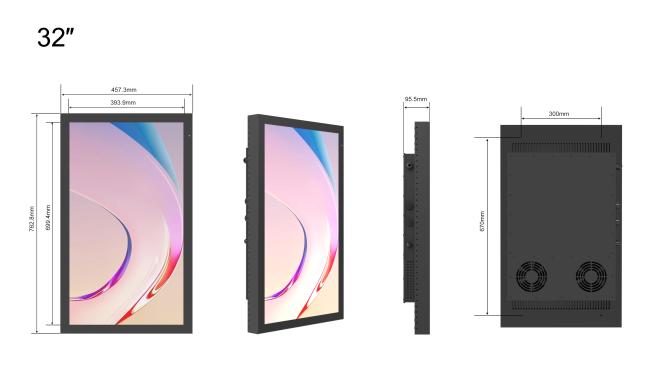

Product Drawing
Technical Parameters
| Parameter | Specification |
|---|---|
| Diagonal Size | 32 inch |
| Resolution | 1920x1080 (16:9) |
| Aspect Ratio | 16:9 |
| Active Display Area(mm) | 393.9(H) x 699.4(V) |
| Brightness(Typ.) | 3,000 cd/m2 |
| Contrast Ratio | 1,000:1 |
| Viewing Angle(H/V) | 178/178 |
| Display Colors | 8 bit - 16.7M |
| Color Gamut | 72% |
| Operation Hour | 7*24 |
| Haze | 2% |
| Dynamic C/R | 100,000:1 |
| Speaker Type | N/A |
| Power Supply | AC 100 - 240 V~ (+/- 10 %), 50/60 Hz |
| Max[W/h] | 160 |
| Dimension (mm) | 860*560*220mm |
| Weight (kg) | 26.0kg |
| Mounting Hole | 300 x 670 (Basic) |
| Protection Glass | 5mm |
| Bezel Width (mm) | Even 31.7 mm |
| Operating Temperature | -30℃~ 50℃ |
| Humidity | 10~100% (Non-condensing) |
| IP Certificate | IP56 |
| Processor Coretex | Rockchip RK3288 Coretex A17 1.8GHz |
| Memory Interface | HYNIX DDR3 2GB |
| Storage | 8GB |
| Operating System | Android 7.1 |
| Multimedia Support | |
| Video Decoder | MPEG-1/2/4, H.264, WMV, WKV, TS, FLV |
| Image Formats | JPEG, PNG, BMP, PNG, GIF |
| Audio Format | MP3 |
Frequently Asked Questions
Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located in Shenzhen.
Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18 months (Non-artificial damages) from the date of delivery.
Q: Do you provide ODM/OEM or customized service?
A: We're BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements. In order to support different customers, we are able to supply:
- High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
- Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA, DVI, USB...)+Touch optional
- Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+temperature control board+housing
- Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will pass through strict quality inspection.
Q: What certifications you have?
A: The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
Q: What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃; industrial grade goes black over 105 or 110℃.
Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3 days, bulk order shipped within 2 weeks.
