86inch 2000nits 4K Large IP55 Waterproof Outdoor TV Wall Monut
86inch 2000nits 4K Large IP55 Waterproof Outdoor TV Wall Monut
Description
1. High brightness 1500nit -2000nits sunlight readale, deliver bright and brilliant messages, built for the outdoors.
2. Automatic dimming sensor, the brightness can be adjusted accroding to the environment brightness.
3. Application: Home, bar, garden usage at evening
4. IP55 waterproof protection level
5. Configurated with Google TV board, it includes HDMI-in, USB, LAN RJ45, WiFi and etc,.
6. Natural heat dissipation, fanless design

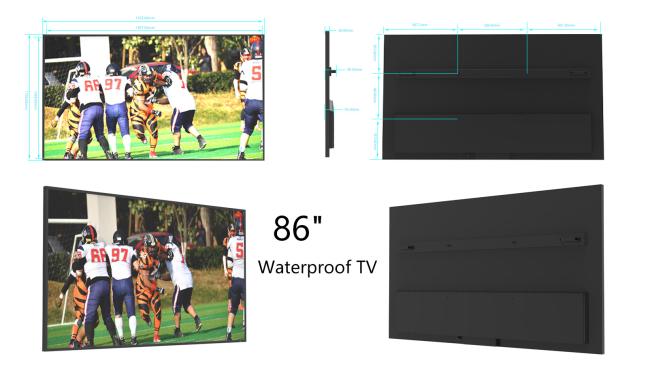

Drawing
Parameter
|
Diagonal Size |
86inch |
|
Resolution |
3840x2160p (16:9) |
|
Pixel Pitch(mm) |
0.630 x 0.630 |
|
Active Display Area(mm) |
1895.0*1066.0mm |
|
Brightness(Typ.) |
2,000 cd/m2 |
|
Contrast Ratio |
1,200:1 |
|
Viewing Angle(H/V) |
178/178 |
|
Display Colors |
8 bit - 16.7M |
|
Color Gamut |
72% |
|
Operation Hour |
7*24 |
|
Haze |
2% |
|
Dynamic C/R |
100,000:1 |
|
Speaker Type |
15w 8Ω*2 |
|
Power Supply |
AC 100 - 240 V~ (+/- 10 %), |
|
50/60 Hz |
|
|
Weight (kg) |
58.0kg |
|
77.0kg |
|
|
VESA hole |
600*400,M8 |
|
Bezel Width (mm) |
20.0mm |
|
Operating Temperature |
-10℃~ 50℃ |
|
Humidity |
10~100% (Non-condensing) |
|
IP Certificate |
IP55 |
|
Processor Coretex |
ARM Cortex A55*4 @MAX1.53GHz |
|
Memory Interface |
DDR3 2GB |
|
Storage |
64GB |
|
Operating System |
Google TV board |
|
Interface |
HDMI-in, USB, LAN RJ25, Wifi, Bluetooth |
|
Multimedia |
AVI,MP4,MPG,MKV,MOV,DAT, VOB,RM,RMVB |
|
MP3, M4A, AAC,WMA |
|
|
JPG, BMP, PNG |
FAQ
1.Q: Are you a manufacturer or trading company?
A: We are a professional manufacturer specialized in LCD panel/LCM since 2016 located in Shenzhen.
2. Q: How long is the warranty?
A: Our officially promised warranty time is 1 year or 18months(Non-artificial damages) from the date of
delivery.
3. Q: Do you provide ODM/OEM or customized service?
A: We’re BOE High-bright LCD ODM factory, OEM/ODM are available based on your requirements.
In order to support different customers, we are able to supply:
(1) High Brightness LCD Panel: LCD panel+led driver board+auto dimming sensor
(2) Open Frame LCD Displays: LCD Panel+PSU+AD board(optional interface, eg: HDMI, VGA, DVI,
USB...)+Touch optional
(3) Window Facing Displays: LCD Panel+PSU+AD board (network board optional)+fan system+tem-
perature control board+housing
(4) Full Outdoor Displays: customized. eg: touch function, IP55/IP65 etc.
4. Q: What brand of OC do you use?
A: Original LG/SAMSUNG/AUO/BOE etc. A or A+ grade OC, we can guarantee each display will pass
through strict quality inspection.
5. Q:What certifications you have?
A:The CE-EMC Certificate of Conformity, ISO certification, FCC certification.
6.Q:What is the temperature when the screen surface goes black?
A: Normal grade goes black over 68℃；industrial grade goes black over 105 or 110℃.
7.Q: What is the MOQ?
A: Sample testing is acceptable, the price is negotiable for bulk order.
8.Q: When will you delivery?
A: High brightness LCD panel sample order shipped in 3days, bulk order shipped within 2 weeks.
