Hanging FM200 Fire Extinguishing System Without Residue For UPS Room

Hanging type FM-200 fire extinguisher is a preset and independent fire extinguishing system. It is easily wall or ceiling mounted in the protected area to directly put out the fire, without pipe network distribution.

The electromagnetic actuated hanging extinguisher has two activation methods. When control panel receives signal from smoke/heat detector of fire alarm, it will send signal to electromagnetic extinguisher automatically which opens container valve, so to discharge fire extinguishing agent. It also could be activated by manual control button.

Another version:

Hanging type FM-200 fire extinguisher

Preset and independent
It is easily wall or ceiling mounted in the protected area to directly put out the fire, without pipe network distribution.
It has two activation methods: automatically send the signal to control panel for releasing the agent by electricity and manual control mode.

Parameters

Below data refers to regular temperature at 20 centigrade and atmospheric pressure at 1 bar. The max coverage would vary a little from the ambient temperature and pressure on the real condition.

Components

One spherical pressure tank, fire extinguishing agent(HFC-227ea, same as FM200), hanging mounting, thermal sensor(one little glass tube filled with liquid whose volume will be changed by temperature), pressure switch, stainless steel pipe and nozzle.

Packages

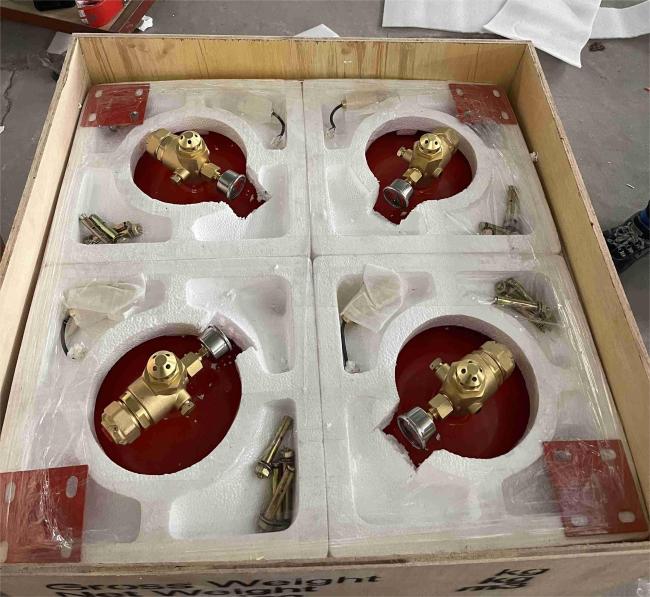

We always pack it with polyfoam first and then put it into a wooden case. Sometimes, in order to meet with customers or the safety requirement, we will make a pallet for the goods.
